Deploy the Cloud NGFW in a vWAN

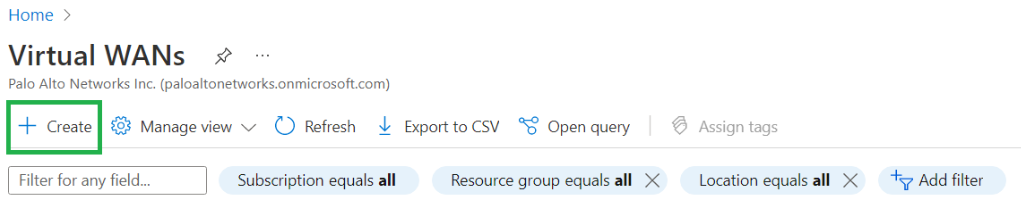

1. Log in to the Azure portal and search for Virtual WAN. Click Create to create a Virtual WAN Service.

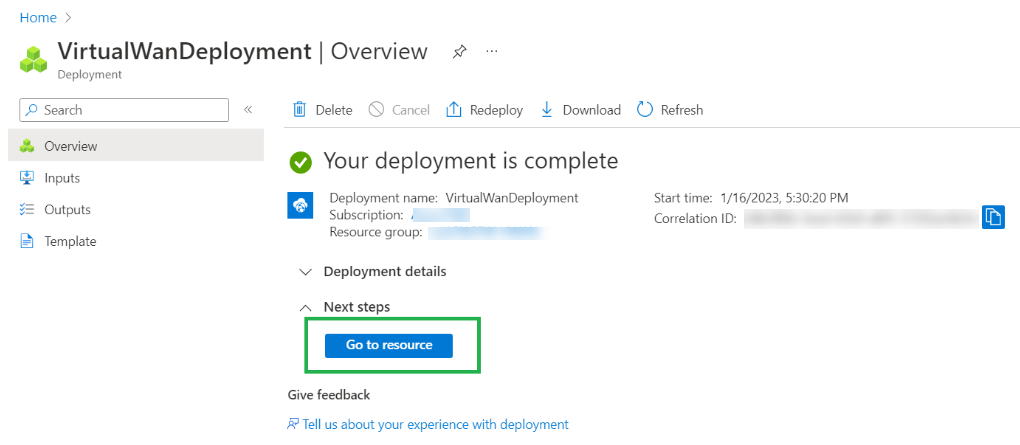

2. After successfully creating the Virtual WAN service, click Go to resource.

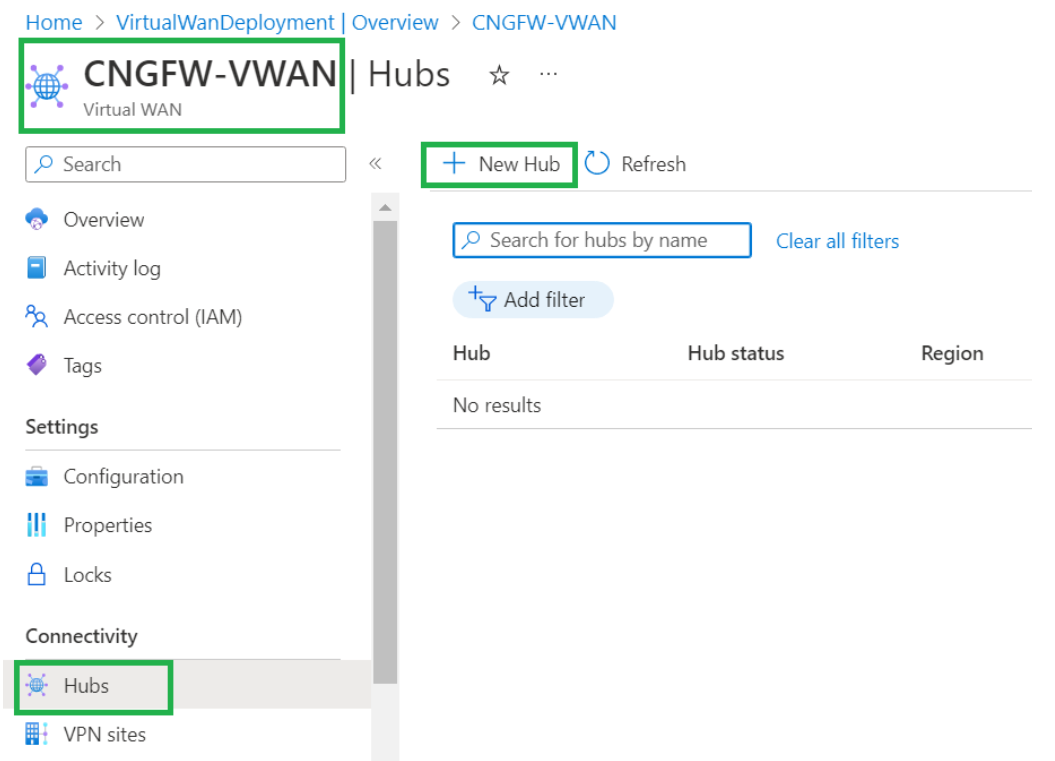

3. Add a hub to the Virtual WAN you created. Select Connectivity > Hubs. Click New Hub.

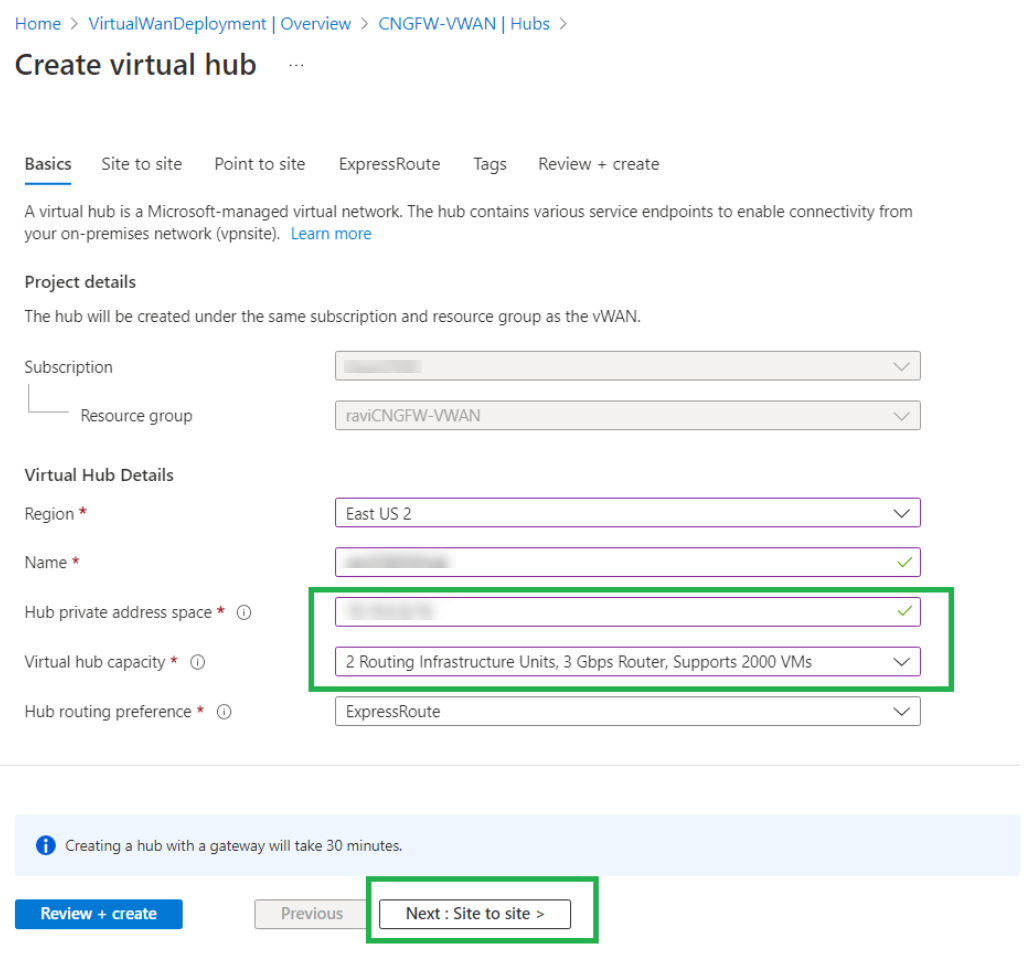

4. Configure Virtual Hub Details. Specify the hub private address and virtual hub capacity, then click Next: Site to Site.

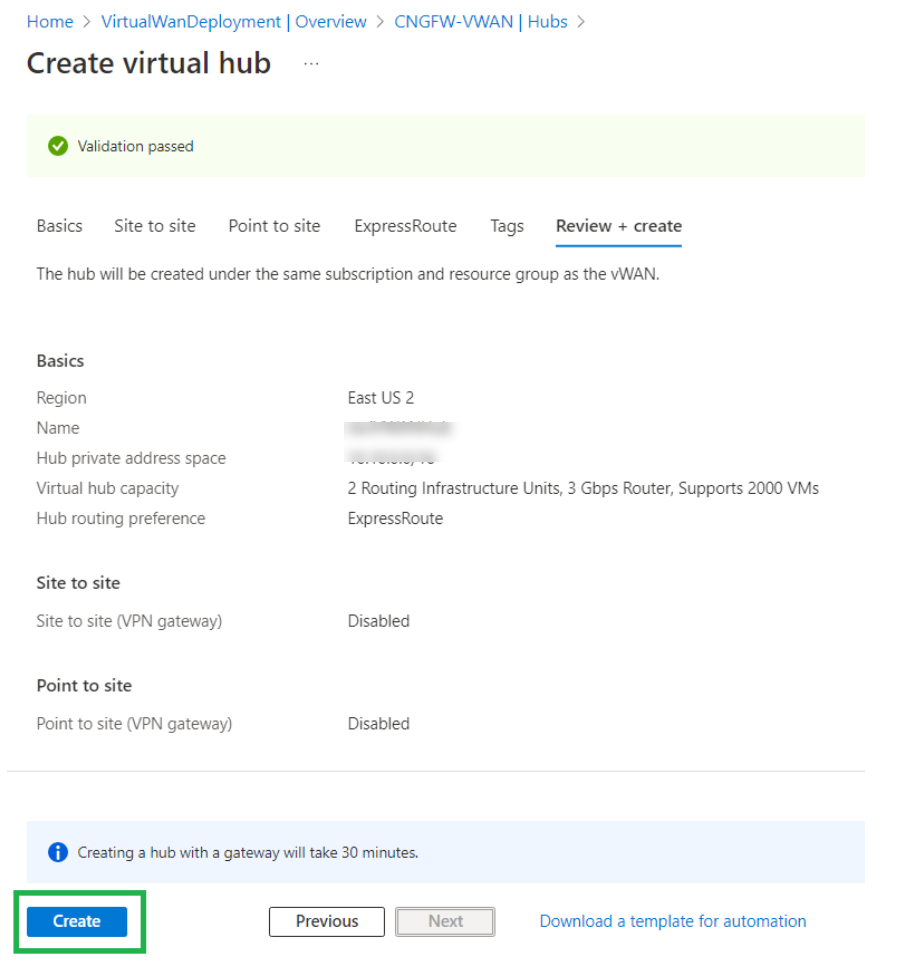

5. After validating the configuration, click Create to create the virtual WAN hub.

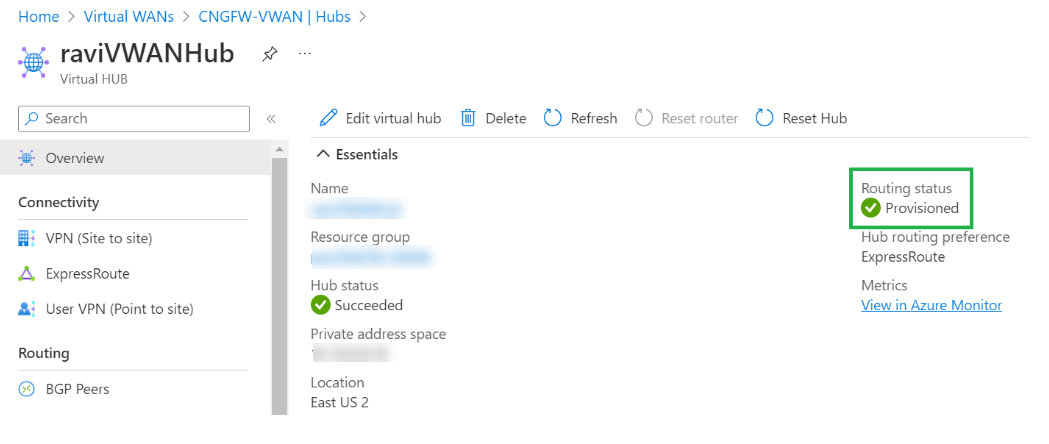

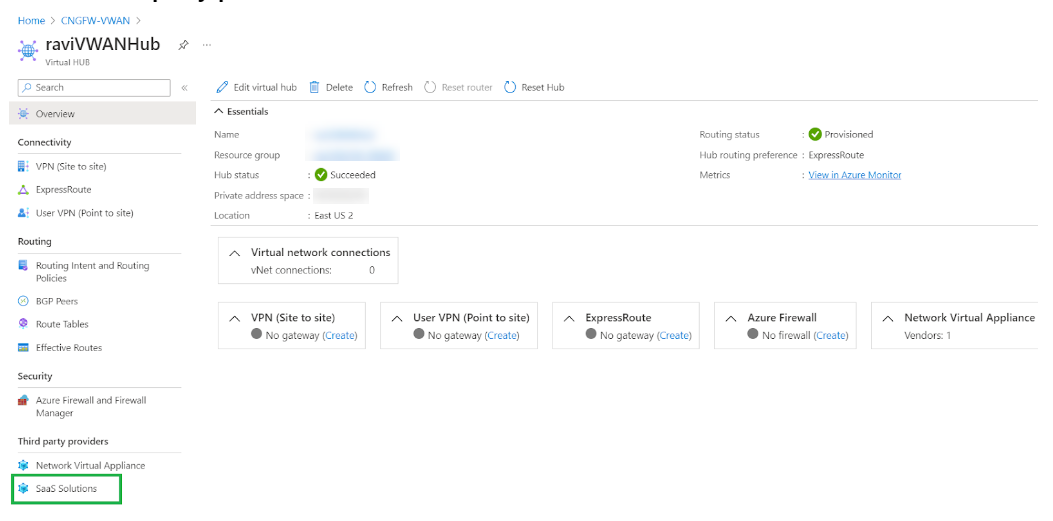

6. Verify that the Routing status is Provisioned.

   It may take approximately 30 minutes to provision a new vWAN hub. Use the Overview page to view routing status.

7. Log in to the Azure portal and search for Cloud NGFWs by Palo Alto Networks.
8. Click Cloud NGFWs by Palo Alto Networks to start creating the Palo Alto Networks Cloud NGFW service for Azure.

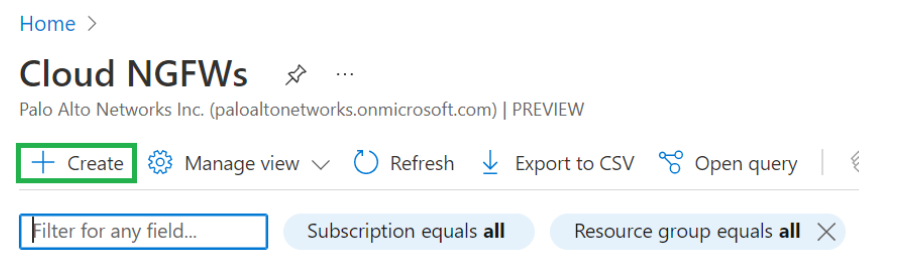

9. In the Cloud NGFWs screen, click Create; this landing page is prepopulated with Cloud NGFW instances if you have previously created the resource.

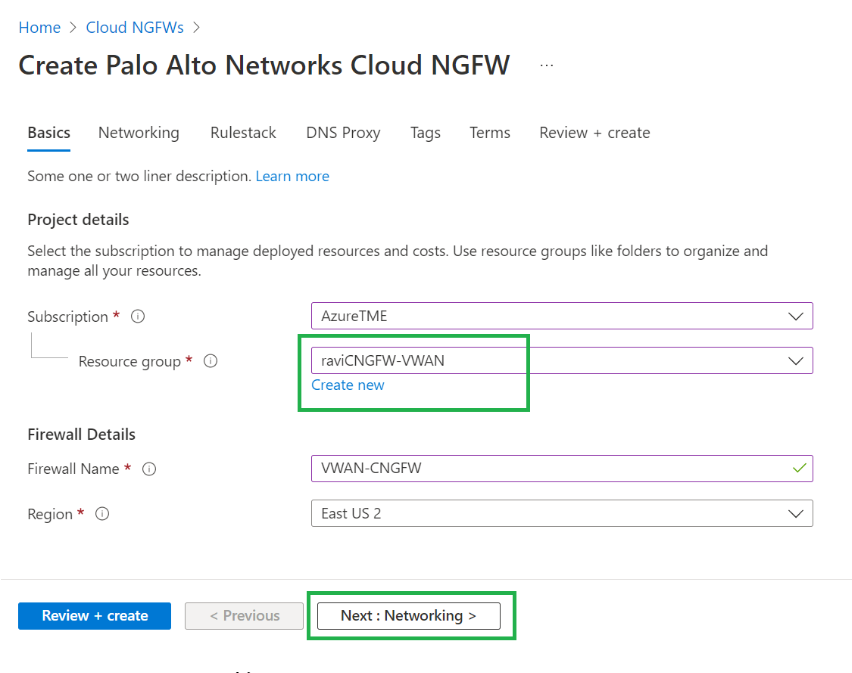

10. In the Create Palo Alto Networks Cloud NGFW screen, enter basic configuration information in the Project details section.

    Use the information in the following table to provide Project details.

    Field	Description
    Subscription	Automatically selected based on the subscription used while logged in.
    Resource Group	Use one of the existing resource groups or create a new one (using the Create New option) in which the Cloud NGFW resource is created.
    Firewall Name	Name of the Cloud NGFW firewall resource.
    Region	Region in which Cloud NGFW is provisioned.

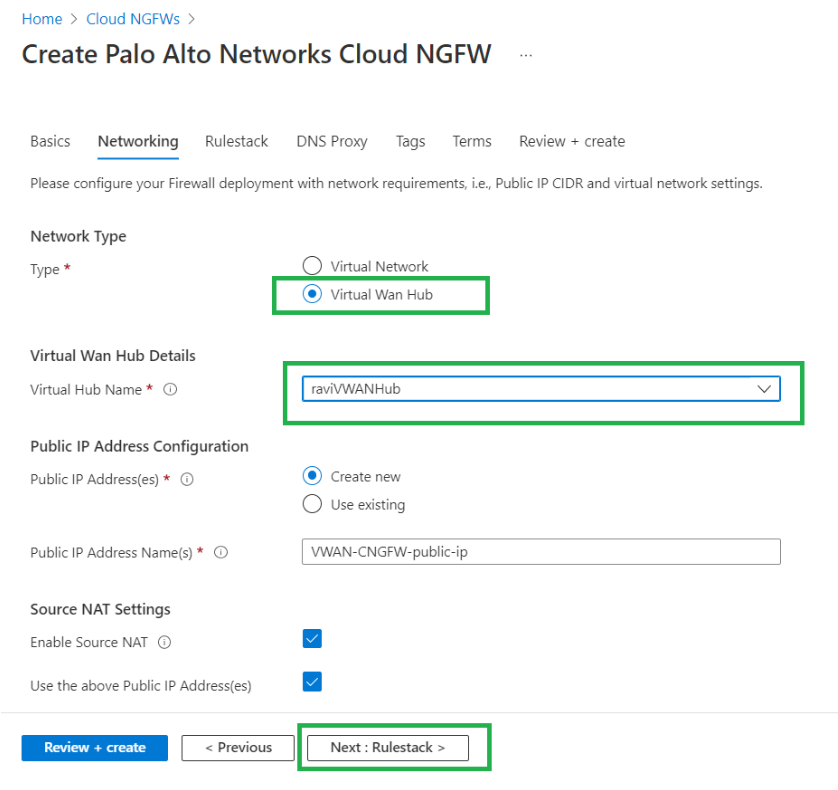

11. Click Next: Networking. Provide information for your networking environment. Choose the Virtual WAN Hub for the Network Type. In the Virtual WAN Hub Details section, select the virtual hub name you created previously from the drop-down menu. Specify public IP addresses, and the Source NAT option if address translation is used on traffic going out to the internet.

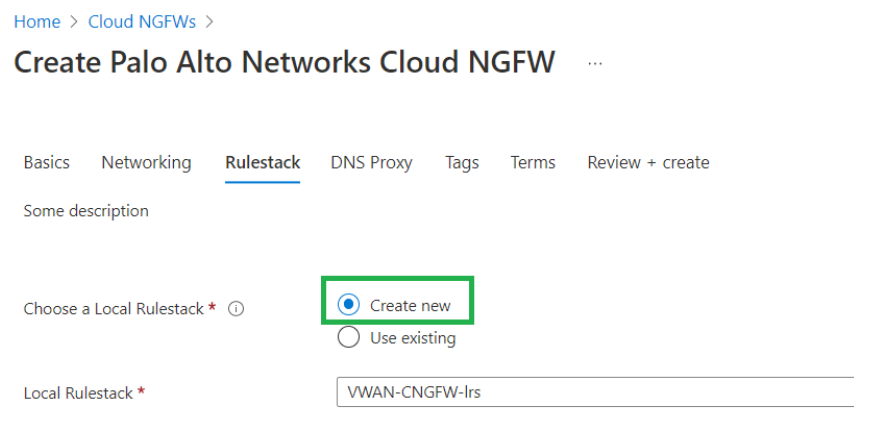

12. Click Next: Rulestack to create a local rulestack where rules are defined; this is a placeholder for local rulestack creation; click Create new or Use existing (if a local rulestack already exists, select it from the drop-down menu). After you create the Cloud NGFW resource, you can modify this rulestack to add or edit rules, FQDN, and the prefix list.

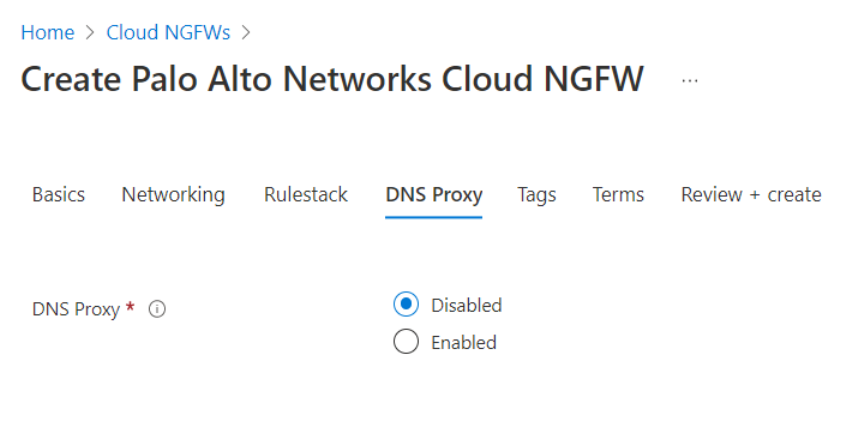

13. Click Next: DNS Proxy. By default, the DNS proxy is disabled. You can configure the Cloud NGFW to inspect all DNS traffic by acting as a proxy for vWAN resources. When configured, the DNS Proxy forwards the DNS request to the default Azure DNS server, or a DNS server you specify.

14. Click Next: Tags to specify tags for your Azure requirements. Tags are predefined labels that can help you manage the vulnerabilities in your environment and view consolidated billing related to your Azure account They are centrally defined and are set to vulnerabilities and as policy exceptions.

    Use tags for:

    • Vulnerability labels. They provide a convenient way to categorize the vulnerabilities in your environment.
    • Policy exceptions. They can be a part of your rules to have a specific effect on tagged vulnerabilities.
    • View consolidated billing for your Azure account.
      Tags are useful when you have large container deployments with multiple teams working in the same environment. For example, you might have different teams handling different types of vulnerabilities. Then you can set tags to define responsibilities over vulnerabilities. Other uses would be to set the status of fixing the vulnerability, or to mark vulnerabilities to ignore when they are a known problem that can't be fixed in the near future.

      You can define as many tags as you like. For information about creating tags for your Azure account, see Use tags to organize your Azure resources and management hierarchy.

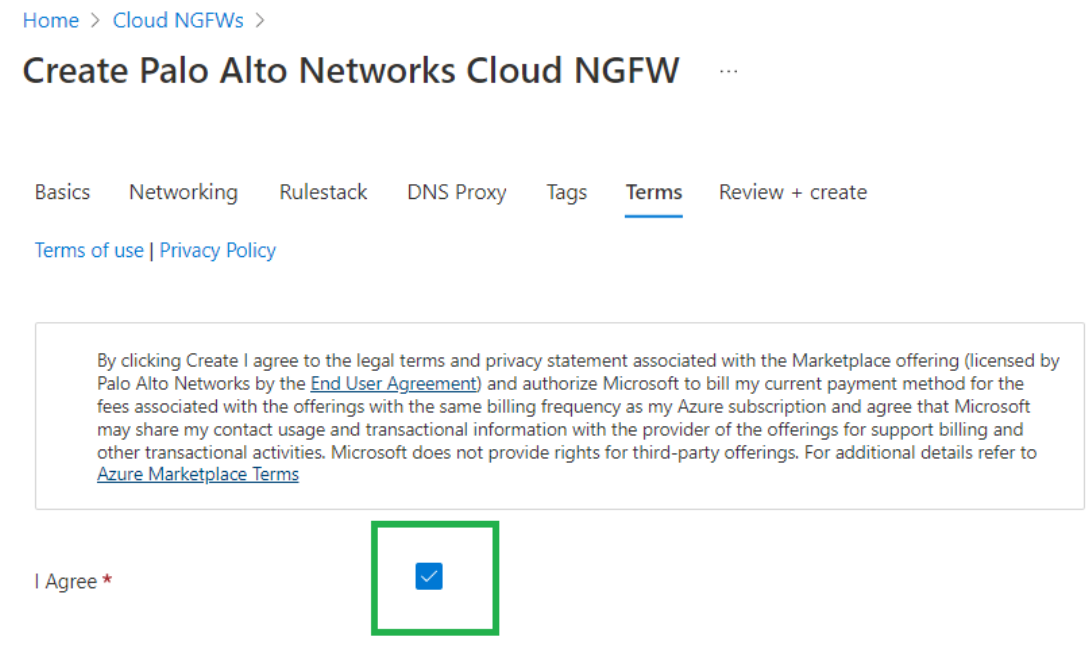

15. Click Next:Terms and accept the terms and the conditions for the deployment.

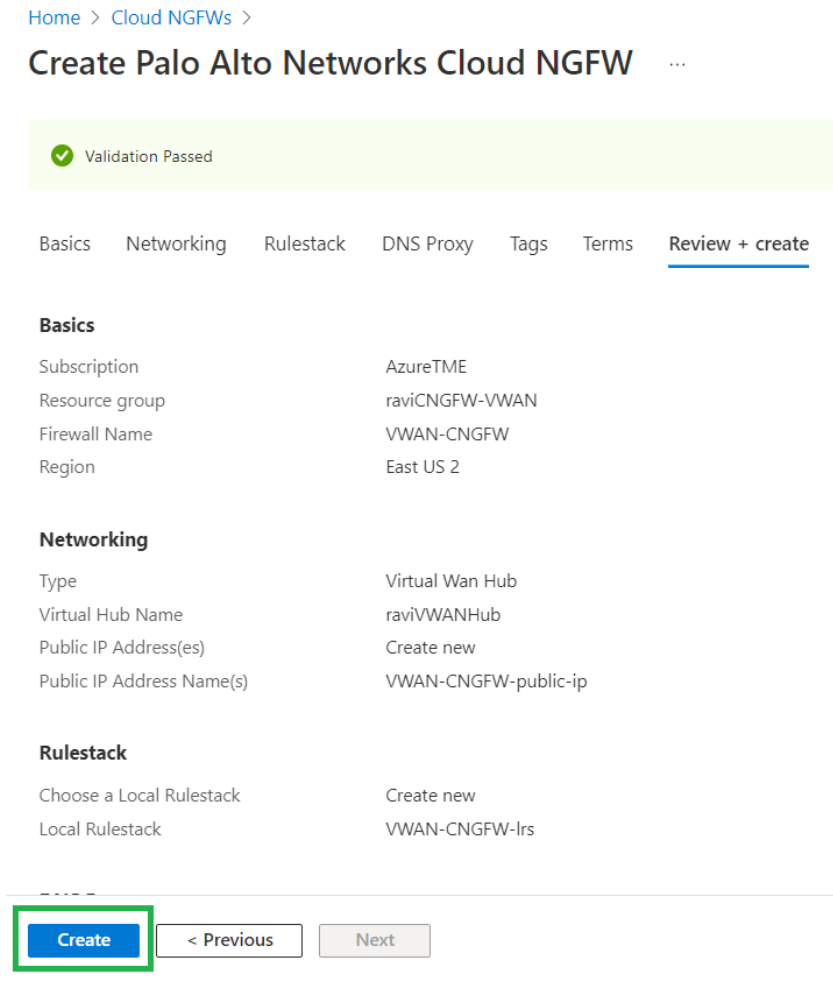

16. Click Review + create to validate your Azure subscription for the Cloud NGFW resource. The resource is validated first, then created. The screen shows Validation Passed. Click Create to deploy the Cloud NGFW service.

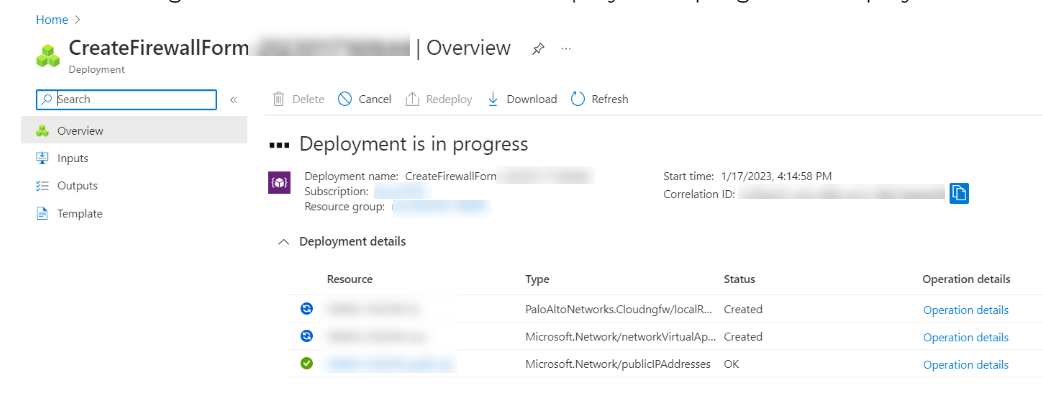

    After creating the Cloud NGFW service the deployment progress is displayed.

    Deploying a Cloud NGFW resource takes approximately 30 minutes to complete.

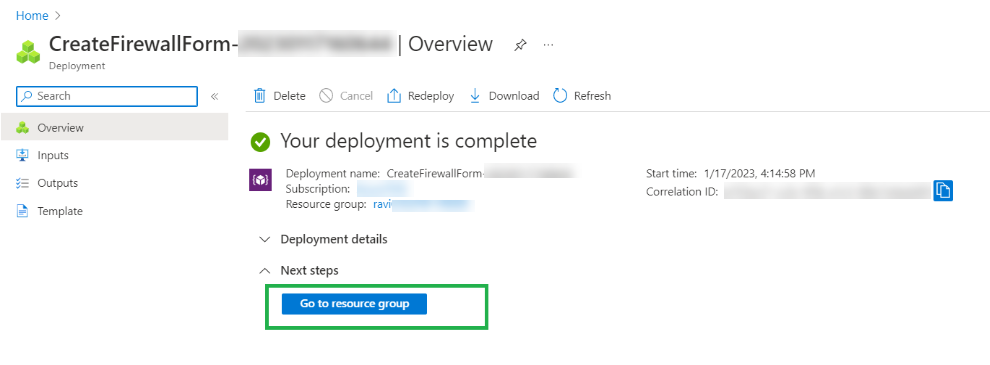

    On a successful deployment, the following screen appears.

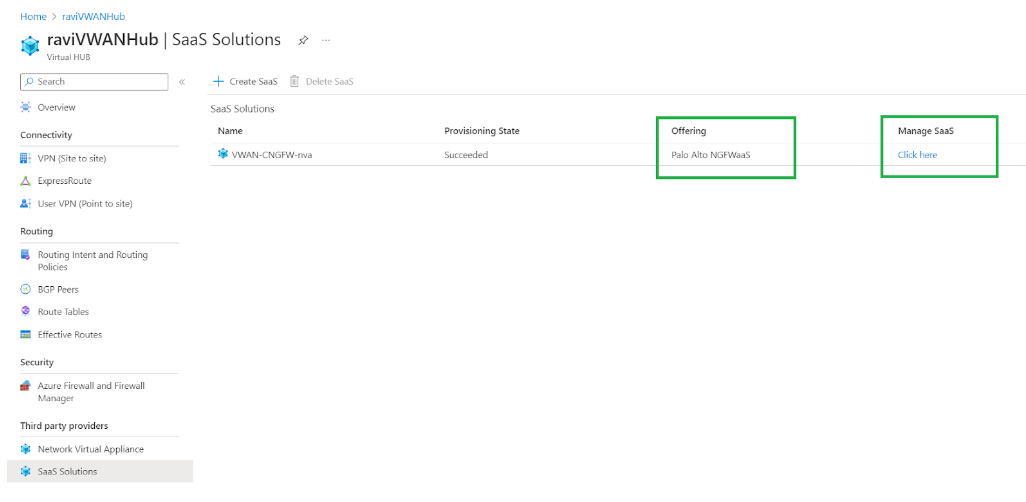

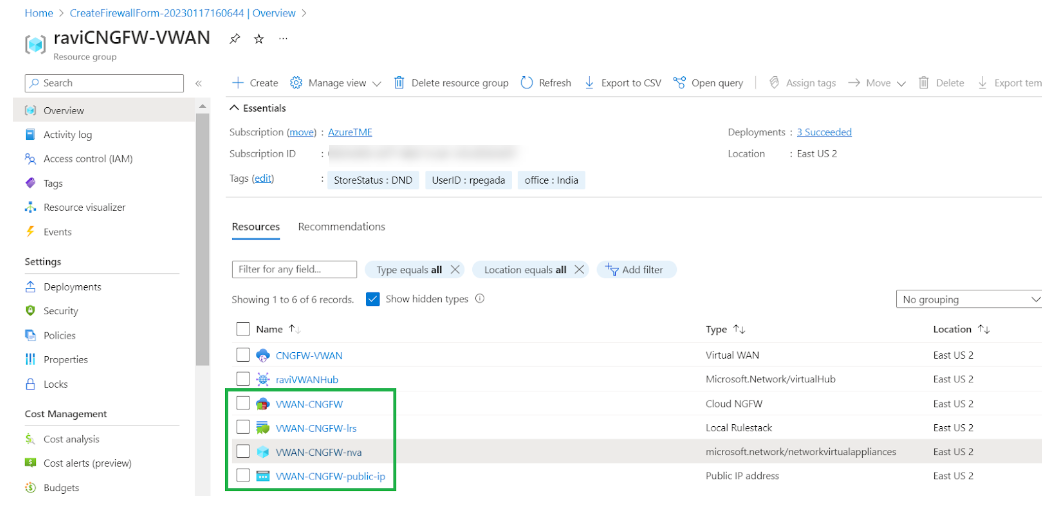

17. Four resources are created, including Cloud NGFW, a local rulestack, public IP address and the Cloud-nva.

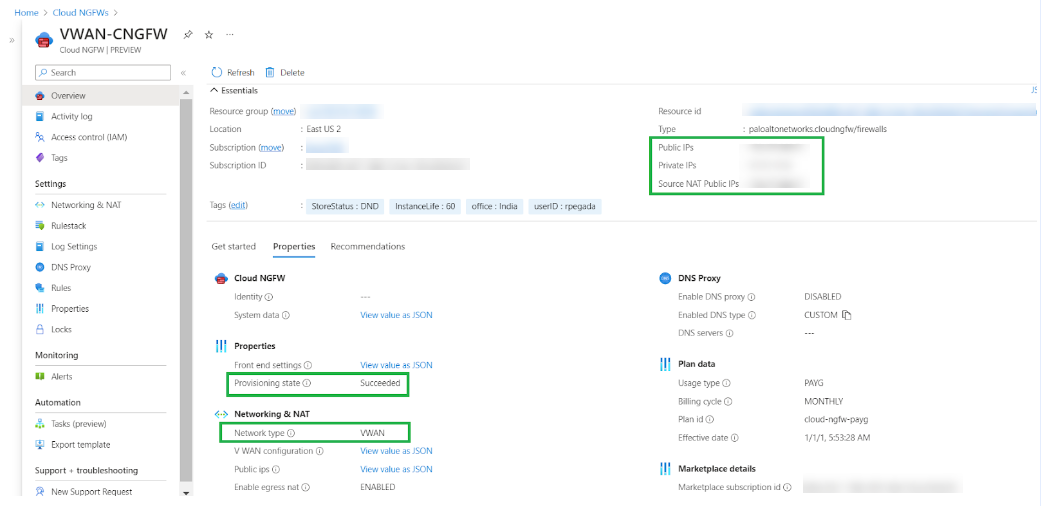

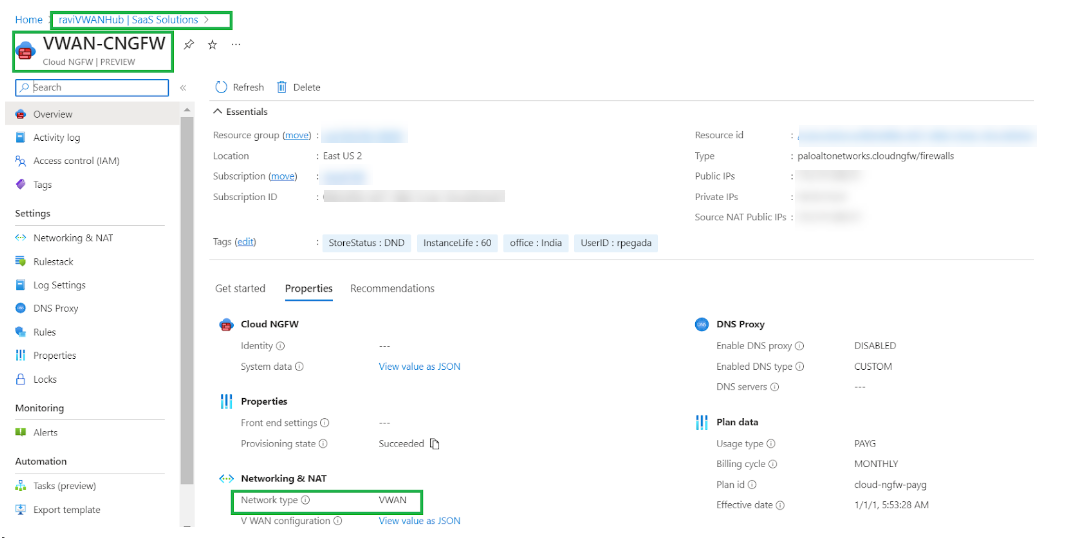

18. After creating the Cloud NGFW resource, select it to verify that the provisioning state is Succeeded. This page also displays the public and private IP addresses that are associated with the Cloud NGFW service. Make sure that the Network type is vWAN.
