Configure DHCP Server on the Infoblox Server
For the latest information on configuring DHCP server, refer to the Infoblox documentation such as
DHCP server on the Infoblox server
.
Log into the Infoblox Grid Manager.

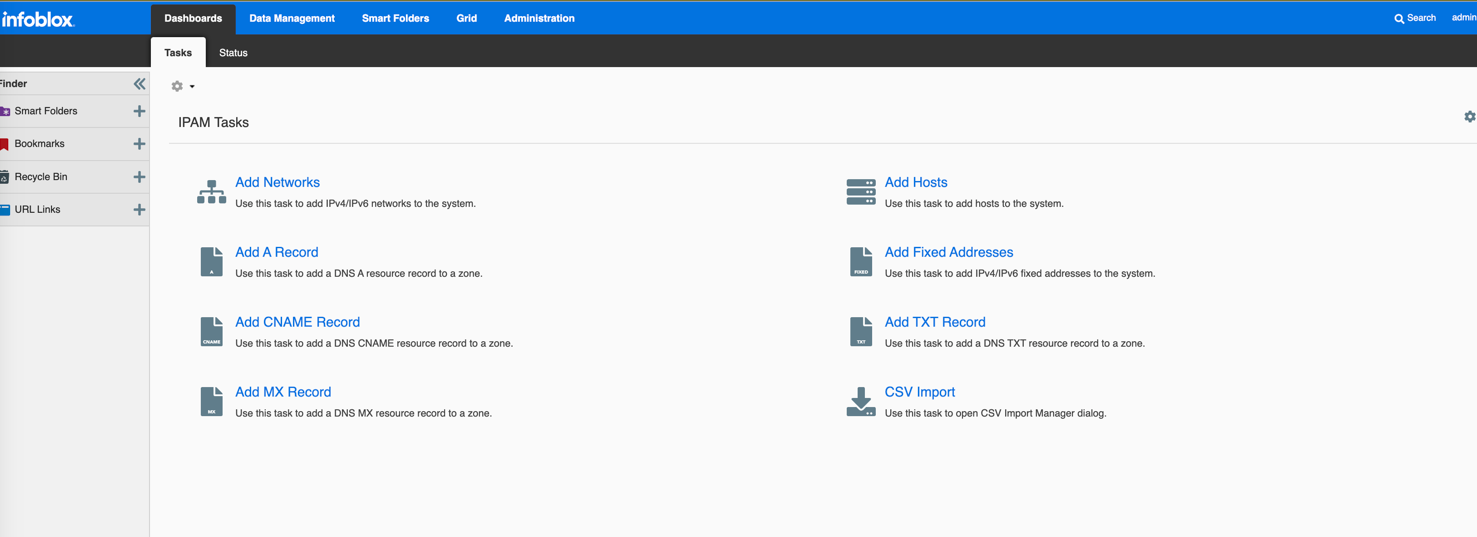

Click
Add Networks
to add a new network.
Ensure that DHCP and DNS are enabled and running on the GRID.

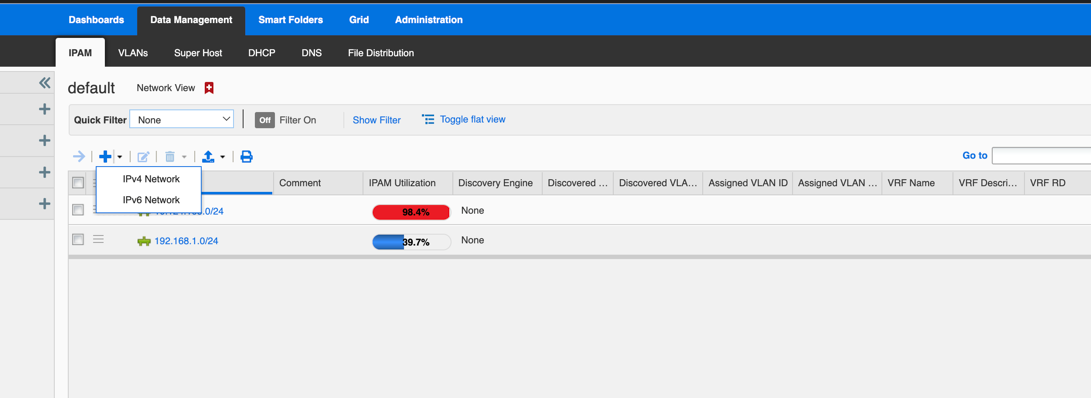

Click
Add
under
Toolbar
to add IPv4 network.
Click
Next
to add IPv4 Network.
Add the network IP address and click
Next
.

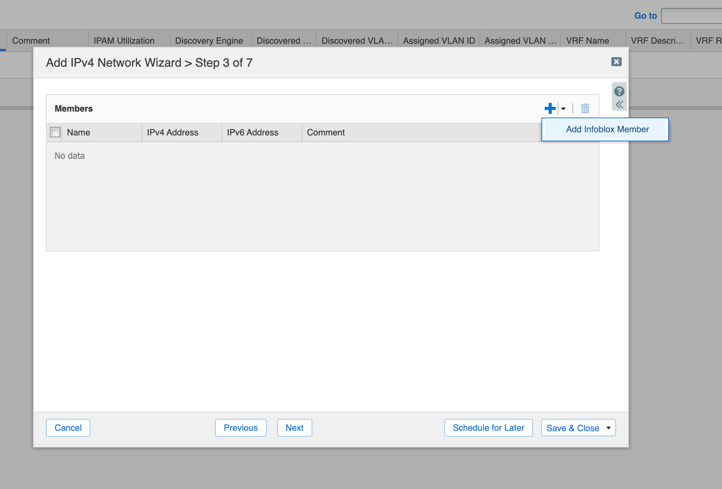

Add Infoblox members.

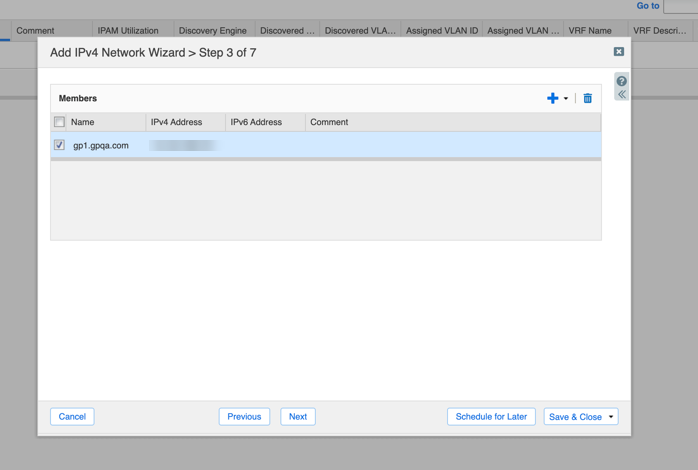

After adding the member, click
Next
.
(Optional)

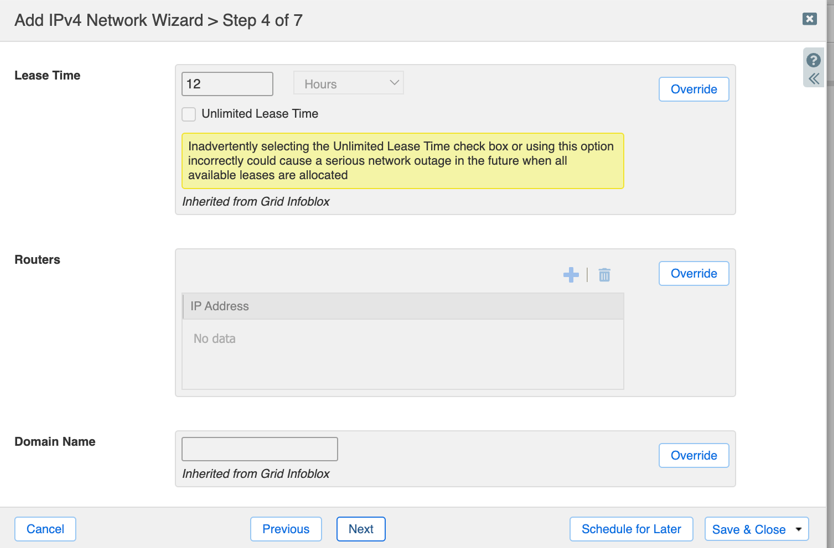

Modify the default Lease time and click
Next
.
Click
Next
.

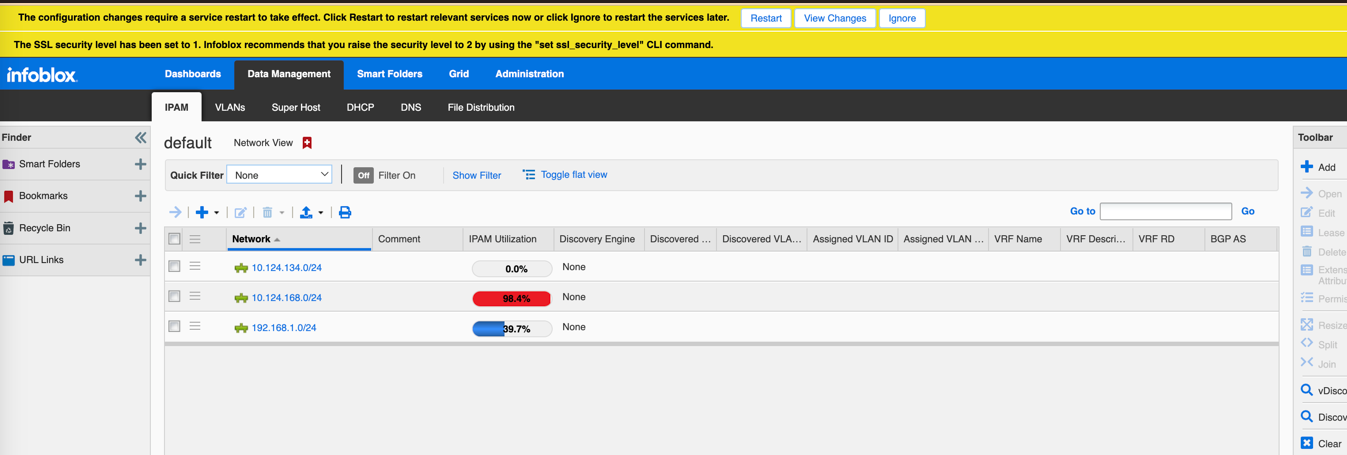

Restart the service to reflect the configurations added for the new network.
To add
Shared Network
, go to
DHCP
Networks
Shared Networks
.
Create all your networks under one
Shared Network
.

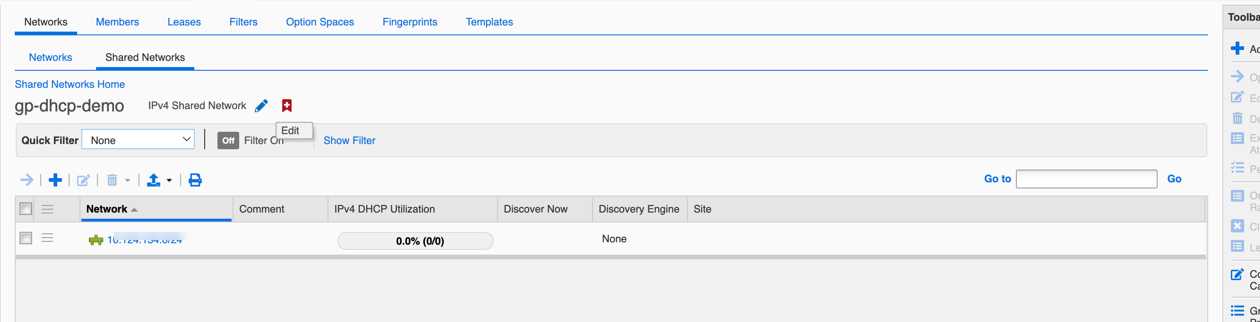

Click on the shared network to add a range of IP addresses.

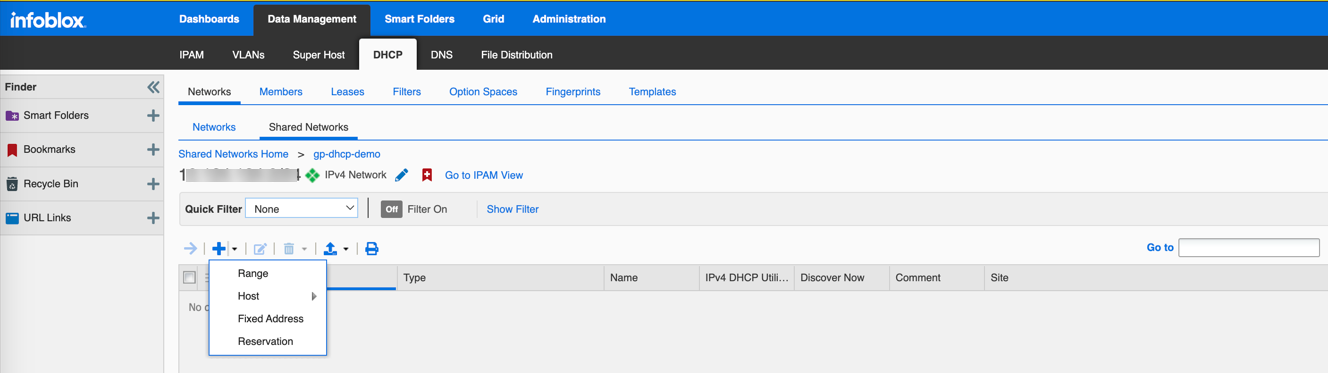

Click on range to add range of IP addresses and click
Next
.
Click
Next

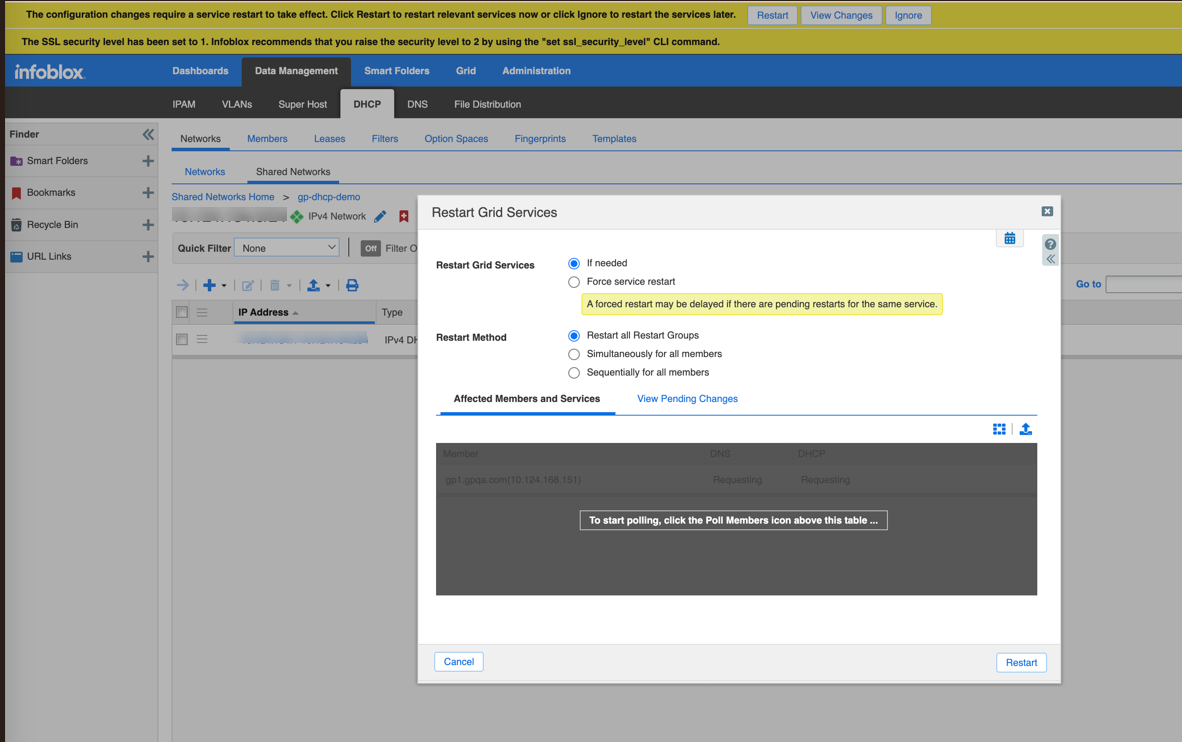

to add other details and proceed until the restart screen appears. Restart Grid to reflect the new configurations added.
After adding the IPv4 ranges, the IP addresses within the range will be displayed under the
Shared Networks
tab. Click
Edit
to edit the details.
(Optional)
Enter the range of IP addresses you want to exclude from the range. Click the
Add
sign to add the
Exclusion Ranges
.
Click
Save & Close
.
You can leave the exclusion range empty if you do not want to exclude any IP addresses.
Click
Next
to proceed and enter the details such as grid member, schedule change, and so on, until you finally
Save and Close
the configurations.
After creating the DHCP configuration, you can create filters with Gateway Name.
You can view the relay agent details of the GlobalProtect gateway.
