ION
3000 Common Insertion Topologies
Deploy the
ION
3000 in various possible topologies in
analytics or control mode.
You can install the
ION
3000 in three
possible insertion scenarios in analytics or control mode with an
existing router:

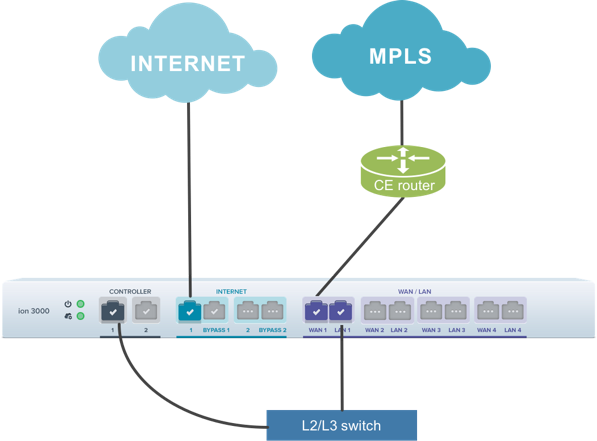

Single Router or Single Switch—The following image illustrates
the deployment architecture of an
ION
3000 as single router or single
switch.

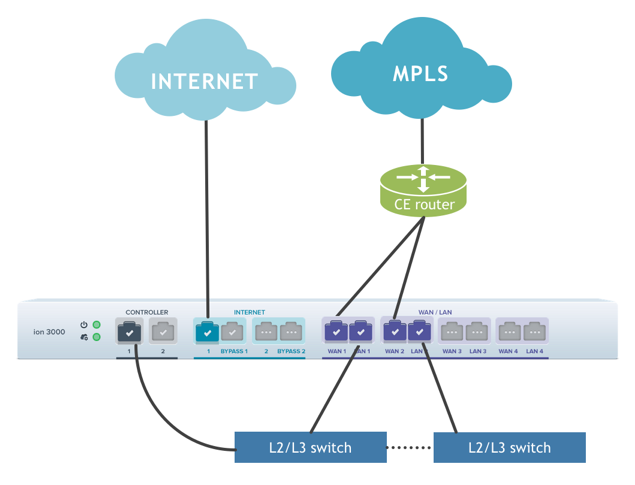

Single Router or Dual Switch—The following image illustrates
the deployment architecture of an
ION
3000 as single router or dual
switch.

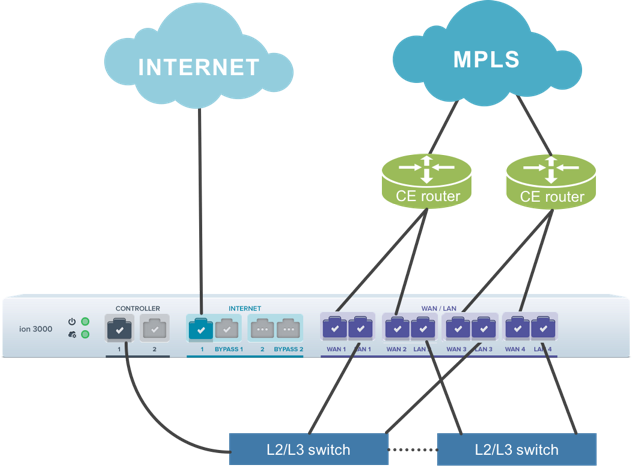

Dual Router or Dual Switch—The following image illustrates
the deployment architecture of an
ION
3000 as dual router or dual
switch.
