5200 Back Panel

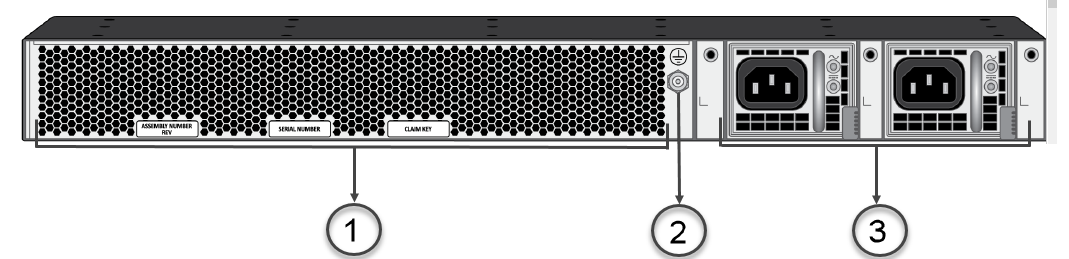

The following table describes the back panel components of the
ION
5200.
Item
Component
Description
1
Fan Exhaust
Provides ventilation and cooling for the device.
The fans are not field replaceable.
2
Ground stud
Use the single post ground stud to connect the firewall to earth ground (ground cable not included).
3
PS1 and PS2
Use the power supply inputs to connect AC power to the
ION
5200. The second power supply is for redundancy. When facing the back of the device, PS1 is on the left and PS2 is on the right.
