ION
5200 Front Panel
Learn the
ION
5200 device front panel parts.

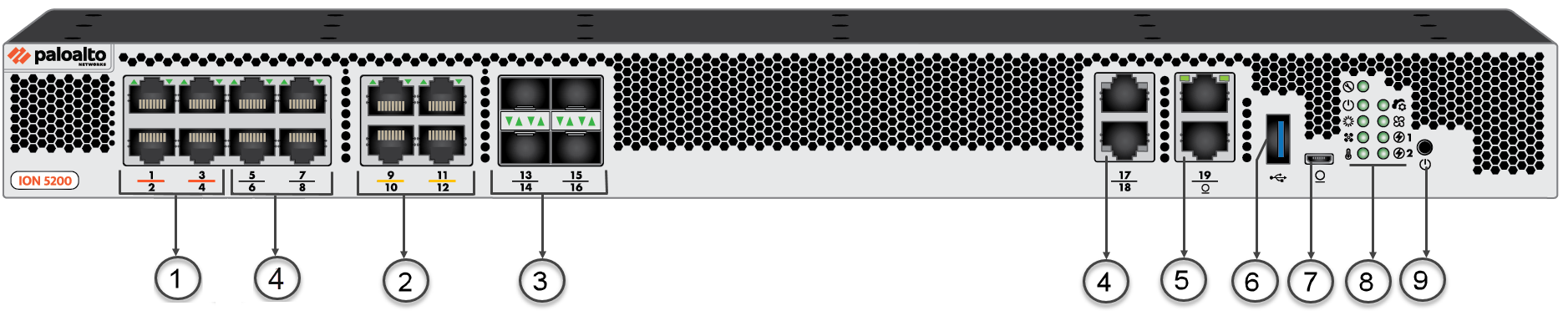

The following table describes the front panel components of the
ION
5200.
Item
Component
Description
1
Bypass Pair
Ports 1 - 4 are Bypass pairs, 4 x 1G RJ45.
2
PoE Ports
Ports 9 - 12 are PoE MGig ports capable of 1G/2.5G.
3
SFP+ ports
Ports 13 - 16 are SFP+ (10G) ports and also supports 1G SFP.
4
RJ-45 Ports
Ports 5 - 8, 17-19 are RJ-45 10M/100M/1000M ethernet ports.
5
Console Port
RJ-45 Serial console port. Use this port to connect a management computer to the device using a 9-pin serial-to-RJ-45 cable.
6
Standard USB
USB Port. A USB port that accepts a USB flash drive.
7
Micro USB Port
Micro USB Console Port. Use this port to connect a management computer to the device using a standard Type-A USB-to-micro USB cable.
8
LED Indicators
LEDs indicate the status of the
ION
device components.
9
Power/Reset
Power LED; the LED turns green when powered on.
