Install the ION 7000 in High Availability
Learn how to deploy the Prisma SD-WAN ION 7000 in HA
environment in data centers and branch sites.
The Prisma SD-WAN ION 7000 provides a horizontally-scalable,
high availability (HA) solution between branch sites and data center clusters.
- Add a second ION 7000 to the data center that requires high availability (HA).
- Mimic the existing ION 7000 cabling for the second ION 7000 device.
- On the Prisma SD-WAN console, claim the ION device and
assign it to a data center and configure the ION device. Verify
that it can talk to the core and WAN edge routers. Ensure the following:
- The IP address for the controller port is unique for each ION device. The controller port can be a part of the same subnet as the first ION device.
- The IP addresses for the core and WAN edge peering ports are unique for each ION device and their peering addresses are allocated a /29 or larger subnet block.
- The IP addresses for the internet ports are unique for each ION device.
- Finally, if NAT is configured, ensure that the NAT IP address or the NAT port is unique for each ION device.

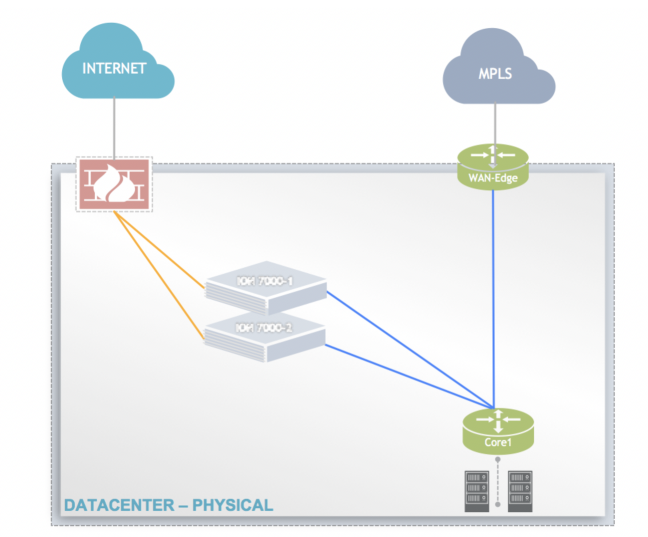

There is no additional configuration required on the second ION device, except for IP addresses. Both the ION 7000 devices peer with the same core and WAN edge routers. The second ION device inherits the same BGP configuration as the first device.Sample physical and logical connectivity using two ION 7000 devices is illustrated below. Although the topology shows only a single core router and WAN edge router, you may use the same connectivity model in environments where there is more than one router.The following image illustrates the physical connectivity for ION 7000 HA.![]()

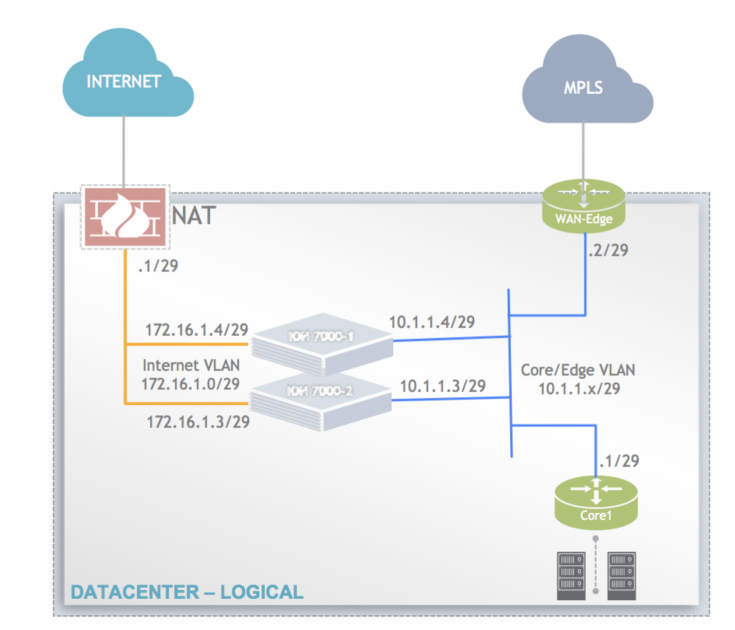

The following image illustrates the logical connectivity and IP addressing for ION 7000 HA.![]()

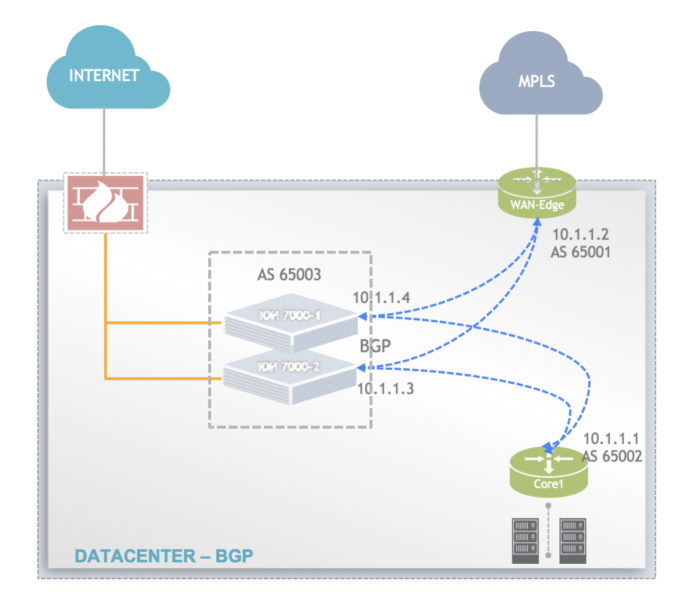

The following image illustrates the setting up BGP for ION 7000 HA.![]()
