High Availabilty

Learn about the high availability concept, including using openconfig-hagroups model with the PAN-OS OpenConfig plugin.

Review the deviation file before using the openconfig-hagroups model to familiarize yourself with supported paths.

When using the openconfig-hagroups model:

Only active-passive mode is supported.
Preemptive Hold Time is defined in milliseconds.
LinkMonitorEnable is enabled by default.
ApPassingLinkState is set to auto by default.

Configure HA Settings

The following command updates various high availability settings on the firewall:


gnmic -a firewall:9339 -e JSON_IETF set --update-path "/" --update-file highavailability.json

Only the interfaces of type HA are currently supported with this model.

{
	"ha-groups": {
		"ha-group": [
			{
			 	"id": 1,
				"config": {
					"id": 1,
					"ha-enabled": true,
					"ha-mode": "ACTIVE_PASSIVE"
				},
				"control-link": {
					"config": {
						"control-link-interface": "ethernet1/7",
						"control-link-ipv4": "192.168.1.16/31",
						"control-link-peer-ipv4": "192.168.1.17/31"
					}
				},
				"data-link": {
					"data-link-interface": "ethernet1/16",
					"data-link-ipv4": "192.168.1.20/31"
			    }
			}
		]
	}
}

A successful update returns the following output:


Set Response:
{
  "timestamp": 1625780831682622866,
  "time": "2021-07-08T14:47:11.682622866-07:00",
  "results": [
    {
      "operation": "UPDATE"
    }
  ]
}

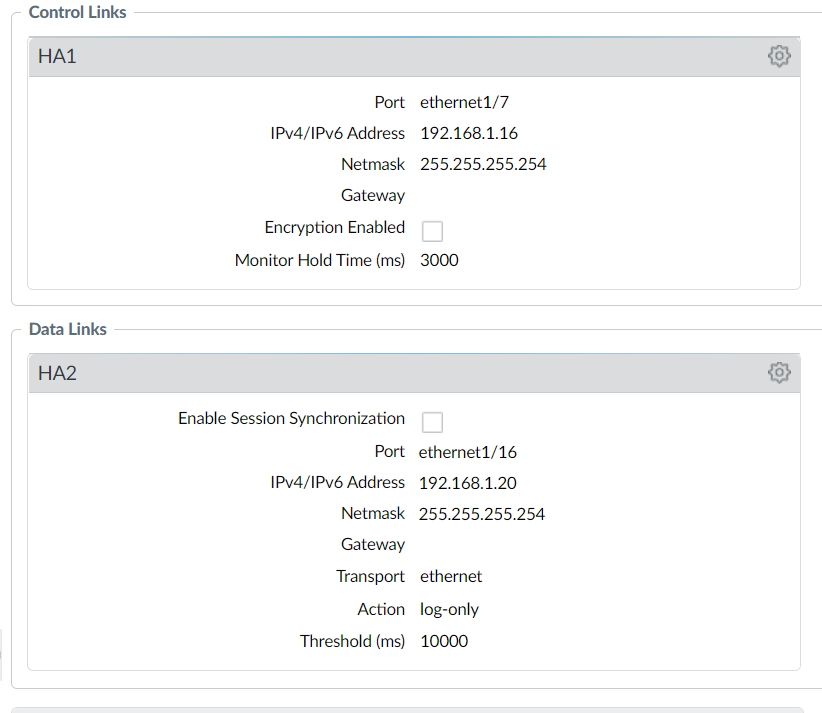

The UI displays the following after updating the HA settings.

Retrieve HA Settings

The following command retrieves the HA Settings currently available on the firewall.


          gnmic -a firewall:9339 -e JSON_IETF get --path "/ha-groups/ha-group"

After sending the file above, the output returns the following:



Timestamp": 1625864679870214721,
    "time": "2021-07-09T14:04:39.870214721-07:00",
    "updates": [
      {
        "Path": "ha-groups",
        "values": {
          "ha-groups": {
            "ha-group": [
              {
                "config": {
                  "global-health-policy": "ANY",
                  "ha-config-sync": false,
                  "ha-enabled": true,
                  "ha-mode": "ACTIVE_PASSIVE",
                  "ha-msg-encryption": false,
                  "ha-session-sync": false,
                  "hello-interval": 8000,
                  "id": 1,
                  "preempt": false,
                  "preempt-hold-timer": 60000
                },
                "control-link": {
                  "config": {
                    "control-link-interface": "ethernet1/7",
                    "control-link-ipv4": "192.168.1.16/31",
                    "control-link-peer-ipv4": "192.168.1.17/31"
                  },
                  "state": {
                    "control-link-interface": "ethernet1/7",
                    "control-link-ipv4": "192.168.1.16/31",
                    "control-link-peer-ipv4": "192.168.1.17/31"
                  }
                },
                "data-link": {
                  "config": {
                    "data-link-interface": "ethernet1/16",
                    "data-link-ipv4": "192.168.1.20/31"
                  },
                  "state": {
                    "data-link-interface": "ethernet1/16",
                    "data-link-ipv4": "192.168.1.20/31"
                  }
                },
                "id": 1,
                "state": {
                  "global-health-policy": "ANY",
                  "global-health-status": "DOWN",
                  "ha-config-sync": false,
                  "ha-enabled": true,
                  "ha-mode": "ACTIVE_PASSIVE",
                  "ha-msg-encryption": false,
                  "ha-session-sync": false,
                  "ha-state": "ACTIVE",
                  "ha-state-last-change": "83787",
                  "hello-interval": 8000,
                  "id": 1,
                  "preempt": false,
                  "preempt-hold-timer": 60000
                }
              }
            ]
          }
        }
      }
    ]
  }
]

Delete HA Settings

The following command deletes the HA settings previously set on the firewall.


gnmic -a firewall:9339 -e JSON_IETF delete --path "ha-groups"
