Establish an interface as an HA interface (to
later assign as the HA4 link).
Select NetworkInterfacesEthernet and
select an interface; for example, ethernet1/1.
Select the Interface Type to
be HA.
Click OK.
Repeat this step to configure another interface to
use as the HA4 backup link.
Enable HA clustering.
Select DeviceHigh AvailabilityGeneral and
edit the Clustering Settings.
Enable Cluster Participation.
Enter the Cluster ID, a unique
numeric ID for an HA cluster in which all members can share session
state; range is 1 to 99.
Enter a short, helpful Cluster Description.
(Optional) Change Cluster Synchronization
Timeout (min), which is the maximum number of minutes
that the local firewall waits before going to Active state when
another cluster member (for example, in unknown state) is preventing
the cluster from fully synchronizing; range is 0 to 30; default
is 0.
(Optional) Change Monitor Fail
Hold Down Time (min), which is the number of minutes
after which a down link is retested to see if it is back up; range
is 1 to 60; default is 1.
Click OK.
Configure the HA4 link.
Select HA Communications and
in the Clustering Links section, edit the HA4 section.
Select the interface you configured in the first step
as an HA interface to be the Port for
the HA4 link; for example, ethernet1/1.
Enter the IPv4/IPv6 Address of
the local HA4 interface.
Enter the Netmask.
(Optional) Change the HA4 Keep-aliveThreshold
(ms) to specify the timeframe within which the firewall
must receive keepalives from a cluster member to know that the cluster
member is functional; range is 5,000 to 60,000; default is 10,000.
Click OK.
Configure the HA4 Backup link.
Edit the HA4 Backup section.
Select the other interface you configured in the first
step as an HA interface to be the Port for
the HA4 backup link.
Enter the IPv4/IPv6 Address of
the local HA4 backup interface.
Enter the Netmask.
Click OK.
Specify all members of the HA cluster, including the
local member and both HA peers in any HA pair.
Select Cluster Config.
(On a supported firewall) Add a
peer member’s Device Serial Number.
(On Panorama) Add and
select a Device from the dropdown and enter
a Device Name.
Enter the HA4 IP Address of
the HA peer in the cluster.
Enter the HA4 Backup IP Address of
the HA peer in the cluster.
Enable Session Synchronization with
the peer you identified.
(Panorama only) Refresh the list of HA firewalls
in the HA cluster.
Under Templates, select DeviceHigh AvailabilityCluster Config.
Click Refresh at the bottom
of the screen.

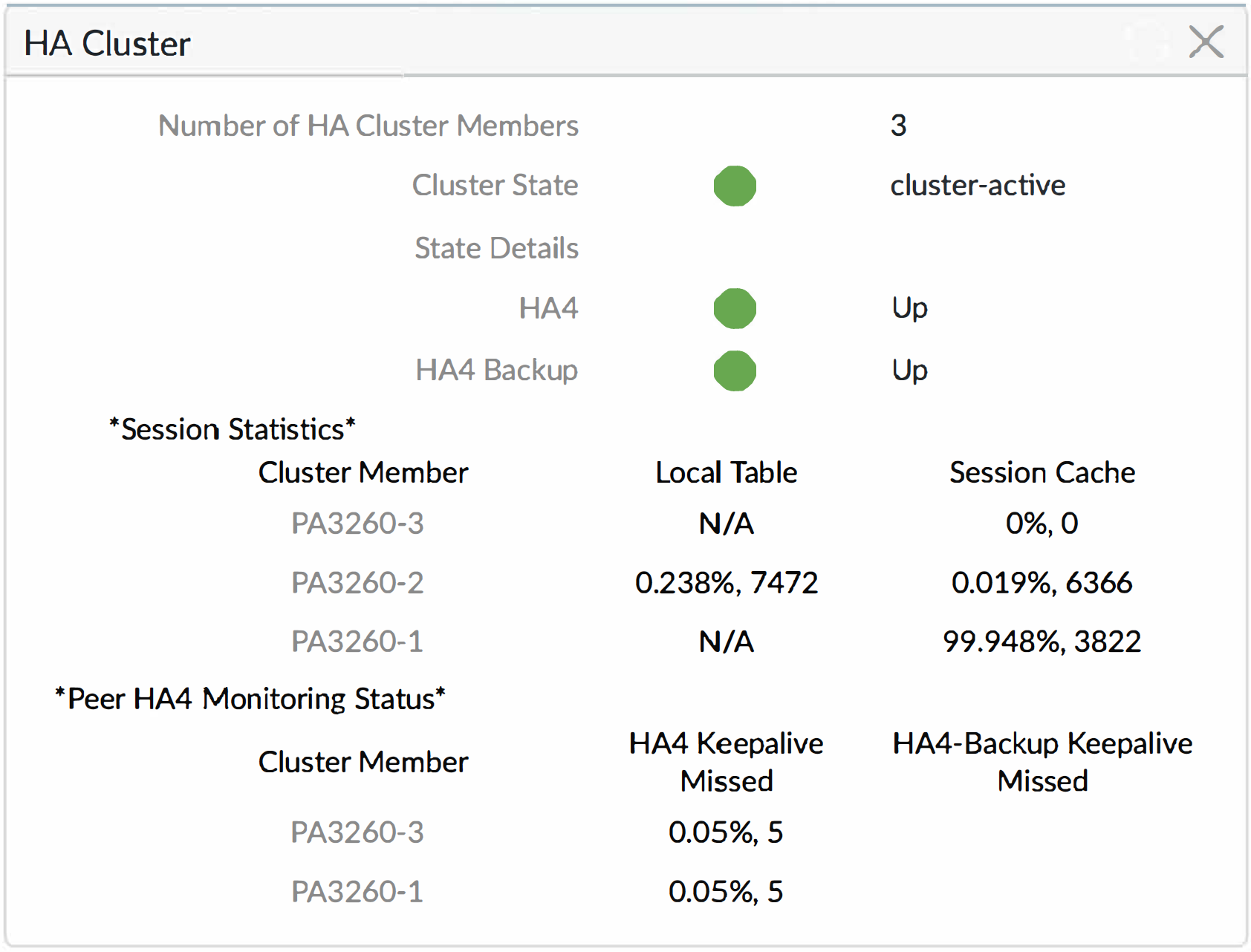

View HA cluster information in the UI.
Select Dashboard.
View the HA cluster fields. The top section displays
cluster state and HA4 connections to provide cluster health at a
glance. The HA4 and HA4 Backup indicators will be one of the following:
Green indicates the link status of the cluster members is Up. Red
indicates the link status of all the cluster members is Down. Yellow
indicates the link status of some cluster members is Up while the
status of other cluster members is Down. Grey indicates not configured.
The center section displays the capacity of the local session table
and session cache table so you can monitor how full the tables are
and plan for firewall upgrades. The lower section displays communication
errors on the HA4 and HA4 backup links, signifying possible problems with
synchronizing information between members.
You can view HA cluster flap statistics. The cluster
flap count is reset when the HA device moves from suspended to functional
and vice versa. The cluster flap count also resets when the non-functional
hold time expires.
