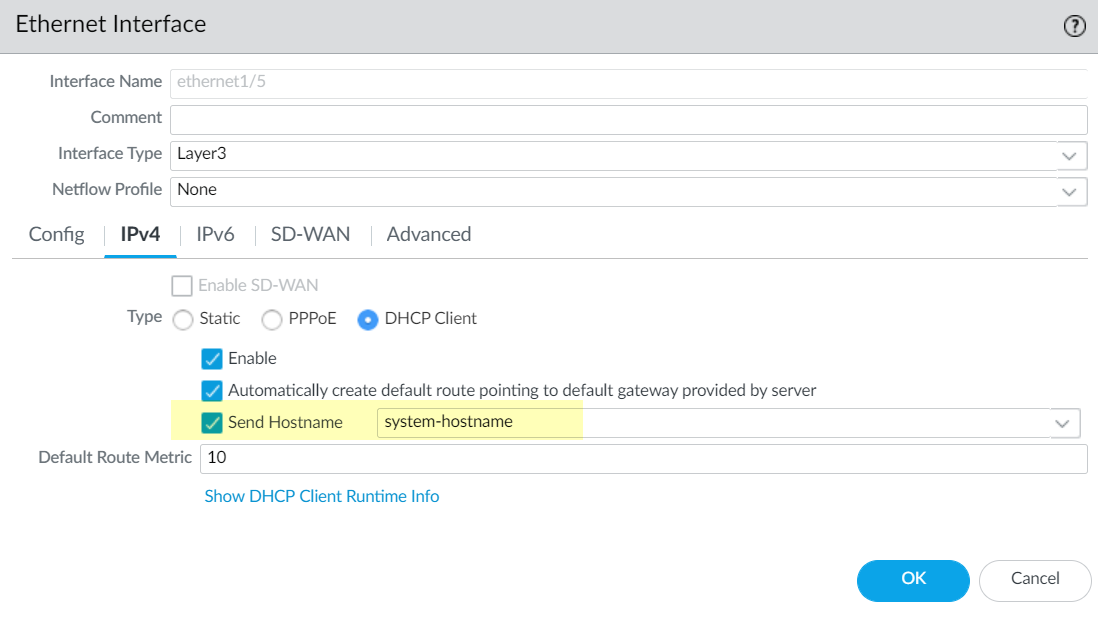

Suppose you enable the option to
Automatically
create default route pointing to default gateway provided by server
,
select a virtual router, add a static route for a Layer 3 interface,
change the
Metric
(which defaults to 10)
to a value greater than 10 (for this example, 100) and Commit your
changes. In the route table, the route’s metric will not indicate
100. Instead, it will indicate the default value of 10, as expected,
because 10 takes precedence over the configured value of 100. However,
if you change the static route’s
Metric
to
a value less than 10 (such as 6), the route in the route table is
updated to indicate the configured metric of 6.
