Follow these steps to configure Quality of
Service (QoS), which includes creating a QoS profile, creating a
QoS policy, and enabling QoS on an interface.
Identify the traffic you want to manage with QoS.
This example shows how to use QoS to limit web browsing.
Select
ACC
to
view the
Application Command Center
page.
Use the settings and charts on the
ACC
page
to view trends and traffic related to Applications, URL filtering,
Threat Prevention, Data Filtering, and HIP Matches.
Click
any application name to display detailed application information.
Identify
the egress interface for applications that you want to receive QoS
treatment.
The egress interface for traffic depends
on the traffic flow. If you are shaping incoming traffic, the egress
interface is the internal-facing interface. If you are shaping outgoing
traffic, the egress interface is the external-facing interface.
Select
Monitor
Logs
Traffic
to
view the Traffic logs.
To filter and only show logs for a
specific application:
If an entry is displayed for the
application, click the underlined link in the Application column
then click the Submit icon.
If an entry is not displayed for the application, click the
Add Log icon and search for the application.
The
Egress
I/F
in the traffic logs displays each application’s
egress interface. To display the
Egress I/F
column
if it is not displayed by default:

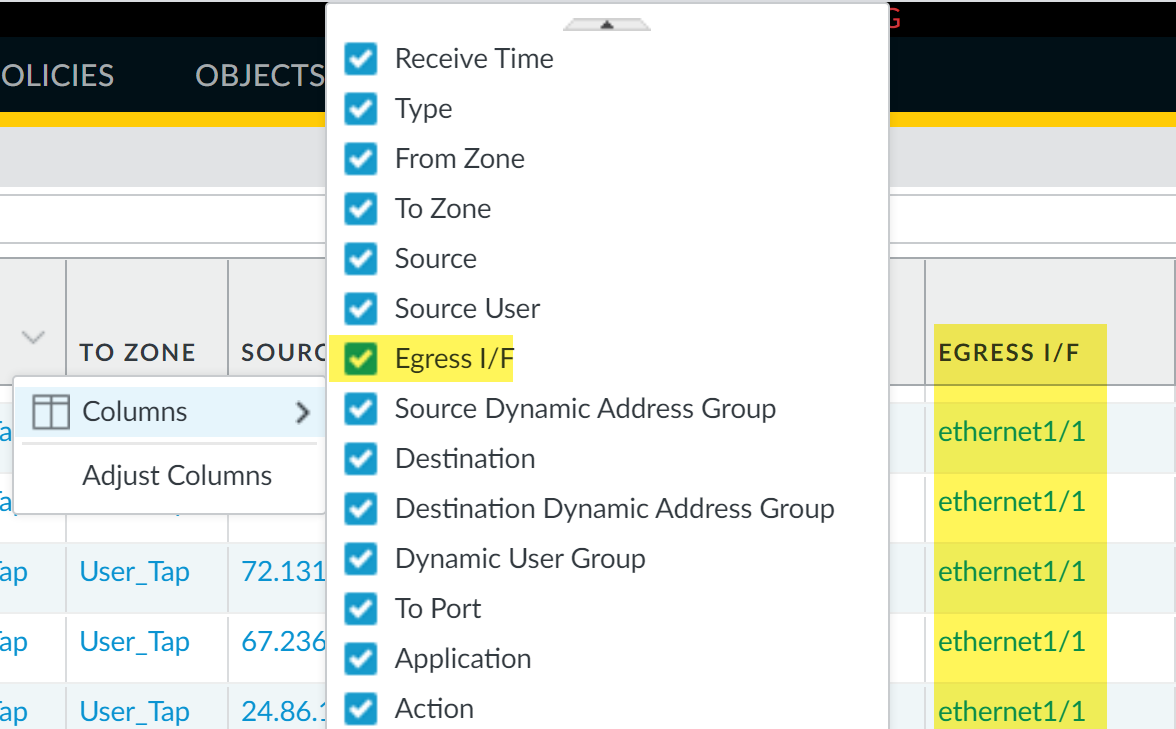

Click any column
header to add a column to the log:

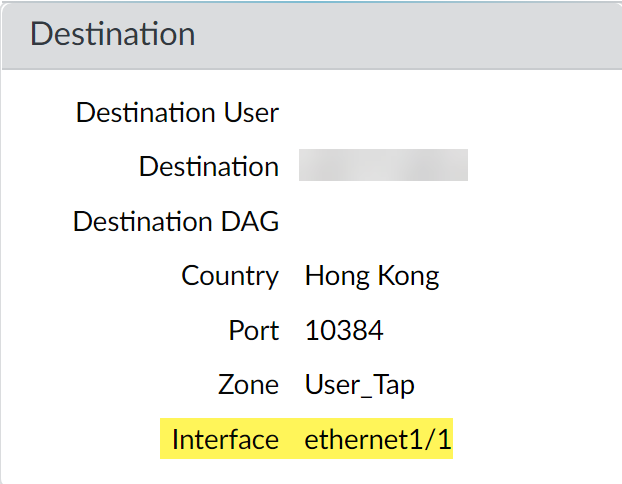

Click the spyglass icon to the left of any entry to display
a detailed log that includes the application’s egress interface
listed in the Destination section:
Add a QoS policy rule.
A QoS policy rule defines the traffic to receive QoS treatment.
The firewall assigns a QoS class of service to the traffic matched
to the policy rule.
Because QoS is enforced on traffic
as it egresses the firewall, your QoS policy rule is applied to
traffic after the firewall has enforced all other security policy
rules, including Network Address Translation (NAT) rules. If you want
to apply QoS treatment to traffic based on source, you must specify
the post-NAT source address in a QoS policy rule (do not use the
pre-NAT source address).
) Continue to define additional
parameters. For example, select
Source
and
Add
a
Source
User
to provide QoS for a specific user’s web traffic.
Select
Other Settings
and assign
a
QoS Class
to traffic matching the policy
rule. For example, assign Class 2 to the user1’s web traffic.
Click
OK
.
Add a QoS
profile rule.
A QoS profile rule allows you to define the eight classes
of service that traffic can receive, including priority, and enables QoS
Bandwidth Management.
You can edit any existing QoS
profile, including the default, by clicking the QoS profile name.
Select
Network
Network Profiles
QoS Profile
and
Add
a
new profile.
Enter a descriptive
Profile Name
.
Set the overall bandwidth limits for the QoS profile rule:
Enter an
Egress Max
value to
set the overall bandwidth allocation for the QoS profile rule.
Enter an
Egress Guaranteed
value to
set the guaranteed bandwidth for the QoS Profile.
Any
traffic that exceeds the Egress Guaranteed value is best effort
and not guaranteed. Bandwidth that is guaranteed but is unused continues
to remain available for all traffic.
In the Classes section, specify how to treat up to
eight individual QoS classes:
Add
a
class to the QoS Profile.
Select the
Priority
for the class:
real-time, high, medium, or low.
Enter the
Egress Max
and
Egress
Guaranteed
bandwidth for traffic assigned to each QoS
class.
Click
OK
.

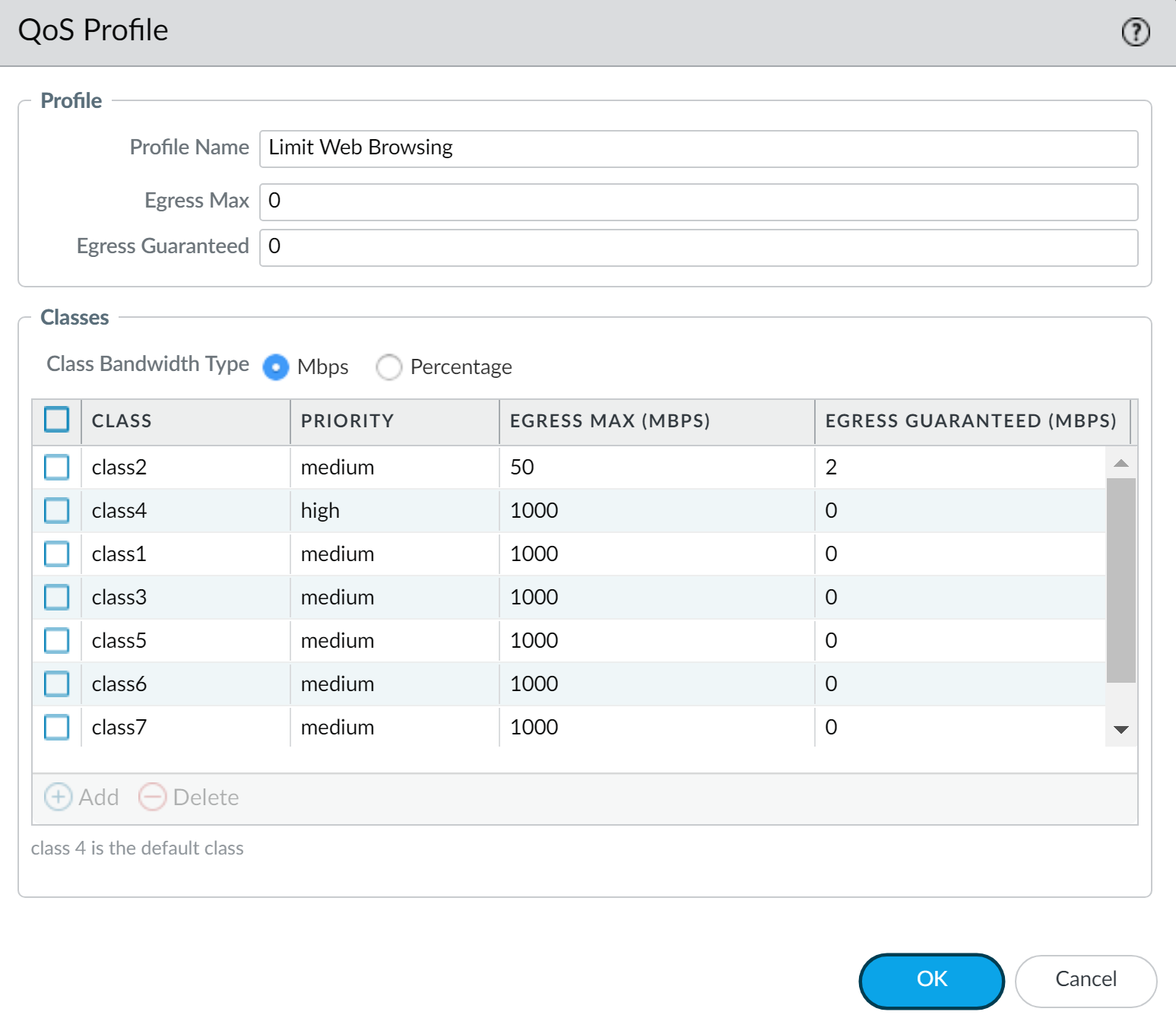

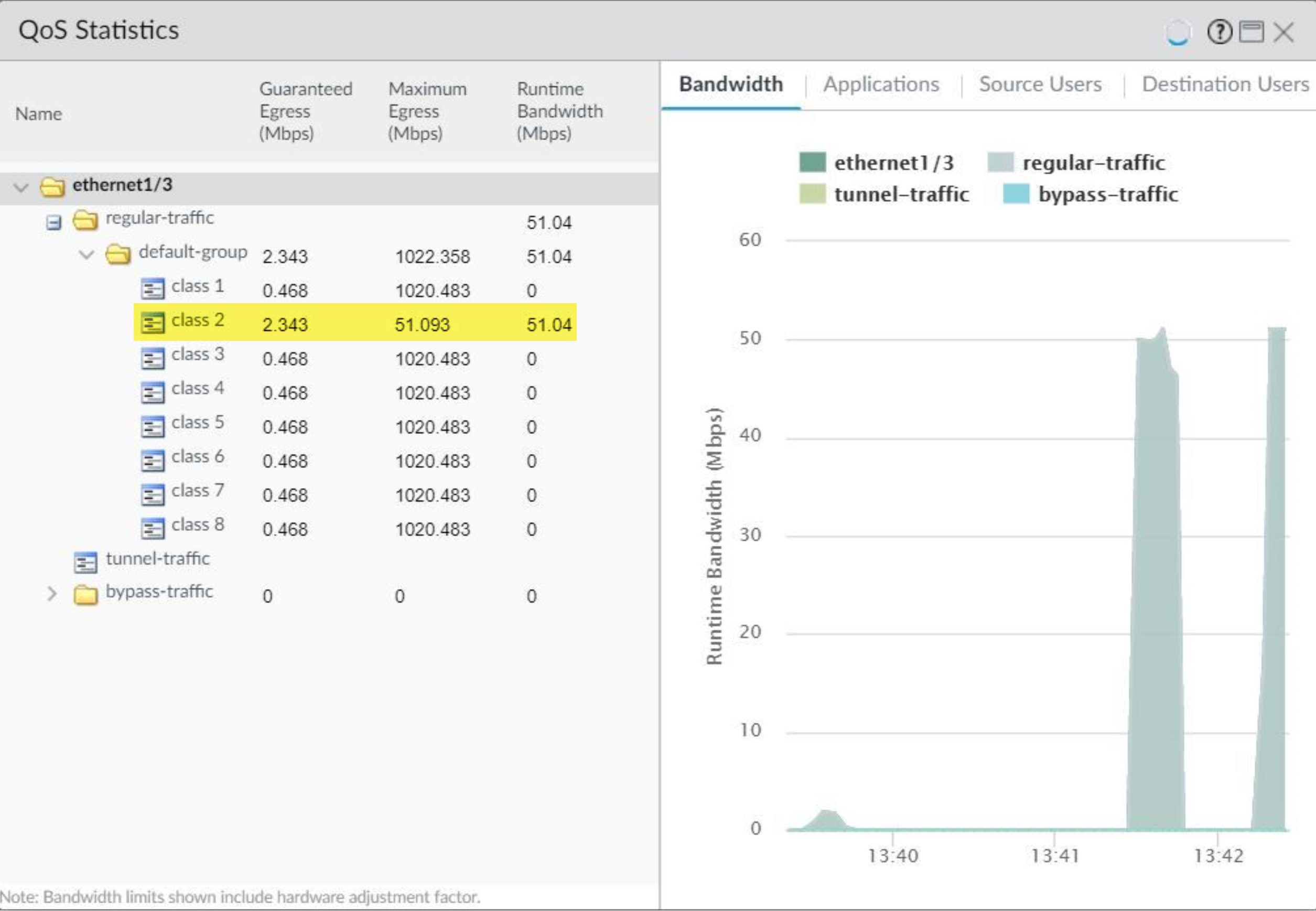

In the following example, the QoS profile rule Limit Web
Browsing limits Class 2 traffic to a maximum bandwidth of 50Mbps
and a guaranteed bandwidth of 2Mbps.
Enable
QoS on a physical interface.
Part of this step includes the option to select clear text
and tunneled traffic for unique QoS treatment.
Check
if the firewall model you’re using supports enabling QoS on a subinterface
by reviewing a summary of the Product Specifications.
Select
Network
QoS
and
Add
a
QoS interface.
Select
Physical Interface
and
choose the
Interface Name
of the interface
on which to enable QoS.
In the example, Ethernet 1/1 is the egress interface for web-browsing
traffic (see Step 2).
Set the
Egress Max
bandwidth
for all traffic exiting this interface.
It is a best practice to always
define the Egress Max value for a QoS interface. Ensure that the
cumulative guaranteed bandwidth for the QoS profile rules attached
to the interface does not exceed the total bandwidth allocated to
the interface.

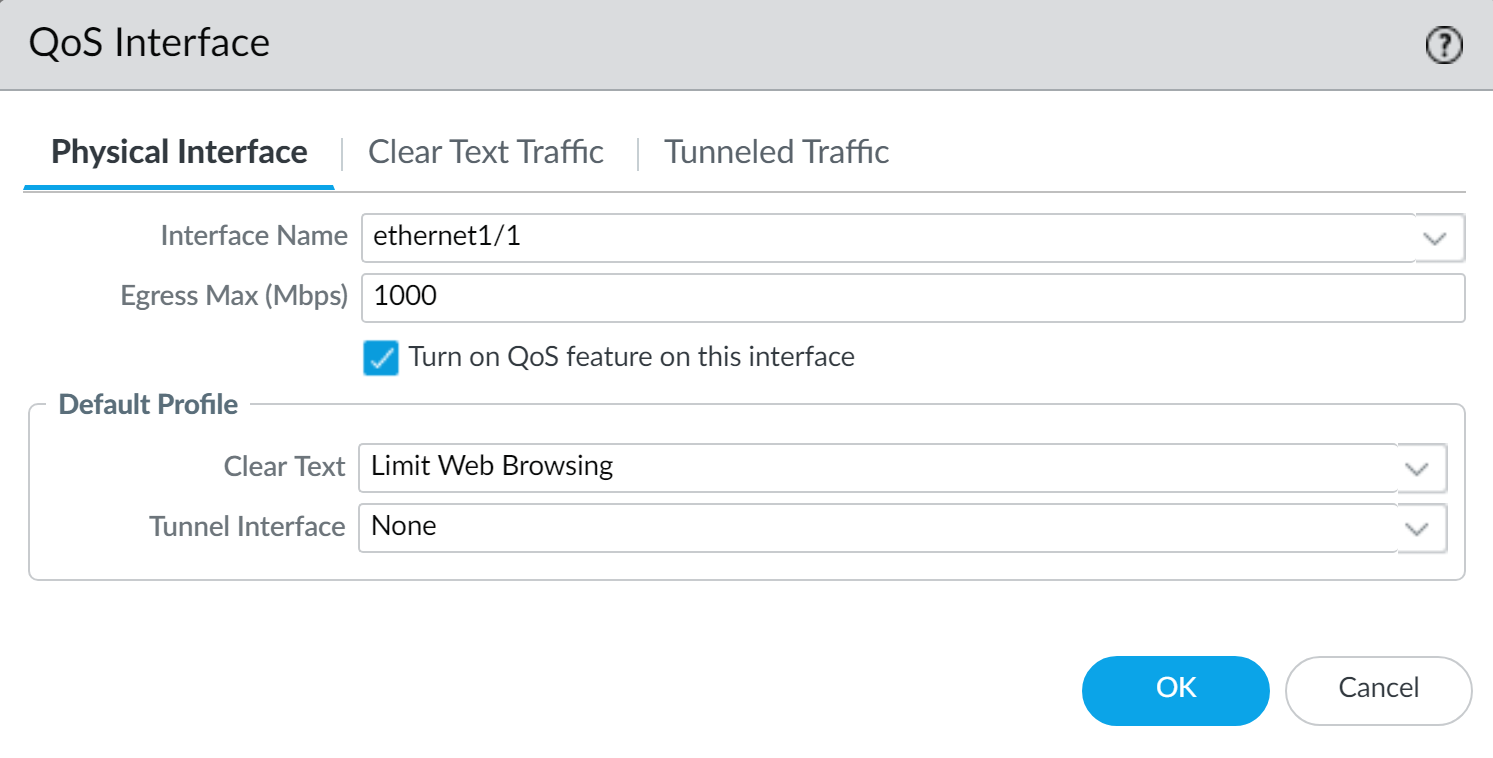

Select
Turn on QoS feature on this interface
.
In the Default Profile section, select a QoS profile
rule to apply to all
Clear Text
traffic exiting
the physical interface.
(
Optional
) Select a default QoS profile rule
to apply to all tunneled traffic exiting the interface.
For example, enable QoS on ethernet 1/1 and apply the bandwidth
and priority settings you defined for the QoS profile rule Limit
Web Browsing (Step 4) to be used
as the default settings for clear text egress traffic.
