Take a Custom Application Packet Capture

1. Using a terminal emulation application, such as PuTTY, launch an SSH session to the firewall.
2. Turn on the application packet capture and define filters.

   admin@PA-220>set application dump on application <application-name> rule <rule-name>

   For example, to capture packets for the facebook-base application that matches the security rule named rule1, run the following CLI command:

   admin@PA-220>set application dump on application facebook-base rule rule1

   You can also apply other filters, such as source IP address and destination IP address.
3. View the output of the packet capture settings to ensure that the correct filters are applied. The output appears after enabling the packet capture.
   In the following output, you see that application filtering is now on based on the facebook-base application for traffic that matches rule1.

   Application setting:
   	Application cache : yes
   	Supernode : yes
   	Heuristics : yes
   	Cache Threshold : 16
   	Bypass when exceeds queue limit: no
   	Traceroute appid : yes
   	Traceroute TTL threshold : 30
   	Use cache for appid : no
   	Unknown capture : on
   	Max. unknown sessions : 5000
   	Current unknown sessions : 0
   	Application capture : on
   	Max. application sessions : 5000
   	Current application sessions : 0
   	Application filter setting:
   	Rule : rule1
   	From : any
   	To : any
   	Source : any
   	Destination : any
   	Protocol : any
   	Source Port : any
   	Dest. Port : any
   	Application : facebook-base
   	Current APPID Signature
   	Signature Usage : 21 MB (Max. 32 MB)
   	TCP 1 C2S : 15503 states
   	TCP 1 S2C : 5070 states
   	TCP 2 C2S : 2426 states
   	TCP 2 S2C : 702 states
   	UDP 1 C2S : 11379 states
   	UDP 1 S2C : 2967 states
   	UDP 2 C2S : 755 states
   	UDP 2 S2C : 224 states

4. Access Facebook.com from a web browser to generate Facebook traffic and then turn off application packet capture by running the following CLI command:

   admin@PA-220>set application dump off

5. View/export the packet capture.
   1. Log in to the web interface on the firewall and select MonitorLogsTraffic.
   2. In the log entry that you are interested in, click the green packet capture icon
      in the second column.

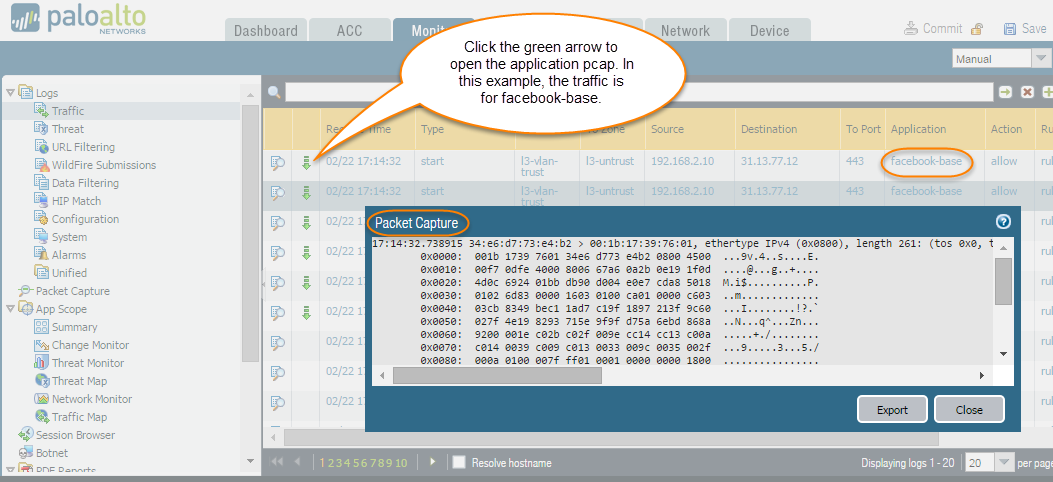

   3. View the packet capture directly or Export it to your computer. The following screen capture shows the facebook-base packet capture.
