    Add the RADIUS Server

    Table of Contents

    Add the RADIUS Server

    Learn to add the RADIUS server on an ION device.
    Where Can I Use This?What Do I Need?
    • Prisma SD-WAN (Managed by Strata Cloud Manager)
    • Prisma SD-WAN
    Two RADIUS servers are supported on an ION device. If you configure only one RADIUS server, then the server is used as the primary RADIUS server. If you have configured two RADIUS servers, then the Priority value of the RADIUS server decides the primary server—lower the priority value, higher the priority.
    RADIUS server with lower priority value is set as primary RADIUS server and the other server as the secondary server. If the priority value is the same for both the servers or not configured, then the first server in the received server list is set as primary and the other server as secondary server.
    1. Navigate to ConfigurePrisma SD-WANION DevicesClaimedConfigure the DeviceAAAStats tab.
    2. Select Configure the device.
    3. Select AAAEditAdd to add the RADIUS servers.
      You can add a maximum of two servers.
    4. Update the following information:
      • Enter a valid IP address (IPv4).
      • Enter a Authentication Port Number between 1-65535. Default port is 1812.
      • Enter a Accounting Port Number between 1-65535. Default port is 1813.
      • Enter a Priority value between 1-255. Lower the priority number, higher is the priority.
      • Enter a Shared secret, the length of the secret must be between 8-64 characters.
      • If there is one only server added, then you can Add one more RADIUS server and/or Delete the existing server details.
    5. Select the Source Interface by selecting the port. Source Interface is a global configuration.
    6. Save your updates.

    Monitor RADIUS Server Stats and Activity

    The RADIUS page displays the current active RADIUS server details where you can monitor the statistics.
    1. Navigate to ConfigurePrisma SD-WANION DevicesClaimedConfigure the DeviceAAAStats to view the device RADIUS Server status.

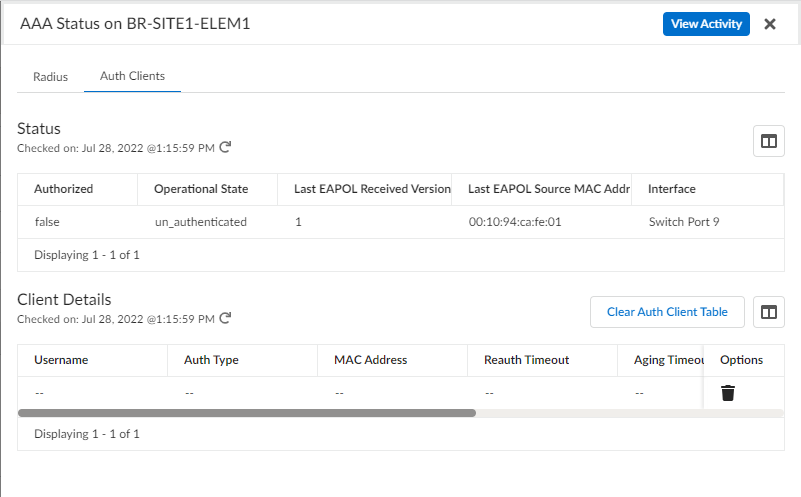

    2. Select the Auth Clients to view the status of authorized clients and details.

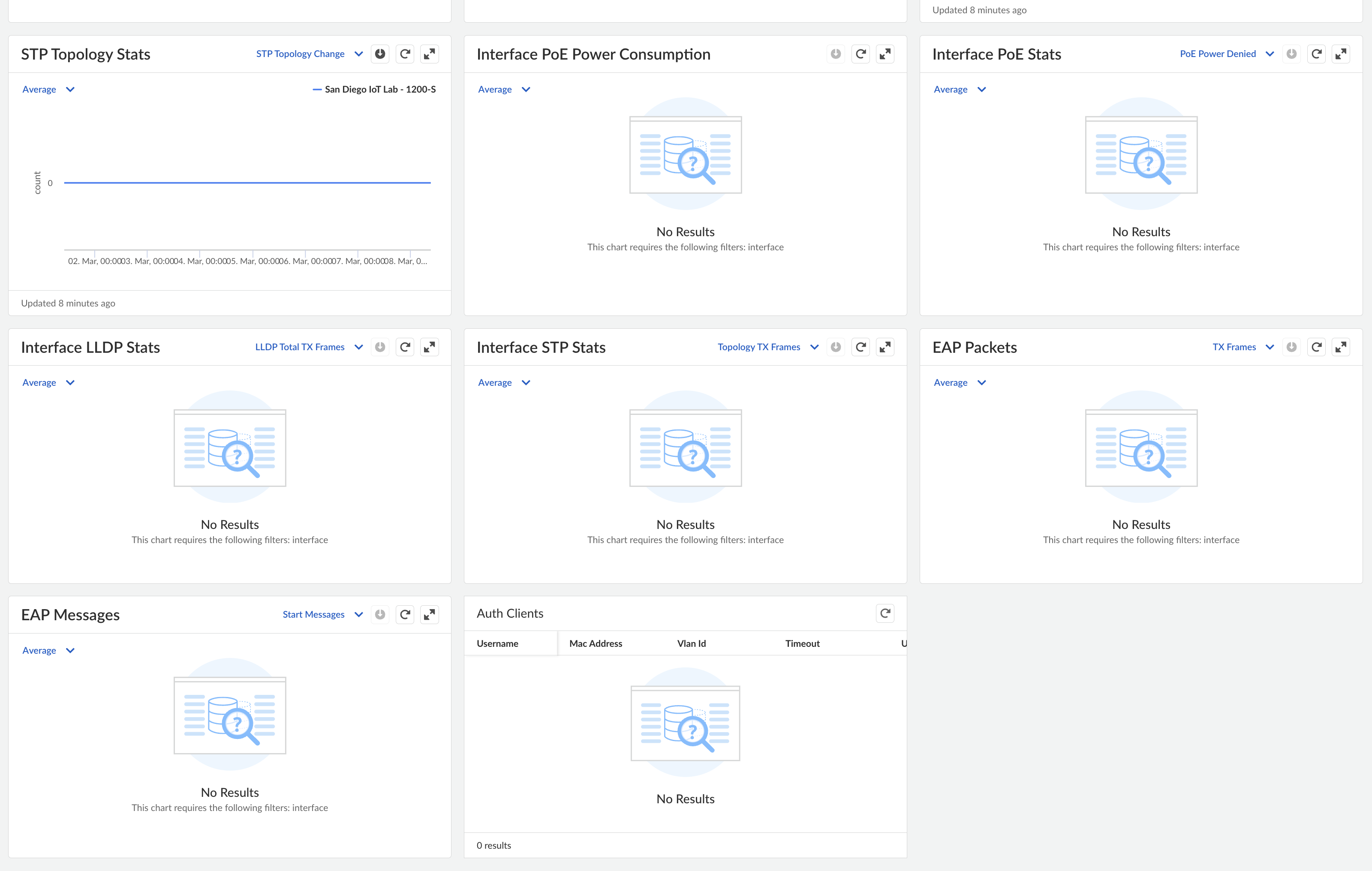

    3. To view the RADIUS server activity charts, navigate to ION Devices, select a device to view the charts.
