| Where Can I Use This? | What Do I Need? |
|---|
- NGFW (Managed by PAN-OS 10.0.3 or a later
PAN-OS release)
- SD-WAN plugin 2.0.1 or a later SD-WAN
release
|
|
Beginning with PAN-OS 10.0.3,
SD-WAN supports a full mesh topology, in addition to
the
hub-spoke topology. The mesh can consist of
branches with or without hubs. Use full mesh when the branches need to communicate
with each other directly. Examples of use cases for full mesh include retailers that
have branches and hubs, and enterprises that operate with or without hubs.

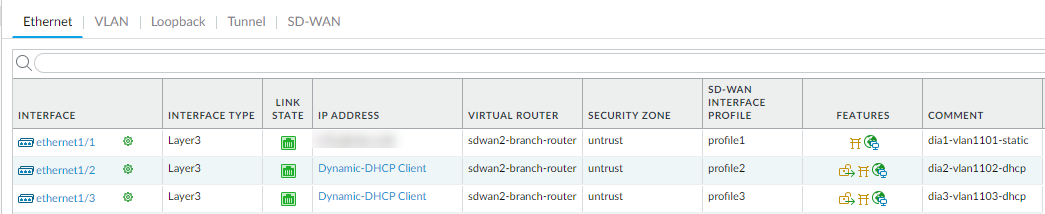

Some firewall interfaces use DHCP to get their IP address. Branch offices often use a
consumer-grade internet service and receive a dynamic IP address, which of course
can change. For this reason, the firewalls require Dynamic DNS (DDNS) so that a DDNS
service can detect the public-facing IP address of the firewall interface that is
running SD-WAN. When you push the DDNS setting to all firewalls, that
notifies each firewall to register its external interface IP address with the Palo
Alto Networks DDNS cloud service so that the IP address is converted to an FQDN.
DDNS is also required because the CPE device from the ISP may be performing source NAT. (The
dynamic IP address may or may not be source-NAT translated). The DDNS service allows
the firewall to register the public-facing IP address with the DDNS server. When you
have devices connect for branch-to-branch mesh, Auto VPN contacts the DDNS service
for those firewalls to pull their public IP addresses that are registered in the
DDNS cloud and uses those public IP addresses to create the IKE peering and the VPN
tunnels. If the CPE device is performing source NAT, when you
add an SD-WAN branch device to be managed by Panorama, you
will enable
Upstream NAT and the NAT IP Address Type will be
DDNS.
For
the CPE device or upstream routing device using source NAT, you
are responsible for creating the one-to-one destination NAT rule
(with no port translation) on that device to translate the external
IP address back to the private IP address assigned to the firewall’s
interface. This translation allows the IKE and IPSec protocols to
come back into the firewall. (Palo Alto Networks doesn’t have access
rights to the upstream CPE or upstream router that is performing source
NAT.)
SD-WAN full mesh with DDNS service requires the following:

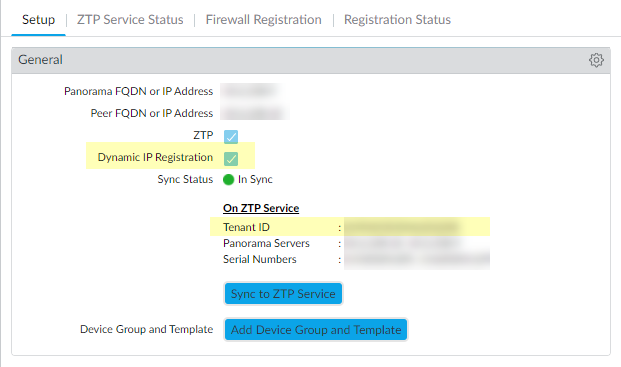

- ZTP plugin 1.0.1 or a later 1.0 release that is downloaded, installed, and configured in order

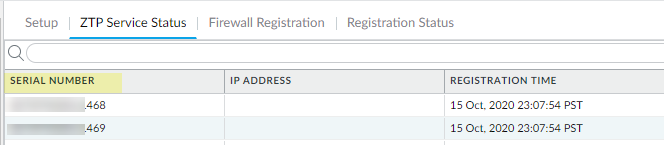

to leverage the DDNS that is associated with ZTP. Panorama must be
ZTP-registered and communicating with the ZTP Service.
- Applications and Threats Content Release Version 8354 or a later
version
- All firewalls participating in full mesh DDNS must be registered
under the same Customer Support Portal (CSP) account.
- All firewalls participating in full mesh DDNS must have the
latest device certificate installed. Properly authenticating the
firewalls, Panorama, and the cloud services are important security
procedures that require the device certificate, and the CSP and
ZTP services.
- If you have a firewall or other network device that controls
outgoing traffic positioned in front of the Palo Alto Networks firewall,
you must change the configuration on that device to allow traffic
from the DDNS-enabled interfaces to the following FQDNs:
- https://myip.ngfw-ztp.paloaltonetworks.com/ (to
reach whatsmyIP service)
- https://ngfw-ztp.paloaltonetworks.com/ (to
reach DDNS registration service)
