the qualifying users of
Strata Logging Service using the new license that comes with one
year log retention.
Cloud NGFW for AWS deployments - for Cloud NGFW for AWS resources, Strata Logging Service dynamically allocates total storage based on
usage.
Strata Logging Service is a cloud-based
service for secure storage of Palo Alto Networks firewall logs regardless
of form factor, location, or scale. When purchasing Palo Alto Networks
devices or services, log storage is an important consideration.
Ensuring sufficient log retention enables operations by ensuring
data is available to administrators for troubleshooting and incident response.
Maintaining a healthy backlog of data allows you to fully utilize
various Palo Alto Networks products.
Sizing Considerations
When planning a log
collection infrastructure, there are some considerations that dictate
how much storage needs to be provided:
Average size of
a log.
Log rate for NGFWs.
Throughput and number of users for Prisma Access.
Desired retention period.
Log Sizes
All firewall logs (including Traffic, Threat, URL, etc.) have an
average size of 2500 bytes when stored in Strata Logging Service. This number may
change as new features and log fields are introduced. When this happens, the SLS Estimator will be updated to reflect the current
status.
Log Rate
For both physical and virtual firewall
platforms, there are several methods for calculating log rate based
on predefined connections-per-second.
Throughput and Users
Occasionally, it is not practical to directly measure or
estimate what the log rate will be. Examples of these cases are when sizing for Prisma Access. Different use cases, such as remote networks and mobile users, use
different metrics, like throughput and the number of users.
Log Retention
There are several, mostly regulatory,
factors that drive log storage requirements. Users may need to meet
compliance requirements for HIPPA, PCI, or Sarbanes-Oxley:
There
may be other governmental or industry standards, including some internal
standards within your company.
Methods for Sizing
You can size storage for
Strata Logging Service using three different methods:
Based
on log rate: This will be the most accurate method.
Based on throughput: This is used when sizing storage for Prisma Access (Remote
Networks).
Based on user count: This is used when sizing storage for Prisma Access (Mobile
Users).
Calculate Storage with the Strata Logging Service Estimator
You can use this app to estimate the amount of Strata Logging Service storage you may need to purchase.
Select which products you will be using in your network, and enter the
necessary metrics mentioned above, to estimate your recommended purchase for
sufficient log retention.

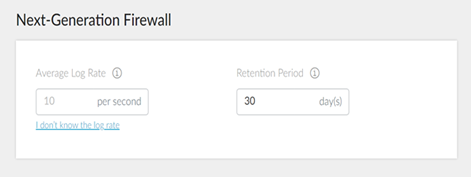

Next-Generation Firewall
The Next-Generation Firewall section allows you to size based on Log Rate:
This is a traditional log-rate based estimator for firewalls. The only input
required is log rate and desired retention date (in days).

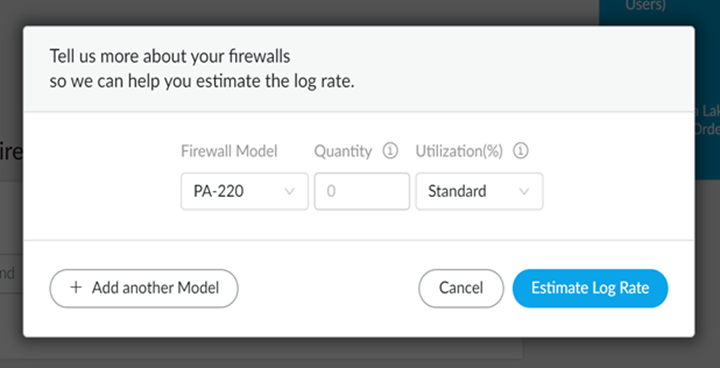

If you are unable to calculate your own log rate, select I don’t know the log
rate to estimate your log rate using the number of deployed firewalls and
their utilization percentages.

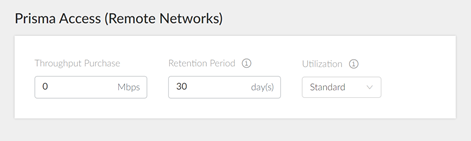

Prisma Access (Remote Networks)
The Prisma Access (Remote Networks) section allows you to size based on
bandwidth:
This option requires more data to provide an accurate number. Prisma Access (Remote Networks) is sold according to throughput. When 100Mbps is
purchased and allocated to a location, it's not likely that the link will see 100%
utilization all of the time. In addition to entering the throughput purchased, the
estimator requires desired retention period (in days) and utilization data for
production and non-production hours.

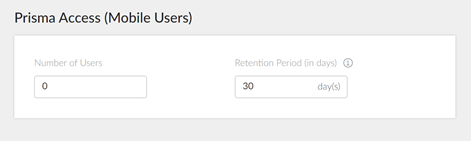

Prisma Access (Mobile Users)
The Prisma Access (Mobile Users) section allows you to determine how much
storage you need based on the number of mobile users:
The only input required is the number of users and desired retention period
(in days).

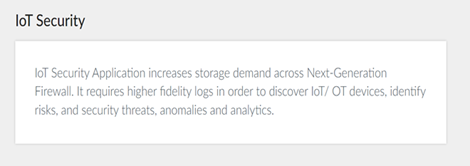

IoT Security
The IOT Security section allows you to determine how much storage you need based on
Cortex XDR utilization:
IoT Security increases storage demand across firewalls. It requires Enhanced
Application Logs, which are streamed in order to discover IoT/OT devices, identify
risks, security threats, and anomalies, and to perform analytics. When you select
this option, the estimator automatically calculates the increase in storage demand
for all other sections highlighted.
For a traditional NGFW deployment, log rate will still yield the most accurate
numbers for log storage. In cases where measuring or estimating the log rate isn't
practical, you can size based on bandwidth using the Prisma Access (Remote
Networks) section.
