View Status of your Strata Logging Service Instance

Table of Contents

View Status of your Strata Logging Service Instance

The Strata Logging Service dashboard contains widgets that help you monitor log storage and ingestion.

Where Can I Use This?	What Do I Need?
NGFW, including those funded by Software NGFW Credits Prisma Access	`Strata Logging Service`

The view status dashboard does not apply to:

the qualifying users of Strata Logging Service using the new license that comes with one year log retention.

The Dashboard gives you the latest status of your Strata Logging Service instance. It displays several widgets that report on various metrics that you can use to assess the health of the instance.

If you are using Strata Cloud Manager to manage Strata Logging Service, click SettingsStrata Logging ServiceOverview to check the status of your Strata Logging Service instance.

Widget	Description

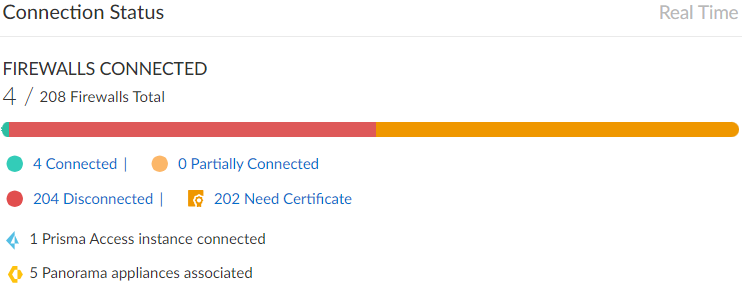

Connection Status	Displays the number of firewalls associated with your Strata Logging Service tenant and identifies them with each of the following statuses: Connected—The firewall has an active channel through which it is sending session logs to Strata Logging Service. Partially Connected—The firewall does not have an active channel through which it is sending session logs to Strata Logging Service. However, it is sending Enhanced Application logs on a session-less channel. Disconnected—The firewall does not have an active channel through which to send sessions logs to Strata Logging Service, and it is not sending Enhanced Application Logs. Need Certificate—The firewall does not have the certificate to connect to Strata Logging Service Click on any of these statuses to view the relevant firewalls on the Inventory page. Below the connection statuses, you can see whether a Panorama is associated with your Strata Logging Service instance. You can also see how many firewalls in your customer support account are available for onboarding. Clicking the text launches firewall onboarding.

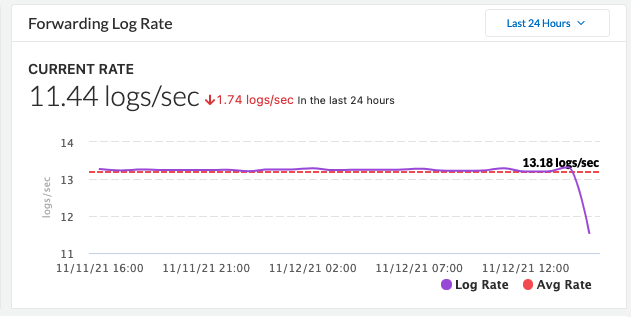

Forwarding Log Rate	Provides a graph of the logs that Strata Logging Service is forwarding to an external solution. The graph shows the current (avg over the last 5 mins) forwarding log rate for the tenant, how that rate varies from the average over time, and the trend of the log rate over time. You can choose a time period of 24 hours, 7 days, or 30 days.
Forwarding Log Table	Displays the logs that Strata Logging Service is forwarding to external destinations, organized by destination. Profile Type—The type of log forwarding profile that is forwarding logs to the destination. Profile Name—The name of the log forwarding profile that is forwarding logs to the destination. Log Types Forwarded—The types of logs that Strata Logging Service is forwarding to the destination. Average Forwarding Rate—The average rate at which Strata Logging Service is forwarding logs to the destination. Forwarding Log Count—The number of logs that Strata Logging Service is forwarding to the destination. Retry Log Count—The number of logs that did not arrive at the destination. Forwarding Log Size—The size of the logs that Strata Logging Service is forwarding to the destination.

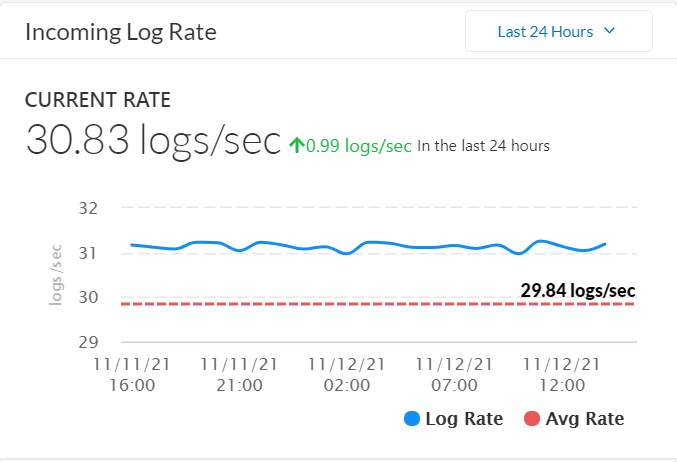

Incoming Log Rate	Provides a graph of the logs that Strata Logging Service is ingesting. The graph shows the current (average over the last 5 minutes) incoming log rate for the tenant, how that rate varies from the average over time, and the trend of the log rate over time. You can choose a time period of 24 hours, 7 days, or 30 days. If you have enabled enhanced application logging on any firewalls or `Prisma Access`, the incoming log rate will include that as well.
Incoming Log Table	Displays the logs that Strata Logging Service is receiving from connected devices, organized by log type. You can Search for specific information in the table as well as select a time range of Last 24 Hours, Last 7 Days, or Last 30 Days. Actual Retention—The number of days that Strata Logging Service has stored the logs. Target Retention—The number of days that you have set for Strata Logging Service to store logs. Logs older than this value are deleted. Avg Incoming Log Rate—The average rate at which your devices are sending logs to Strata Logging Service. Storage Used—The amount of storage used out of the storage you have allocated for the log type.
License Information	Displays your license expiry date with a countdown from the current date to help you know when it’s time to renew. Shows instance details such as name, tenant ID, and serial number to quickly help Customer Support identify your instance if an issue arises.

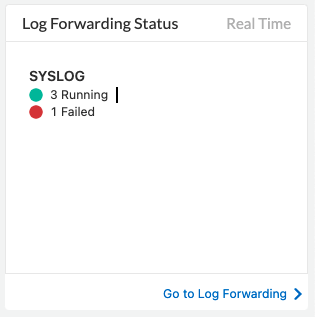

Log Forwarding Status	Provides the status of the different log forwarding profiles that you have configured to stream logs from Strata Logging Service to external sources like syslog servers or SIEMs. A log forwarding profile can have the following states: Running—The log forwarding profile is ready to forward logs if the destination is reachable and ready to receive logs. Failed—The log forwarding profile is not sending logs to the destination. Pending—Strata Logging Service is setting up your log forwarding profile. This is a temporary state when you create or modify a profile.

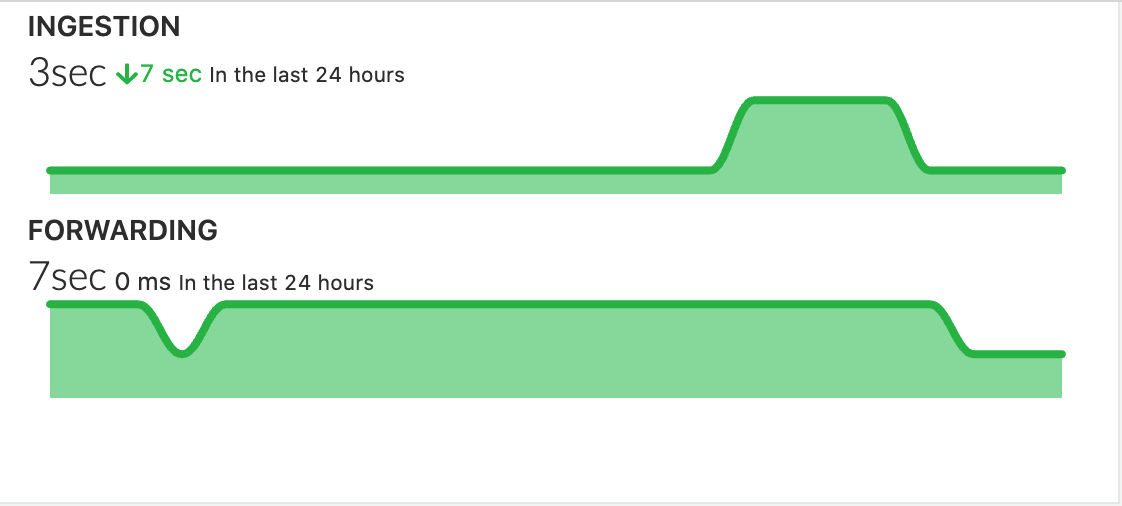

Latency	Displays the latency both for ingestion and log forwarding. Ingestion latency is the time between when a log is generated on the firewall or `Prisma Access` to when it becomes available in `Strata Logging Service` for querying. Log Forwarding latency is the time between when the log is generated on the firewall or `Prisma Access` to when it becomes available in `Strata Logging Service` for log forwarding. The value presented here is the P50, which means that Strata Logging Service will receive 50% of the logs with a lower latency. This widget presents the real-time data for all logs received by Strata Logging Service in the last five minutes. This widget also provides a comparison of the real-time latency with the average of the past 24 hours.

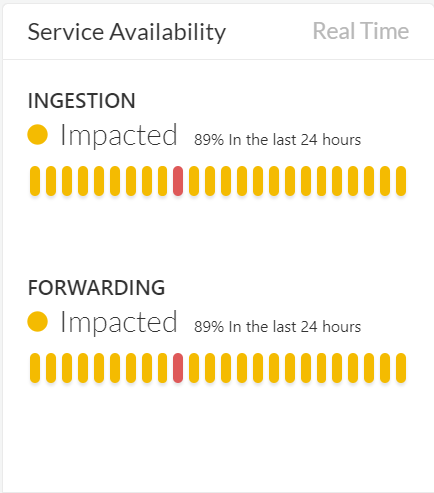

Service Availability	Provides the availability of the ingestion and log forwarding components within Strata Logging Service. This widget shows real-time availability as well as hourly availability over the last 24 hours. The components can have the following states: Available: The ingestion or log forwarding components are working perfectly fine. Impacted: The ingestion or log forwarding components are in a degraded state that is causing a processing delay for ingestion and log forwarding. You will not lose logs, but you might see a delay in log availability for querying and log forwarding. Unavailable: The ingestion or log forwarding components are down and causing log loss.

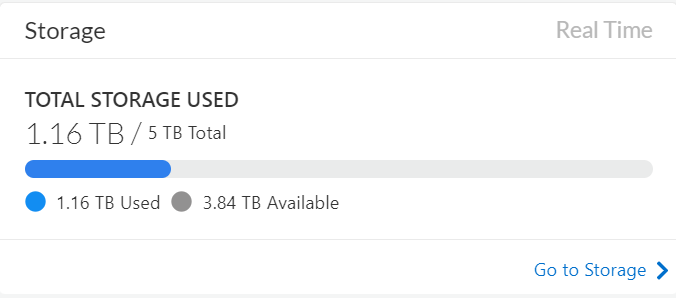

Storage	Shows the total amount of storage that you have purchased for your Strata Logging Service tenant and how much you have used. Strata Logging Service retrieves this information in real-time, so it might differ from the information shown in the StorageStatus/Configuration, which updates at a different interval. If you are using Strata Cloud Manager to view or configure storage quota, click SettingsStrata Logging ServiceStorage Status / Configure Quota.
