    VM-Series Performance

    VM-Series firewall performance.
    Where Can I Use This?What Do I Need?
    • VM-Series deployment
    • VM-Series 10.x or above
    • Panorama running PAN-OS 10.1.x or above versions
    • Customer Support Portal (CSP) account with one of the following user roles:
      • Superuser, Standard User, Limited User, Threat Researcher, AutoFocus Trial Role, Group superuser, Group Standard User, Group Limited User, Group Threat Researcher, Authorized Support Center (ASC) User, and ASC Full Service User.
      • Superuser access to the VM-Series firewall
    For a complete listing of all VM-Series firewall features and capacities, refer to the firewall comparison tool . Use this information for VM-Series performance characteristics.

    PacketMMAP and DPDK Driver Support

    Single-root input/output virtualization (SR-IOV) relies on communication between virtual function (VF) drivers on the VM-Series firewall, and physical function (PF) drivers on the host (the hypervisor). The host uses PF drivers to talk to its physical NICs, and the VM-Series firewall uses VF drivers to talk to the PF drivers.

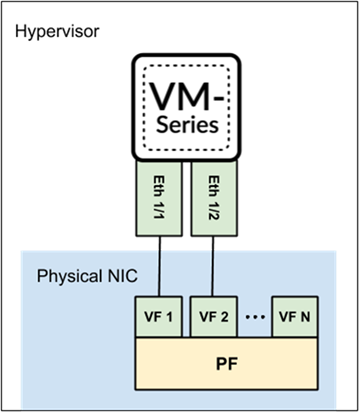

    The following diagram is a simple visualization of that concept.
    SR-IOV
    Why use SR-IOV? SR-IOV is a packet acceleration technology that allows a virtual machine to directly access packets from the NIC. In contrast, when using a virtual switch, the host processes the packets, send the packets through a virtual switch, and then the virtual machine receives its packets.
    In the Compatibility Matrix, PacketMMAP Driver Versions lists both the host version and the native driver version on the VM-Series firewall. For example, i40e on the host, and on the firewall, i40e (for PCI-passthrough) and i40evf (for SR-IOV).
    For SR-IOV, let's consider a NIC that uses the i40e PF driver. The host communicates with the NIC via the i40e driver. The VM-Series firewall can use its VF driver (i40evf) to directly communicate with the host's PF driver. This allows VM-Series firewall direct access, which improves packet processing speed. To ensure compatibility, install a host PF driver version that is later than the native PF driver version.
    PCI-Passthrough
    Why does VM-Series firewall have native PF drivers? As mentioned in Options for Attaching VM-Series on the Network, when using PCI-passthrough, the NIC is reserved for the VM-Series firewall, so the host (or other guests on the host) cannot access the NIC. In a PCI-passthrough configuration, the VM-Series firewall uses its native PF driver to communicate directly with the host NIC.
    Refer to the PacketMMAP Driver Versions list to determine which PF driver version to install on the host. Install a PF version that is higher than VM-Series firewall native PF driver.
    Refer to Enable SR-IOV on ESXi and Enable SR-IOV on KVM for PCI-Passthrough.
    DPDK
    PAN-OS has two packet processing modes—DPDK (default) and MMAP—and each mode has a corresponding native driver on the VM-Series firewall. For example, if the firewall is in DPDK mode, the firewall uses the DPDK i40evf driver version to communicate with the host's i40e driver (when using SR-IOV). Alternatively, when the firewall is Packet MMAP, it will use a different i40evf driver version to communicate with the host's i40e driver.
    You can enable DPDK on the host (the hypervisor), or on the guest (the VM-Series firewall). Enabling both yields the best results.
    • Compiling OVS with DPDK is part of enabling DPDK on the host.
      Refer to Configure OVS and DPDK on the Host.
    • VM-Series DPDK enables the native DPDK driver on the VM-Series firewall, so DPDK does not need to be enabled on the host, but it is recommended for best performance.

    Enable NUMA Performance Optimization on the VM-Series

    To improve performance of your VM-Series firewalls, you can enable non-uniform memory access (NUMA) performance optimization. When NUMA performance optimization is enabled, the VM-Series firewall dataplane uses vCPUs attached to NUMA node 0. The VM-Series firewall dataplane uses vCPUs belonging to NUMA node 0 only. The VM-Series management plane uses core 0 and the remaining vCPUs on NUMA node 0 can be used by the VM-Series dataplane. This feature requires PAN-OS 10.1.1 or later and VM-Series plugin 2.1.1 or later.
    NUMA performance optimization is disabled by default in PAN-OS 10.1.
    If you have a device that contains 64 cores across two NUMA nodes, when NUMA performance optimization is not enabled, the dataplane vCPUs used by the VM-Seriesfirewall might be on different nodes, which impacts performance. For example, if your system is organized shown in the following example and you deploy a VM-Series firewall with 32 total cores with 24 dataplane cores.
    Without NUMA performance optimization, the VM-Series firewall uses cores 1 through 15 on Node 0 and 16 to 24 on Node 1 because it assigns cores in numerical order, regardless of the node location. With NUMA optimization enabled, the VM-Series only uses cores on Node 0, in this case 1 through 15 and 33 through 39, regardless of the numerical order. Any cores not used by the dataplane are assigned to the management plane.
    With NUMA performance optimization with custom dataplane core settings, the NUMA settings takes precedence. For example, for a 64 CPU VM with NUMA performance optimization enabled and 47 dataplane core setting, the NUMA settings take precedence.
    If the number of cores assigned to your VM-Series firewall exceeds the number of vCPUs on Node 0, the VM-Series uses all the cores on Node 0 but does not use any cores from other nodes. For example, if you assign 30 cores to your VM-Series firewall but Node 0 has only 24 cores, the VM-Series firewall will only use the 24 cores on Node 0 for the dataplane.
    1. Log in to the VM-Series CLI.
    2. Execute the following command.
      request plugins vm_series numa-perf-optimize enable on
      Previous NUMA performance optimization: None
      Requested NUMA performance optimization: Enabled
      Please reboot the PA-VM.
    3. After the reboot is complete, log in to the VM-Series CLI and verify that NUMA optimization was enabled.
      show plugins vm_series numa-perf-optimize
      NUMA performance optimization: Enabled
    4. Verify the number of dataplane cores.
      show plugins vm_series dp-cores
      Current DP cores:31 configured custom DP cores: 47 (Current total cores: 64)
    5. To disable NUMA performance optimization, use the following command. This command requires you to reboot the VM-Series firewall.
      request plugins vm_series numa-perf-optimize enable off

    Enable ZRAM on the VM-Series Firewall

    If your VM-Series firewall experiences low or out-of memory conditions, you can enable ZRAM to improve memory usage. ZRAM, also called compcache (compressed cache), is a Linux kernel module for creating a compressed block device in RAM. When enabled, ZRAM is used as swap disk and allows for faster I/O of swap because it resides in the RAM.
    Complete the following steps to enable ZRAM.
    1. Log in to the VM-Series CLI.
    2. Find the total memory on the VM by using the following CLI command.
      grep pattern "MiB Mem :" mp-log mp-monitor.log
      KiB Mem :  9202656 total,   566504 free,  3475840 used,  5160312 buff/cache
KiB Mem :  9202656 total,   497112 free,  3481944 used,  5223600 buff/cache
KiB Mem :  9202656 total,   511744 free,  3466768 used,  5224144 buff/cache
KiB Mem :  9202656 total,   511668 free,  3466340 used,  5224648 buff/cache
KiB Mem :  9202656 total,   512124 free,  3465700 used,  5224832 buff/cache
KiB Mem :  9202656 total,   511436 free,  3465976 used,  5225244 buff/cache
KiB Mem :  9202656 total,   510984 free,  3465944 used,  5225728 buff/cache
    3. Convert the above total memory from KB to MB. For example:
      9202656 / 1024 = 8987 MB
      Take note of the total memory value in MB. You will need this value in the next step.
    4. Enable ZRAM using the following two CLI commands.
      debug software kernelcfg zram-swap enable
      debug software kernelcfg zram-swap modify host-mem-threshold <total-memory-in-MB>
    5. Reboot the VM-Series firewall.
    6. Verify that ZRAM is enabled.
      debug software kernelcfg zram-swap show run-time
      debug software kernelcfg zram-swap show run-time

ZRAM MODULE:            LOADED
ZRAM SWAP:              ON
ZRAM DEVICE NUM:        1
ZRAM MEM_LIMIT(MB):     1350
ZRAM DISK_SIZE(MB):     4000
ZRAM ORI_DATA_SIZE(B):  22163456
ZRAM COMP_DATA_SIZE(B): 1957437
ZRAM MEM_USED_TOTAL(B): 2465792
      You can verify ZRAM status in the pan_kernelcfg.log.
      INFO: Zram swap is turned on now
INFO: Done with ZRAM mem_limit configuration
