Network Segments Configuration
Device Security uses network segments to identify unique devices that use a shared
IP address block, and to scope device context to the firewalls and virtual systems
that belong to each segment.
| Where Can I Use This? | What Do I Need? |
|---|
|
|
One of the following subscriptions:
Device Security subscription
Precision AI bundle subscription
Device Security X subscription
|
Device Security uses network segments to identify devices with
overlapping IP addresses.
If you are using
Device Security in
Strata Cloud Manager, log in as a user with the
Superuser role, and select . If you are using the
Device Security portal, log in as a user with
owner or administrator privileges, and select . There you can add, view, edit, and delete network segments used for
identifying
devices with overlapping IP addresses.
Network segments rely on IP address-based site assignment to be effective. While you can
manage network segments when using firewall-based site assignment, they won't have any
effect.
There are two sections on the Network Segments Configuration page.
At the top is a title bar, with titles for Networks, Network Segments
Configuration, and Sites tabs. There is a global filter that controls the
content displayed on the page by site, and the option to filter or query the
content displayed on the page by firewall.
The Segments section is a table with information about individual network segments.
Start with
Create and Manage Network Segments and
Reset and Delete Network Segments to learn
how to work with
Device Security-managed segments in the portal. If your
deployment also uses multi-vsys firewalls and
Device-ID, review the sections
below to compare
Device Security network segments and
PAN-OS device context segments and to plan any migration between the two.
If you have multi-vsys firewalls or use
Device-ID to enforce
Security policies, you should create
PAN-OS device context segments
instead of
Device Security network segments. Device context segments
operate similarly to
Device Security network segments,
but let you assign both firewalls and virtual systems to them.
EAL logs include device context segment identifiers to help
Device Security
identify devices correctly based on the firewall and vsys the device traffic
passes through.
Device Security sends the device context segment identifier back
to
PAN-OS when delivering device context, so you can enforce
Security policies on the correct device when your network uses shared IP address blocks.
Create and Manage Network Segments

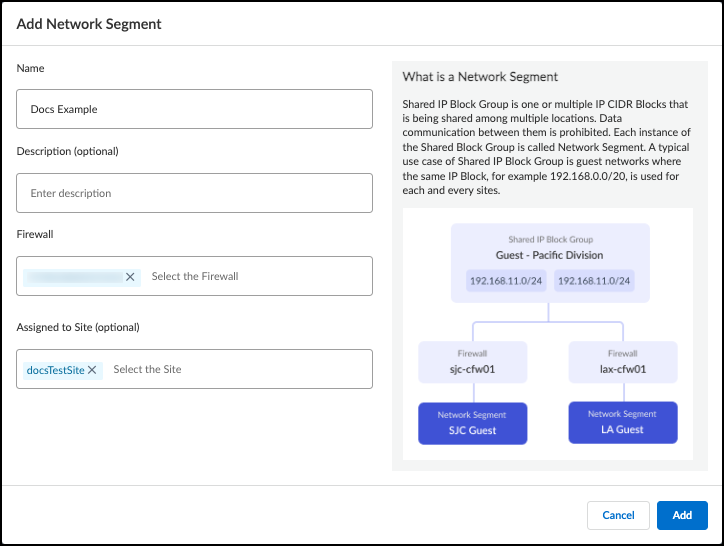

When creating a new network segment, enter a name and one or more firewalls to
assign to the network segment. A network segment can have multiple firewalls
assigned to it, but each firewall can only be assigned to one network segment. If
you enter a firewall that is already assigned to a different network segment, the
old assignment will be removed when you save the new network segment.
Optionally, enter a description and a site assignment for the network segment. A
network segment can be assigned to only one site at a time. If no site is specified,
the network segment is assigned to the default site.
To edit an existing network segment, find the network segment in the Segments table
and click on the name to bring up the edit dialog.
You can create and edit network segments in Device Security only for segments
that Device Security manages. Panorama-managed segments appear in the Segments
table in read-only mode. To create, edit, or reassign firewalls and virtual systems
for a Panorama-managed segment, use Panorama.
Reset and Delete Network Segments
When you reset or delete a network segment, all devices and attributes learned
through the network segment assignment are deleted from the assets inventory.
If you update the firewalls or the sites for a network segment, reset the network
segment. Resetting the network segment ensures that traffic is properly mapped to
the right device and avoids potential duplication or overriding of device

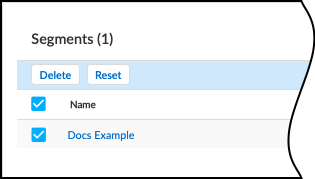

attributes. In the Segments table, select the check boxes next to the network
segments to reset, and then click Reset.
Delete network segments that you no longer need to avoid misidentification of
devices and device attributes. In the Segments table, select the network segments to
delete, and then click Delete. The network segment no longer
appears in the Segments table.
Reset and delete actions in Device Security apply to Device Security-managed
segments. To reset or delete a Panorama-managed segment, remove the firewall or
virtual system assignments in Panorama or delete the segment definition in Panorama,
then push the configuration to the managed firewalls.
