Device Group Push to a Multi-VSYS Firewall
Device group pushes from the Panorama™ management server
to a multi-VSYS managed firewall are bundled into a single job.
Device group configuration changes pushed
manually or from a scheduled configuration
push of a device groups from the Panorama™ management server
to a multi-vsys firewall are
automatically bundled into a single job. When a push is executed
from Panorama to managed firewalls, Panorama inspects the managed firewalls
associated with the device group push. If Panorama detects that
multiple vsys belonging to the same multi-vsys firewall are associated
with a device group push, it bundles the commit job for each vsys
into a single commit job on the managed firewall to reduce the overall
commit job completion time.
If one of the bundled commit jobs fails, then
the entire push fails and you need to push entire the device group
configuration changes from Panorama again. Additionally, if multiple
multi-vsys firewalls are included in a push from Panorama and one push
fails, then the entire push fails to all firewalls included in the
push from Panorama. When you monitor the device group push locally
on the firewall, a single job is displayed rather than multiple
individual jobs. If any warnings are failures occur, an error description
indicating the impacted vsys is displayed.
This functionality is supported for multi-vsys firewalls managed
by Panorama running PAN-OS 10.2 and later releases by default. Palo Alto Networks
recommends that all vsys of a multi-vsys managed firewall be managed by Panorama. After
a successful upgrade to PAN-OS 10.2, a full commit and push from Panorama to managed
firewalls is required to perform an administrator-level push which optimizes
shared object pushes to multi-vsys firewalls as described below. If a full commit and
push is not performed after upgrade, then all subsequent pushes to multi-vsys firewall
fail due to duplicate objects and all shared configuration objects are saved to the
Panorama location, rather than the optimized
Panorama Shared location.

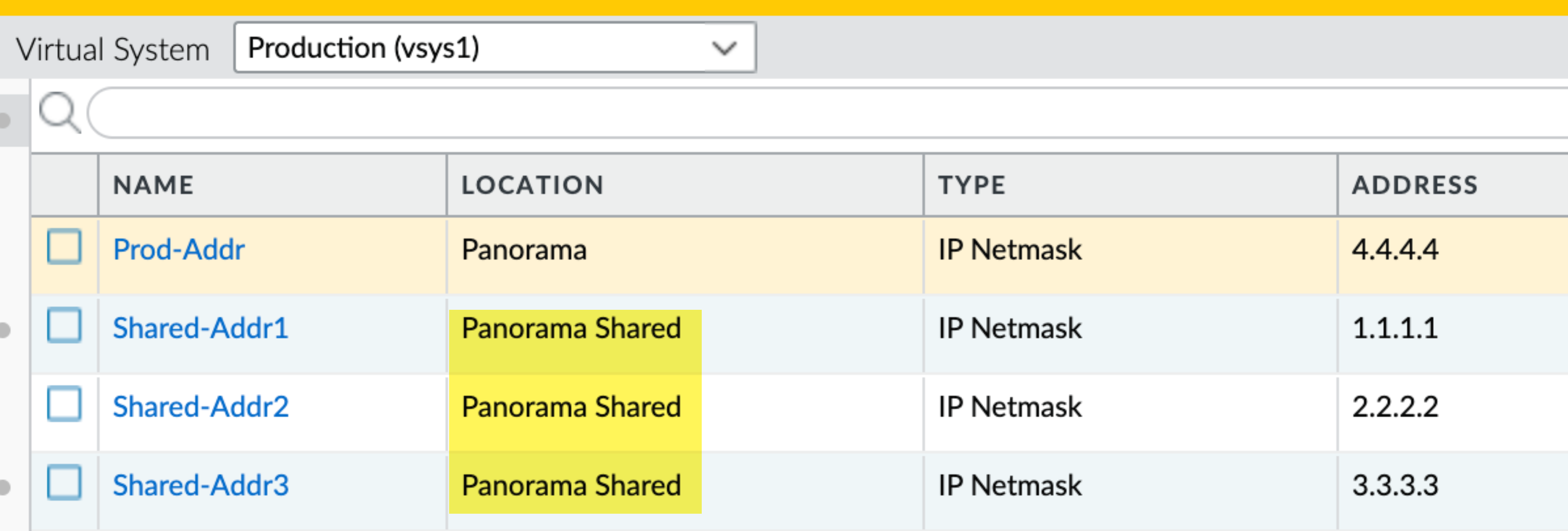

Shared Objects Pushed to a Multi-VSYS Firewall
To reduce the operational burden of scaling configurations
for multi-vsys firewalls, Shared configuration objects pushed to
a multi-vsys firewall are pushed to the Panorama Shared location
on the managed multi-vsys firewall. The Panorama Shared location
is available to all vsys of the firewall, meaning that Shared objects are
not replicated to each vsys.
The following configurations cannot be added to the Shared
Panorama location and are replicated to the Panorama location of
each vsys of a multi-vsys firewall.
- Pre and Post Rules
- External Dynamic Lists (EDL)
- Security Profile Groups
- HIP objects and profiles
- Custom URL objects
- Decryption Profiles
- SD-WAN Link Management Profiles
If a Panorama Shared object is overridden in a device group, a new object with the same name but
with the overridden value is created in the Panorama location of that device group
and pushed to all vsys of a multi-vsys firewall. If the a configuration object with
the same name is present in both the Panorama and the Panorama Shared locations,
preference in the configuration given to the object in the Panorama location as
because it is specific to that vsys on the firewall.

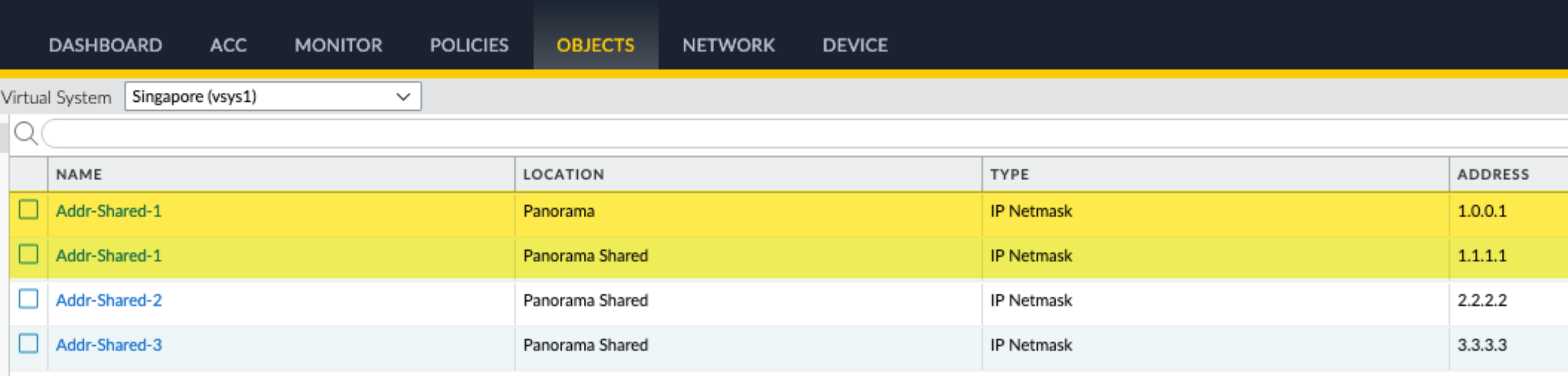

For example, the vsys below shows the Addr-Shared-1 address object
in both the Panorama Shared and Panorama locations. If the
Addr-Shared-1 object is used in a policy rule, the
1.0.0.1 IP address is used.
