Remote Networks: IPSec Termination Nodes and Service IP Addresses
Table of Contents
Remote Networks: IPSec Termination Nodes and Service IP Addresses
Learn about IPSec termination nodes for Prisma Access
remote network deployments that allocate bandwidth by location.
| Where Can I Use This? | What Do I Need? |
|---|---|
|
|
When you onboard a remote network, you associate it with an IPSec Termination
Node, and each IPSec termination node has a Service IP Address
associated with it. You use this address as the peer IP address for your CPE when you set up the
IPSec tunnel for the remote network connection. Each termination node can provide you up
to 1,000 Mbps of bandwidth. Associating more than 1,000 Mbps of bandwidth to a compute
location provides you with more than one Service IP Address.

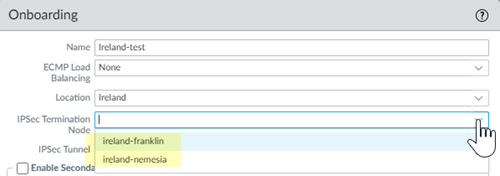

When you onboard a remote network in an Ireland compute location,
you are given a choice of two IPSec termination nodes, because the
total bandwidth is more than 1,000 Mbps.

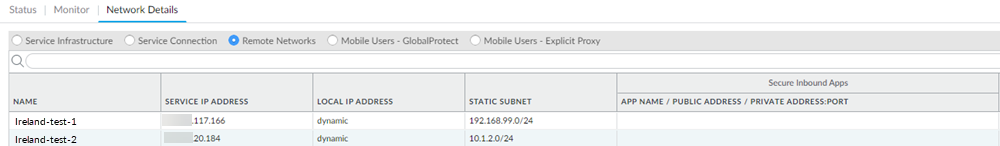

Each IPSec termination node has its own Service
IP Address, as can be seen in .
