Create an Encrypted EDM Data Set Using a Configuration File

Use the Exact Data Matching (EDM) CLI application to create an encrypted hash EDM data set in CSV or TSV format using a configuration file.

Where Can I Use This?	What Do I Need?
NGFW (Managed by Panorama or Strata Cloud Manager) Prisma Access (Managed by Panorama or Strata Cloud Manager)	Enterprise Data Loss Prevention (E-DLP) license Review the Supported Platforms for details on the required license for each enforcement point. Or any of the following licenses that include the Enterprise DLP license Prisma Access CASB license Next-Generation CASB for Prisma Access and NGFW (CASB-X) license Data Security license

Where Can I Use This?

What Do I Need?

NGFW (Managed by Panorama or Strata Cloud Manager)
Prisma Access (Managed by Panorama or Strata Cloud Manager)

Enterprise Data Loss Prevention (E-DLP) license
Review the Supported Platforms for details on the required license for each enforcement point.

Or any of the following licenses that include the Enterprise DLP license

Prisma Access CASB license
Next-Generation CASB for Prisma Access and NGFW (CASB-X) license
Data Security license

Create an encrypted hash Exact Data Matching (EDM) data set using a configuration file included with the EDM CLI application. The configuration file allows you to configure the file parameters for upload ahead of time rather than manually entering each parameter at the time of creation. You can also quickly update an existing EDM data set on the DLP cloud service when you configure the config.properties and upload_config.properties files.

Set Up the EDM CLI Application.
Configure Connectivity to the DLP Cloud Service.
In the upload_config.properties file, you must enter a unique data set name for EDM data set you want to create as the dataset_name. Upload to the DLP cloud service fails if you upload an EDM data set with a data set name that already exists.
Review the Supported EDM Data Set Formats and prepare the EDM data set you want to create.
Navigate to the package-edm-secure-cli-<version>-<platform> directory and open the config.properties file.

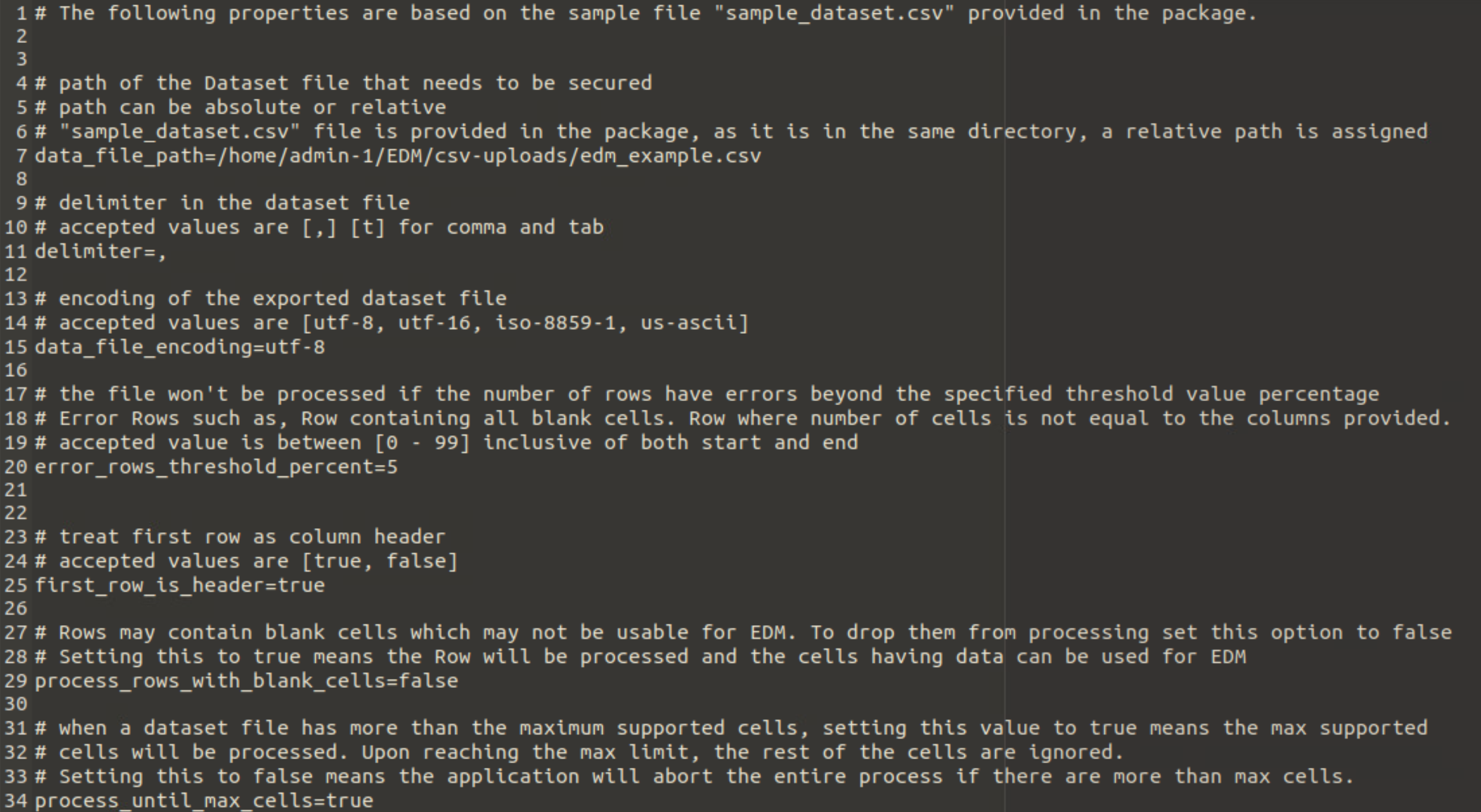

Configure the EDM data set upload parameters.
1. Enter the path of the EDM data set for upload.
2. Enter the delimiter used to specify boundaries between values in the EDM data set.
  The “,” and tab (t) delimiters are supported for EDM data set uploads. An EDM data set might only use one delimiter.
3. Enter the EDM data set encoding method.
4. Enter the error threshold percentage for the EDM data set.
  A secured version of the EDM data set isn’t created if the DLP cloud service encounters errors exceeding the specified error threshold percentage.
5. Specify whether the EDM data set has a header row.
  Enter true if the EDM data set includes a header row.
  Enter false if the EDM data set doesn’t include a header row.
6. Specify whether to allow uploads of EDM data sets that include empty or blank cells.

  Enter true to allow rows that include empty or blank rows in an EDM data set.

  Enter false to reject rows that include empty or blank cells in an EDM data set.
7. Specify whether the EDM CLI application should abort the EDM data set upload if the EDM data set includes more than the maximum number of cells supported.

  Enter true to upload the maximum number of data set cells supported.

  Enter false to abort EDM CLI application if the EDM data set has more than the maximum number of data set cells supported.

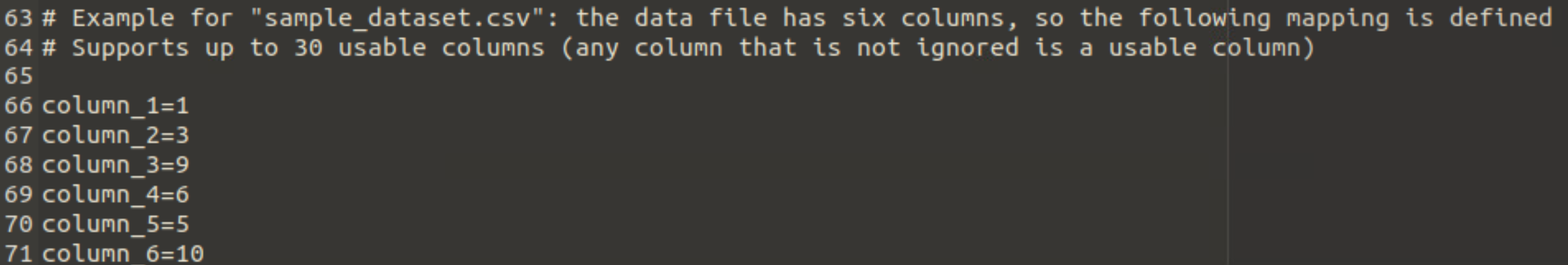

8. Map your columns using the supported Data Types Value to accurately map each column in your EDM data set to a specific Data Type.
  Refer to the README.txt file packaged with the EDM CLI application for the table to map your EDM data set columns to the correct Data Type value.

  When you create an advanced data profile on Strata Cloud Manager, you’re required to add at least one column where the column values occurs up to 12 times in the selected EDM data set for the Primary Field.
  When mapping your columns to a specific Data Type, be sure to include at least one column with up to 12 occurrences across the entire EDM data set. Otherwise, the DLP cloud service is unable to match traffic against the EDM data profile you create using this EDM data set.
9. Select File and Save the configuration file.
Create the EDM data set to the DLP cloud service.
1. Open a terminal and navigate to the package-edm-secure-cli-<version>-<platform> directory where the EDM CLI application is located.
2. Create the encrypted EDM data set.
  Windows
  admin: edm-secure-cli.bat create
  Linux
  admin: ./edm-secure-cli.sh create

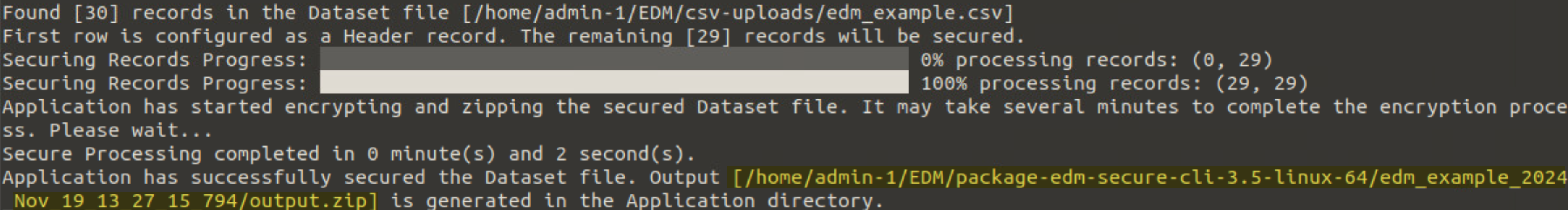

  Entering this command creates a secured copy of the EDM data set in the package-edm-secure-cli-<version>-<platform> directory.
3. Verify that the EDM data set is uploaded to the DLP cloud service successfully.
  A progress bar and success message are displayed to notify you whether the upload is successful.
Verify that the encrypted EDM data set is successfully created.
The EDM CLI application only supports upload of the encrypted EDM data sets it creates to the DLP cloud service.

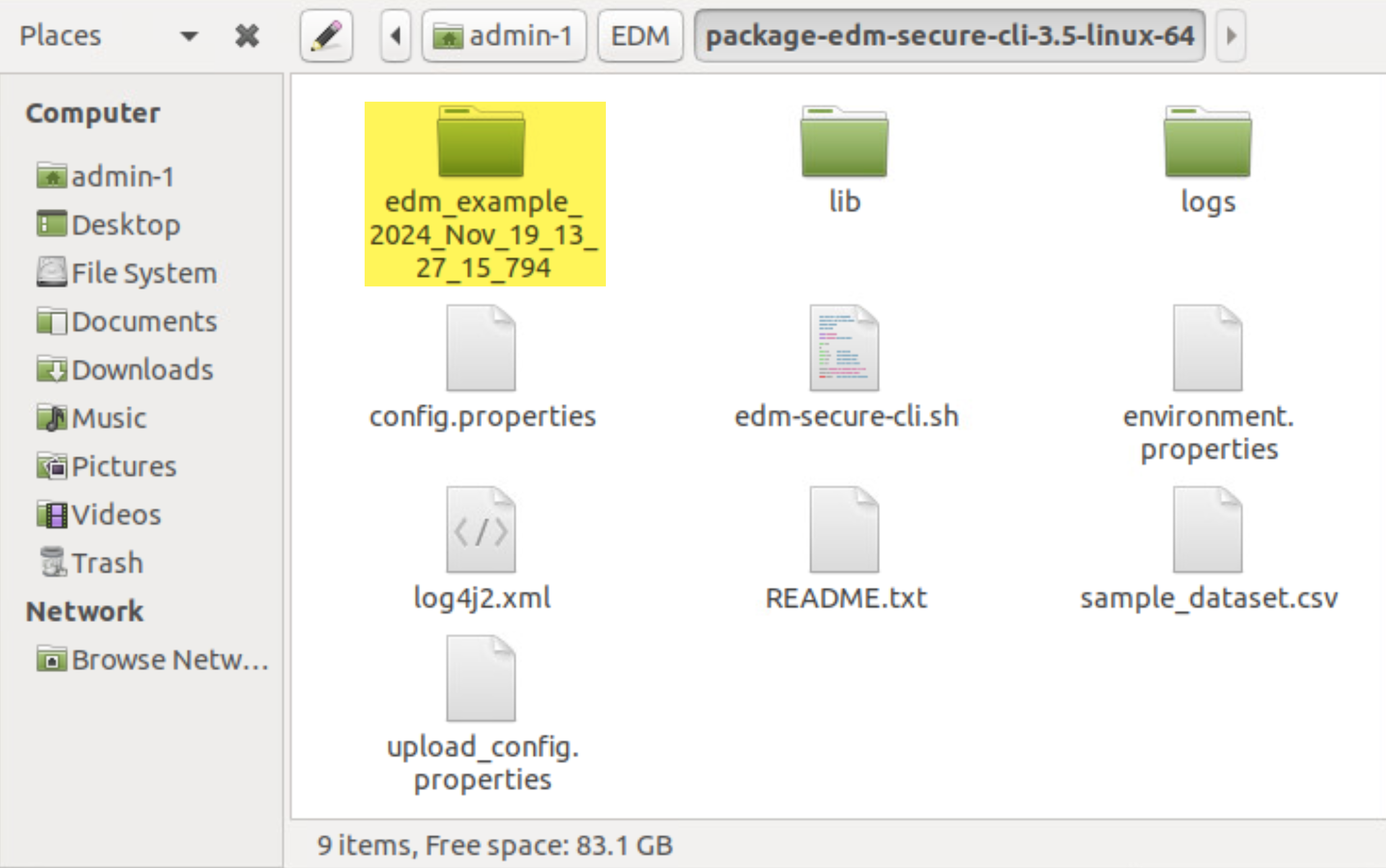

A secured copy of the EDM data set specified is created in the package-edm-secure-cli-<version>-<platform> directory. In the directory, a new folder is created with the name of the EDM data set appended with the date and time it was created. Inside this folder is the encrypted output.zip file containing your EDM data set that is uploaded to the DLP cloud service.
Upload an Encrypted EDM Data Set to the DLP Cloud Service.
