Replace a PA-3200 Series DC Power Supply
Learn how to replace a DC power supply on a PA-3200 Series
firewall.
The following procedure describes how to replace
a DC power supply.
To avoid injury
to yourself or damage to your Palo Alto Networks® hardware or the
data that resides on the hardware, read the
Product Safety Warnings.
Power off the DC power source that
is connected to the failed power supply, before you continue to
the next step.

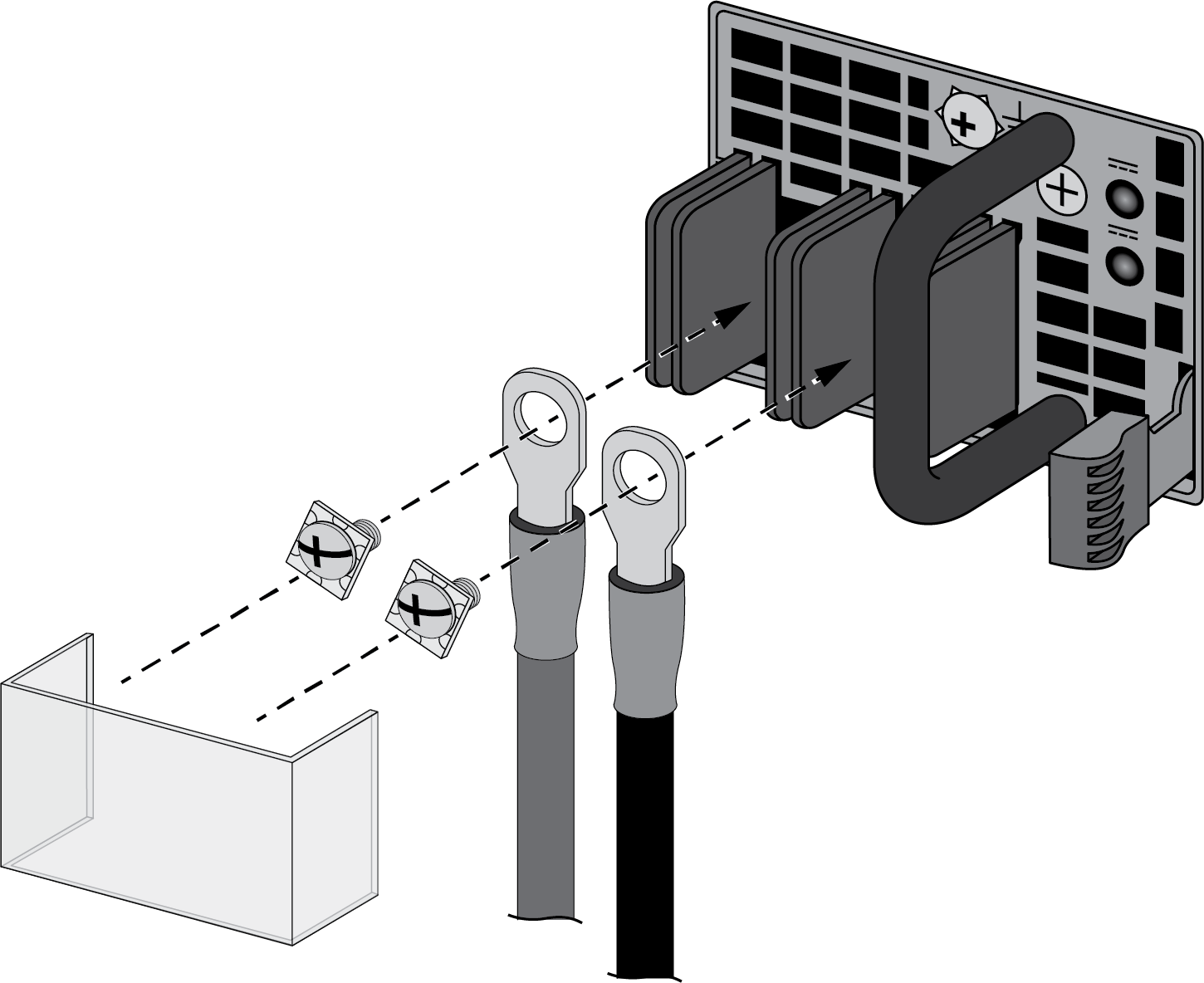

Remove the plastic cover that protects the DC input terminals
and then use a Phillips-head screwdriver to remove the screws holding
the positive and negative DC cables to the DC input terminals.

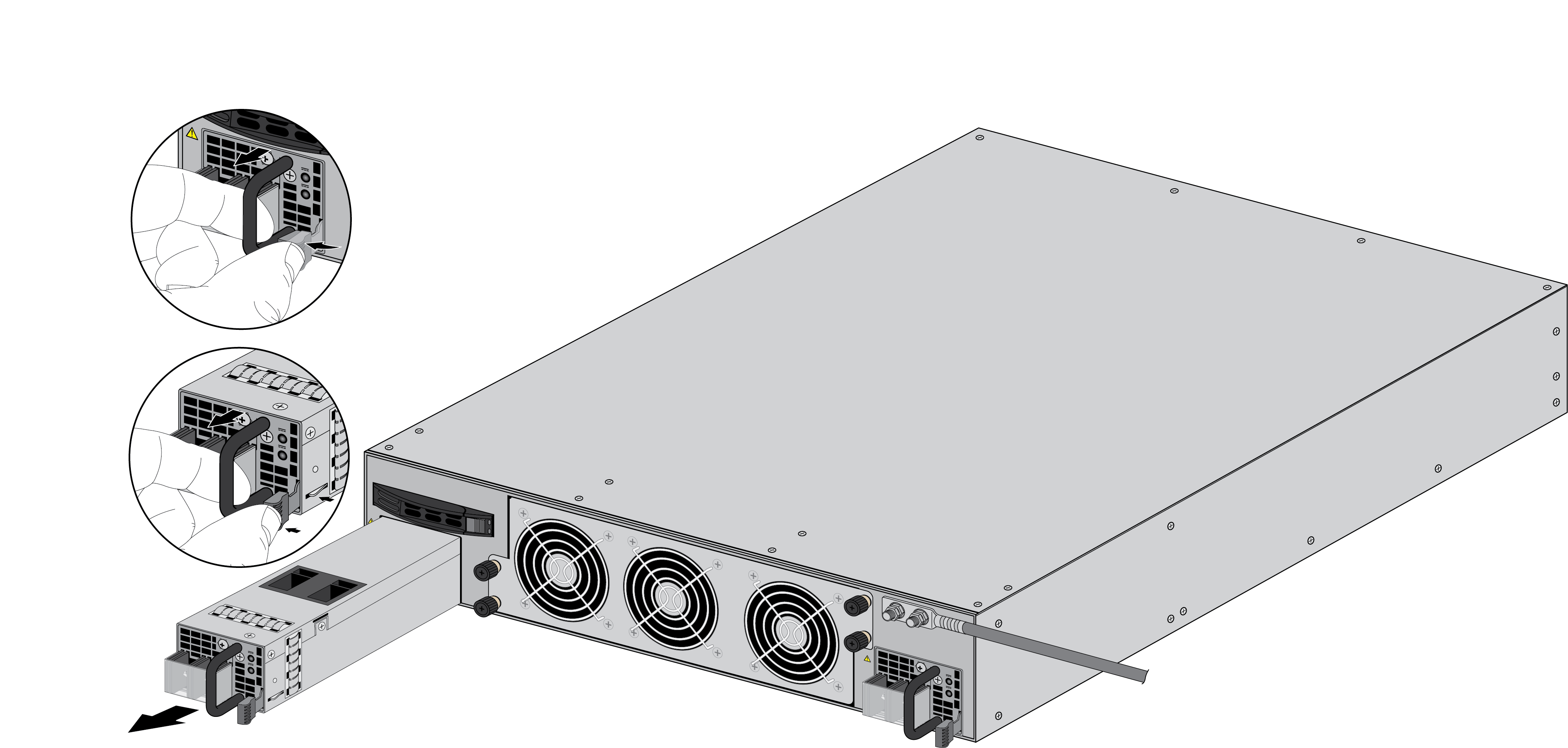

Grasp the handle on the failed power supply and then
simultaneously press the release lever to the left and pull the
power supply outward to remove it.

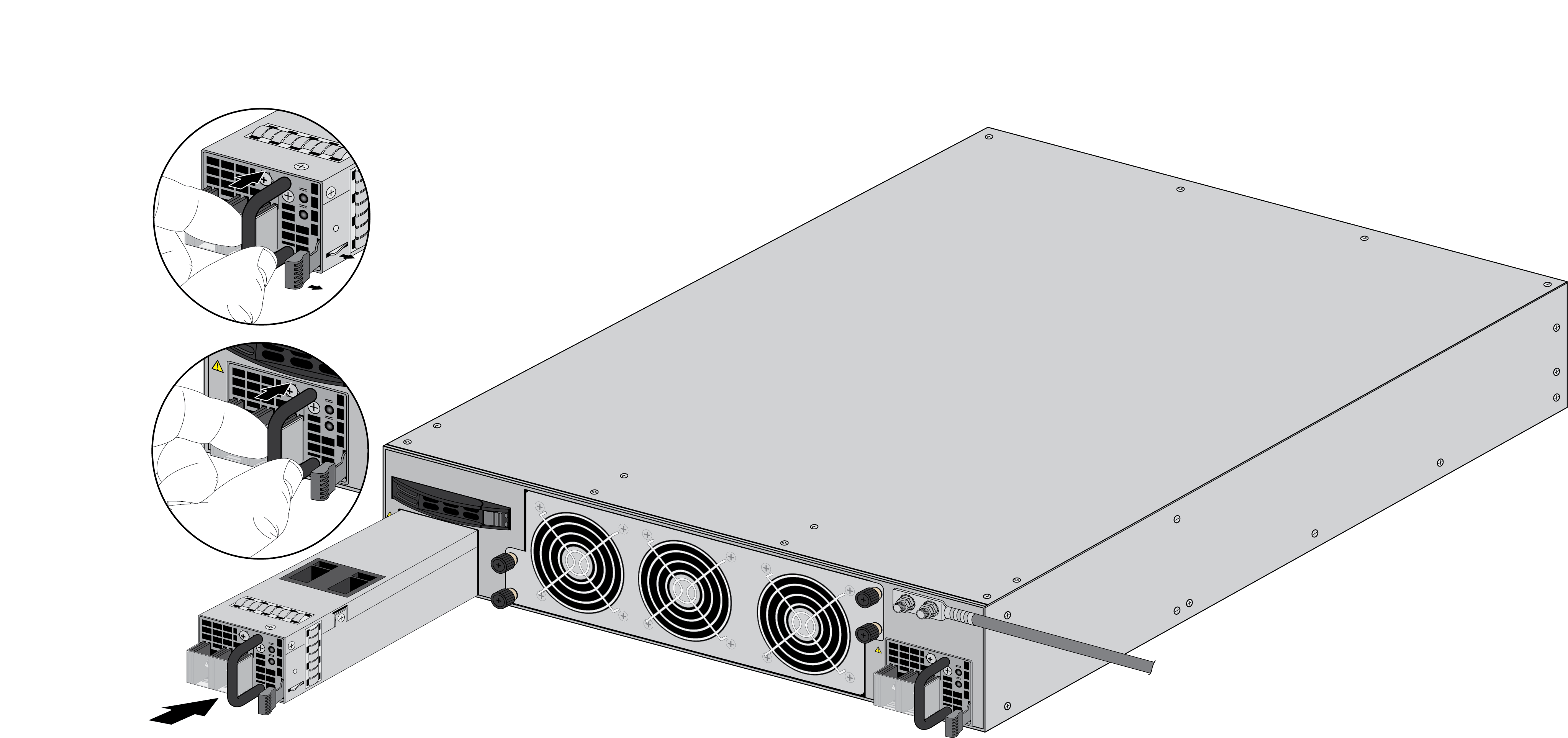

Remove the replacement power supply from the packaging
and slide it into the empty power supply slot. Push the power supply
all the way in until the release lever clicks and secures the power
supply.
Reconnect the positive and negative DC power cables to
the new power supply using the DC terminal screws.
Make sure you establish the correct
polarity: positive to positive and negative to negative.
When all DC power cables are securely connected and the
plastic guard is properly reattached, power on the DC power source.
The power supplies powers on, the input and output LEDs on the power
supplies turn green, and the PWR LED and the power supply LEDs (PWR
1 and PWR 2) on the front of the firewall turns green.
