    Set up AIMS for Integration

    Table of Contents

    Set up AIMS for Integration

    Set up AIMS for integration with Device Security through Cortex XSOAR.
    Where Can I Use This?What Do I Need?
    • Device Security (Managed by Strata Cloud Manager)
    • (Legacy) IoT Security (Standalone portal)
    One of the following subscriptions:
    • Device Security subscription for an advanced Device Security product (Enterprise Plus, Industrial OT, or Medical)
    • Device Security X subscription
    One of the following Cortex XSOAR setups:
    • A free, cohosted, limited-featured Cortex XSOAR instance
      AND
      A Cortex XSOAR Engine (on-premises integration)
    • A full-featured Cortex XSOAR server
    It is assumed that you already have AIMS 2 or AIMS 3 set up. You also need to have purchased the Palo Alto Networks add-on from Phoenix Data Systems before setting up the integration.

    AIMS 2

    Set up AIMS 2 for integration with Device Security through Cortex XSOAR.
    Set up an AIMS API configuration to define the maximum number of device records that AIMS will provide to Device Security and record the client ID that AIMS generates. You will use the client ID when configuring the AIMS integration instance in Cortex XSOAR.
    These instructions are based on AIMS version 2.6.11. Device Security supports all AIMS v2 builds.

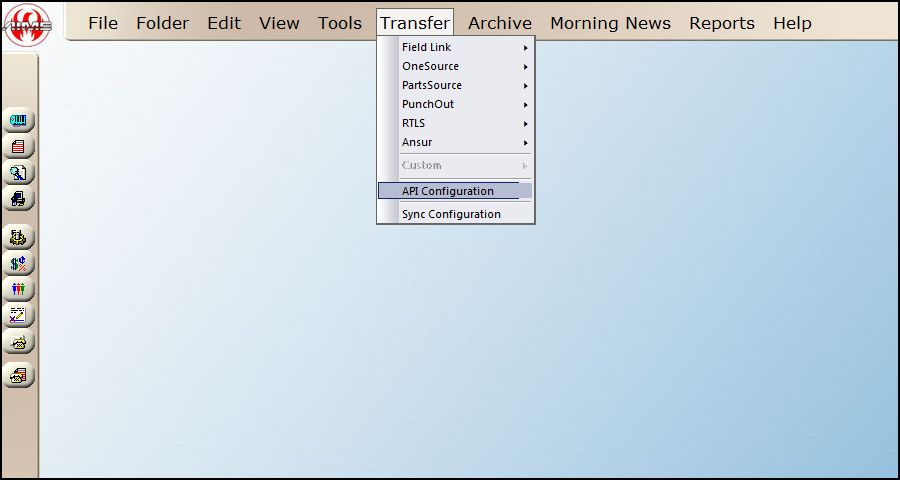

    1. Log in to the AIMS system and click TransferAPI Configuration.
      The API Configuration dialog box appears.

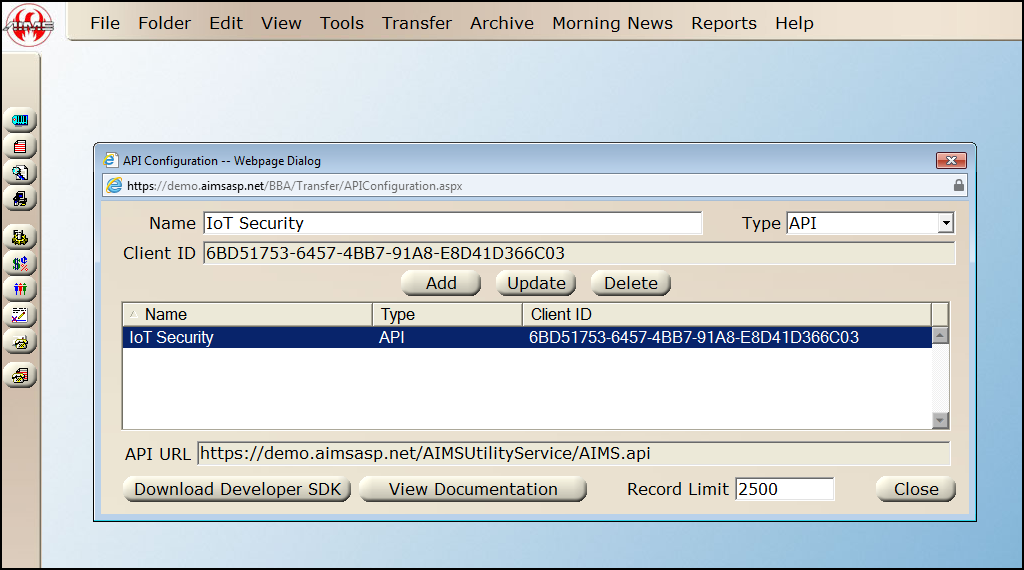

    2. Configure the AIMS API settings.
      Enter the following and then click Add:
      Name: Enter a name for your API configuration.
      Type: API
      Record Limit: Set the maximum number of device records that AIMS will provide to Device Security, keeping in mind that there is one record per device. In the following screen capture, the maximum is 2500 records. If there are more than 2500 records in the AIMS inventory that you want to import, increase the maximum to accommodate them. You can increase this as high as 100,000.
    3. Record the client ID for use when configuring the AIMS integration instance in Cortex XSOAR and then click Close.

    AIMS 3

    Set up AIMS 3 for integration with Device Security through Cortex XSOAR.
    To integrate with Device Security, you need to create an AIMS 3 interface to generate an API key. You need the API key to configure a Cortex XSOAR integration instance to authenticate with AIMS 3. After authenticating with AIMS 3, Cortex XSOAR can import data to Device Security.
    1. Log in to your AIMS 3 system and select System SetupInterfaces.
    2. Click on New Interface to configure the interface and generate an API key.
      1. Select Active.
      2. Enter a Name.
    3. Save the API Key to a secure location for use when configuring the AIMS 3 integration instance in Cortex XSOAR, and then click Ok to save the interface.
