Enforce Policy on an External Dynamic List

• Configure DNS sinkholing for a custom list of domains.
• Use an External Dynamic List in a URL Filtering Profile.
• Use an External Dynamic List of Type URL as Match Criteria in a Security policy rule.
  1. Select PoliciesSecurity.
  2. Click Add and enter a descriptive Name for the rule.
  3. In the Source tab, select the Source Zone.
  4. In the Destination tab, select the Destination Zone.
  5. In the Service/URL Category tab, click Add to select the appropriate external dynamic list from the URL Category list.
  6. In the Actions tab, set the Action Setting to Allow or Deny.
  7. Click OK and Commit.
  8. Verify whether entries in the external dynamic list were ignored or skipped.
     Use the following CLI command on a firewall to review the details for a list.

     request
     system external-list show type <domain | ip | url> name_of_list

     For example:

     request system
     external-list show type url EBL_ISAC_Alert_List

  9. Test that the policy action is enforced.
     1. View External Dynamic List Entries for the URL list, and attempt to access a URL from the list.
     2. Verify that the action you defined is enforced.
     3. To monitor the activity on the firewall:
        • Select ACC and add a URL Domain as a global filter to view the Network Activity and Blocked Activity for the URL you accessed.
        • Select MonitorLogsURL Filtering to access the detailed log view.
• Use an IP External Dynamic List or Predefined IP External Dynamic List as a Source or Destination Address Object in a Security Policy Rule.
  This capability is useful if you deploy new servers and want to allow access to the newly deployed servers without requiring a firewall commit.
  1. Select PoliciesSecurity.
  2. Click Add and give the rule a descriptive Name.
  3. In the Source/Destination tabs, set the external dynamic list to be used as the Source/Destination Address(es).
  4. In the Service/ URL Category tab, make sure the Service is set to application-default.
  5. In the Actions tab, set the Action Setting to Allow or Deny.
     Create separate external dynamic lists if you want to specify allow and deny actions for specific IP addresses.
  6. Leave all the other options at the default values.
  7. Click OK to save the changes.
  8. Commit the changes.
  9. Test that the policy action is enforced.
     1. View External Dynamic List Entries for the external dynamic list, and attempt to access an IP address from the list.
     2. Verify that the action you defined is enforced.
     3. Select MonitorLogsTraffic and view the log entry for the session.

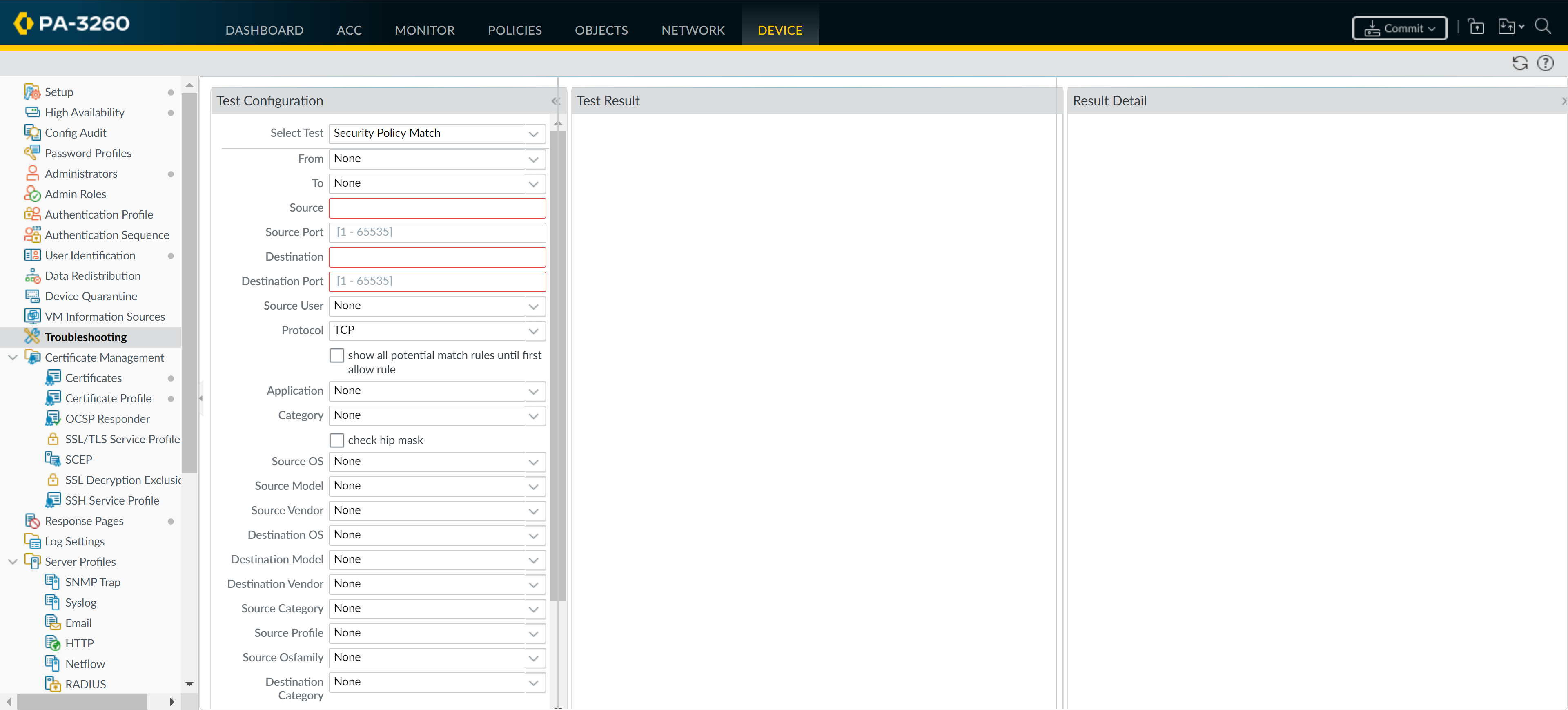

     4. To verify the policy rule that matches a flow, select DeviceTroubleshooting, and execute a Security Policy Match test:

• Use a Predefined URL External Dynamic List to exclude benign domains that applications use for background traffic from Authentication policy.
  When you select the panw-auth-portal-exclude-list EDL type, you can easily exclude from Authentication policy enforcement the domains that many applications use for background traffic, such as updates and other trusted services. This ensures that the firewall does not block the necessary traffic for these services and application maintenance is not interrupted.
  1. Select PoliciesAuthentication.
  2. On the Service/URL Category tab, select the Predefined URL EDL as the URL Category.
  3. On the Actions tab, select default-no-captive-portal as the Authentication Enforcement.
  4. Click OK.
  5. Move the rule to the top so that it is the first rule in the policy.
  6. Commit your changes.
