Private IP Address Visibility and Enforcement for Agent Based Proxy Traffic (Panorama)

Configure the private IP visibility and enforcement for GlobalProtect in Proxy mode for panorama.

Enable the Agent-based Proxy functionality (Proxy mode and Tunnel and Proxy mode) for mobile users.

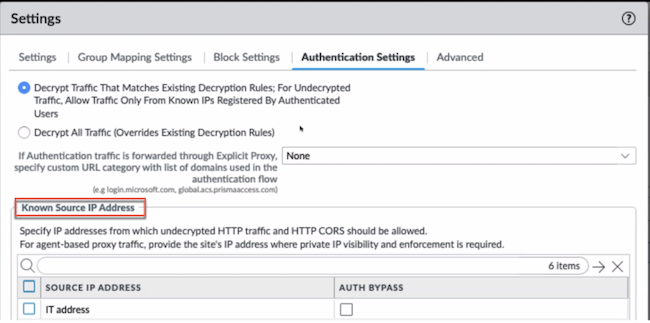

Navigate to Cloud ServicesConfiguration Mobile UsersExplicit ProxySettingsAuthentication Settings and add the branch egress IP address under Known Source IP Address.
Navigate to Cloud ServicesConfiguration Mobile Users-Explicit Proxy. Under Agent, enable Enable Source IP based Visibility and Enforcement from Sites, and click OK.
(Optional) Configure the security rules with the source IP address of the endpoint.
Commit and push to the Explicit_Proxy_Device_Group.
