Monitor ZTNA Connector

Learn how to monitor ZTNA Connector.

Where Can I Use This?	What Do I Need?
Prisma Access (Managed by Strata Cloud Manager) Prisma Access (Managed by Panorama)	Prisma Access 5.2.0 ZTNA Connector add-on license The Essential license with the add-on license includes 8 ZTNA Connectors, 100 FQDNs, and 4 IP subnet functionality. The Advanced license with the add-on license includes 40 ZTNA Connectors, 300 FQDNs, and 1024 IP subnet functionality. The Premium license with the add-on license includes 200 ZTNA Connectors, 4000 FQDNs, and 1024 IP subnet functionality. If you don't purchase the ZTNA Connector add-on license, Prisma Access licenses include four connectors, 40 FQDNs, and four IP subnets. This functionality is provided for the purpose of trying out ZTNA Connectors in your environment.

Where Can I Use This?

What Do I Need?

Prisma Access (Managed by Strata Cloud Manager)
Prisma Access (Managed by Panorama)

Prisma Access 5.2.0
ZTNA Connector add-on license
The Essential license with the add-on license includes 8 ZTNA Connectors, 100 FQDNs, and 4 IP subnet functionality.
The Advanced license with the add-on license includes 40 ZTNA Connectors, 300 FQDNs, and 1024 IP subnet functionality.
The Premium license with the add-on license includes 200 ZTNA Connectors, 4000 FQDNs, and 1024 IP subnet functionality.
If you don't purchase the ZTNA Connector add-on license, Prisma Access licenses include four connectors, 40 FQDNs, and four IP subnets. This functionality is provided for the purpose of trying out ZTNA Connectors in your environment.

All of the ZTNA Connector components provide clear status information, logs, and diagnostic tools to help you troubleshoot any issues that arise. Use the following tools to monitor your ZTNA Connector deployment.

View the status of your applications and Connectors from within the Prisma SASE platform.
- Select SettingsZTNA ConnectorApplication Targets and verify that the Status of all Application Targets is Up.

  If you're using Strata Cloud Manager, go to WorkflowsZTNA ConnectorApplication Targets.

  If the status shows Down, the Connector can't reach your application. After you fix the issue with the application, click the refresh status button in the Action column and verify that the Status changes to Up (the status automatically refreshes once per minute).
  The status is also Up if the application is reachable from ZTNA connector (using the last successful DNS resolution result) but the DNS resolution of the Application FQDN fails from the ZTNA connector.

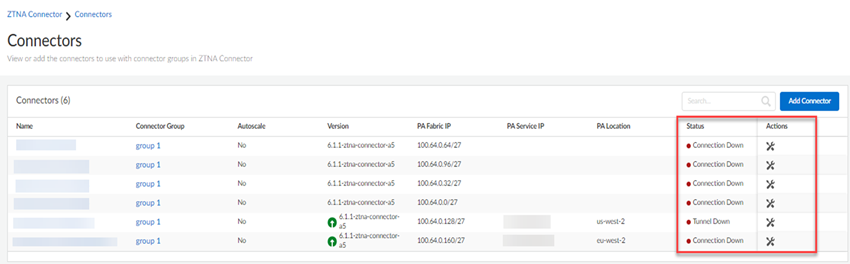

- Select SettingsZTNA ConnectorConnectors and make sure the Status of all Connectors is Up.

  If you're using Strata Cloud Manager, go to WorkflowsZTNA ConnectorConnectors.

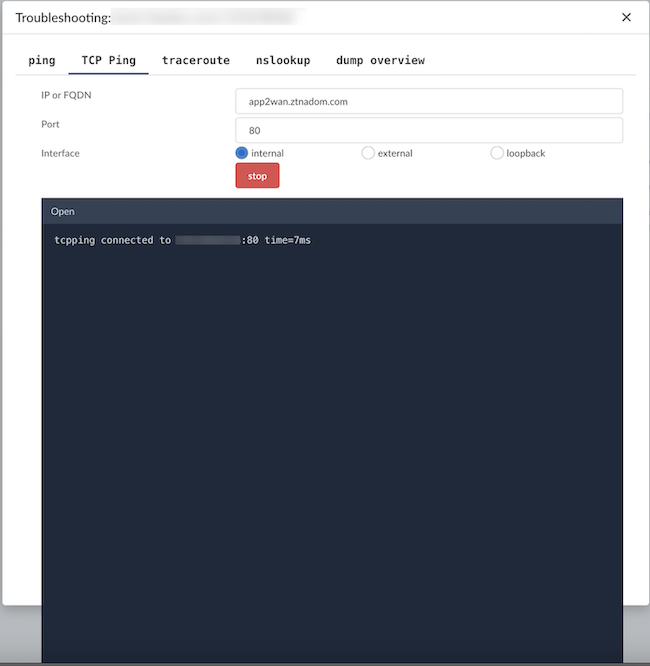

  If the Status shows Tunnel Down, it indicates that the IPSec tunnel between the Connector VM and Prisma Access is down. If the Status shows Connection Down it indicates that the Connector VM is down. Click the diagnostics icon

  to launch a remote shell connection to the Connector to troubleshoot the issue. You can run a ping, TCP Ping, traceroute, nslookup, or dump overview to help you diagnose the connectivity issue.
