    Integrate Prisma Access with Microsoft Purview

    Table of Contents

    Integrate Prisma Access with Microsoft Purview

    Integrate Prisma Access with Microsoft Purview for data loss prevention. Secure network traffic, detect sensitive data, and enforce policies to prevent data leaks.
    Where Can I Use This?What Do I Need?
    • Strata Cloud Manager
    • Prisma Access license
    • PAN-OS version 11.2.7-h8
    • SaaS Agent version 6.1 HF3
    • Microsoft 365 E5 or Office 365 E5 licensing
    • Microsoft Purview pay-as-you-go billing
    Prisma Access integrates with Microsoft Purview Information Protection to enable sensitive data detection and policy enforcement on network traffic. This integration leverages Microsoft Purview's data loss prevention (DLP) capabilities to secure data transmitted through your network, providing context for granular data protection policies.
    Prisma Access inspects and forwards network traffic. Microsoft Purview Information Protection defines and applies data protection policies, identifies sensitive data, and provides policy scopes. This integration combines Prisma Access's network visibility with Purview's data classification engine to prevent data leaks and enhance your data security.
    Core architectural components and interactions include:
    • Prisma Access captures and inspects network egress traffic from GlobalProtect.
    • Microsoft Purview Information Protection serves as the central DLP engine. It defines data protection policies, identifies sensitive information based on configured rules, and provides policy scopes. Purview policies apply exclusively based on Microsoft Entra IDs.
    • Strata Cloud Manager is used by global administrator to grant admin consent so that Palo Alto Networks applications can access the tenant's protection scope policies.
    • Microsoft Entra ID is the authoritative source for user identities. Purview policies apply exclusively based on Microsoft Entra IDs, requiring synchronization for accurate policy enforcement.
    • The Microsoft Graph API retrieves the Microsoft Entra ID Object ID for each user based on their user principal name (UPN), a prerequisite for Purview's policy application.
    You can initiate integration setup directly from Strata Cloud Manager. An API handshake establishes communication with your Microsoft Purview tenant, authorizing the Prisma Access application registration within your M365 environment and granting Prisma Access the necessary permissions for accessing Microsoft Purview DLP policies.
    Prisma Access establishes an API connection with Microsoft Purview DLP to learn relevant traffic scopes, including:
    • FQDNs for applications
    • User activity types
    • User identifiers
    Prisma Access captures data payloads and metadata for all file and non-file traffic. This content is forwarded to Microsoft Purview for process content inspection. Prisma Access synchronizes with Microsoft Entra ID to map user identities. The Microsoft Graph API obtains the unique Object ID from Microsoft Entra ID for each user based on their UPN. This ensures accurate application of Purview's policies, which rely on Entra ID Object IDs.
    Prerequisites
    Before you enable Microsoft Purview Integration, make sure you have completed the following prerequisites:
    Palo Alto Networks
    Microsoft Purview

    Enable Microsoft Purview Integration

    1. Navigate to ConfigurationApplication Services3rd-Party Integrations and locate the Microsoft Purview Integration with Prisma Access widget.
    2. Click the Settings gear to open the Preview Integration with Prisma Access Settings tab.
    3. Under Microsoft Tenant ID, click Sign in with Microsoft. Log in as a global administrator for your enterprise to auto-populate the tenantID field.
    4. Under Admin Consent, click Grant Consent, and Pick an account. Review the permissions this application requests, and click Accept.
    5. Under Enable, move the slider to the right to enable the Microsoft Purview integration.
    6. The Microsoft Purview Integration with Prisma Access widget now shows that Microsoft Purview is enabled.
    7. Select a certificate. If no certifications are available, they need to be uploaded to the certificate management page.

    Create a Microsoft Purview Policy

    1. Log in to the Microsoft Purview portal at https://purview.microsoft.com, and select the Data Loss Prevention solution.
      Depending on the outcome you would like to achieve, you can configure one or both types of these policies. The policies work in parallel with one another.
      • DLP Policies—DLP policies trigger alerts and audit events when content is shared with unsanctioned cloud apps.
      • Collection Policies—Use Collection policies to discover signals and monitor data shared with unsanctioned apps. Although they do not include enforcement actions, they are essential for powering downstream features such as Data Security Posture Management (DSPM) and insider risk management.
    2. Select Policies+ Create PolicyInline Web Traffic.
    3. On the Start with a template or create a custom policy page, select Next .
    4. Name your DLP policy, and select Next.
    5. On the Choose cloud apps to apply the policy page, select + Add cloud apps.
    6. In the Choose data sources selector, select the Unmanaged cloud apps tab, and choose the cloud apps you want to protect with this policy.
      You can choose a preexisting scope within the Adaptive app scopes tab to apply this policy across generative AI and other categories.
    After you select the apps and categories you want to protect, click Add and select Next. Optionally, you can select Edit scope to include or exclude specific users and groups.
    1. On the Choose where to enforce the policy page, ensure Network is selected.
    2. On the Define policy settings page, click Next. Then choose + Create rule to create one or more customized advanced DLP rules.
    3. Give the rule a name and an optional description.

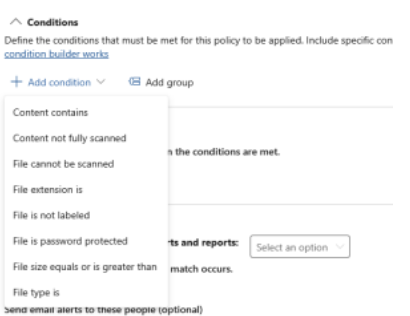

    4. From the Condition drop-down, choose one or more conditions for this rule. For example, select Content contains to specify advanced conditions for content, such as sensitive information types, sensitivity labels, or trainable classifiers.
    5. From the Actions drop-down, choose Restrict browser and network activities. Choose the activities and actions you want to take.
    6. Choose whether you want to generate an incident report and an email notification on rule match events. Save the rule. You can create more than one rule, or select Next if you are satisfied with the single rule.
    7. On the Policy mode page, you can choose to:
      • Run the policy in simulation mode: Generates audit events, but does not block.
      • Turn the policy on immediately
      • Leave the policy turned off: Save the policy state, but do not enable it.
      • From the Review and finish page, review policy settings, and Submit when you are ready to create the policy.
    Within an hour, your Microsoft Purview policy it is ready to test from the client device, and rule matches should begin appearing on the Purview Activity Explorer and Purview DLP Alerts pages.
