You can start a session by either typing Help or directly entering
the command. The format of the command must include @Prisma SD-WAN
Chatbot <command>.
For
example:
@Prisma SD-WAN Elcapitan show sites
You can continue the conversation in the same channel OR directly message the bot 1-1.
Based on the page size configured on Chatbot CloudBlade for Slack, the bot displays that
many maximum records. You must type at least one of the options. If the site names have
a space, enter the site name in double quotes. When the response for a command exceeds
the supported size, the bot chunks the response.

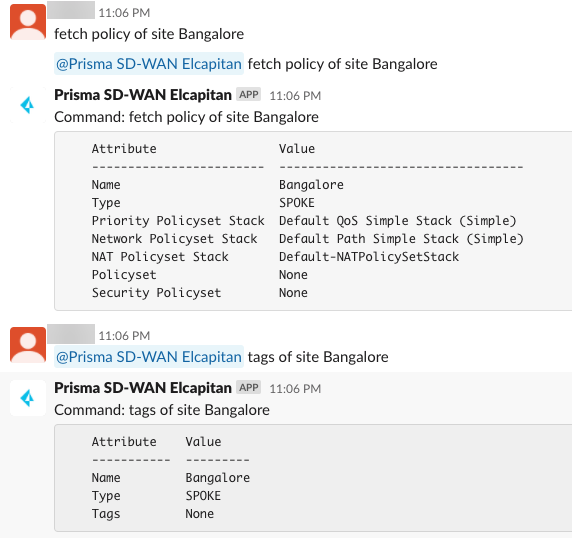

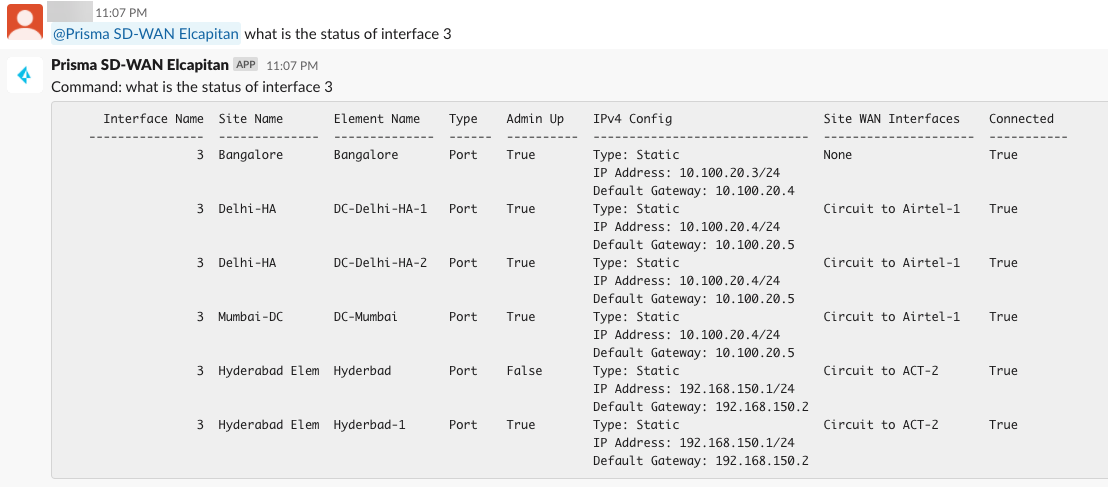

The Chatbot supports NLP (Natural Language Processing) for
commands, which helps in having an interactive discussion with the bot rather than a
fixed set of static commands. The following examples do not display the supported
command, however, the bot intelligently formulates and provides the correct
response.
The Chatbot commands, supported options, and their descriptions are listed below:
Commands
Command Descriptions
help
help
Lists all the supported commands.
<command> help
Displays the command syntax acceptable by the bot with
all the options mentioned in the command.
show apps
show apps
Lists all apps defined on the system.
show apps <appname>
Lists all the application-specific attributes for the
application app name.
show events
show events site <sitename>
Filters the list of events for a particular site.
show events
<status><suppressed|resolved|open|acknowledged>
Filters the output to display the status of the
events.
show events site
<sitename>priority<priority>
Filters the events for a site based on the event
priority.
show events code <eventcodes>
Filters the events for a particular event code.
show events correlation <correlationID>
Filters the events for a particular correlation
ID.
show events hours <numhours>
Filters the events for a particular time frame.
show health
show health <sitename>
Displays the following attributes depicting the health of the
site:
ION device connectivity status
critical and significant events
number of active events count by severity
physical link status
VPN health (Prisma SD-WAN and 3rdparty)
show health <sitename> links
Filters the output to display physical link health.
show health <sitename> ions
Filters the output to display device health.
show health <sitename> vpns
Filters the output to display VPN link health.
show health <sitename> alarms
Filters the output to display alarms.
show inventory
show inventory
Lists all the devices in the system (both claimed and
unclaimed) with the device name, model, site name, software version, and
connection status attributes.
show inventory <modelname>
Lists the inventory to display devices of the specified
model type.
show inventory at site <sitename>
Lists the inventory to display devices at the specified
site.
show inventory <modelname> at site
<sitename>
Lists the inventory assigned to a site(s).
show interfaces
show interfaces at site <sitename> on
element<elemname>
Displays the following interface attributes of admin
status, type, name, ipv4_config, secondary_ip_configs, and
site_wan_interface_ids.
show interfaces <interfacename>
Displays interface configurations of all the interfaces
with the interface name with the following attributes:
sitename
element name
admin status
type
ipv4_config
secondary_ip_configs
site_wan_interface_ids
connected
show metrics—All metrics-related
commands must have the options metric type, category, site, and hours.
If the site name or the app name has a space, ensure the names are typed
in double-quotes.
show metrics <type> category <category> at
site<sitename> hours <numhours> groupby<groupby>
Displays specific metrics for the given site for the specified number
of hours. The output displays a statistical distribution of the
metrics queried for:
Count (Number of data points)
Mean
Standard Deviation
Minimum Value
Maximum Value
Percentile Values: 50, 75, 90
Show metrics network <category> <bw> at
site<sitename>hours <numhours>groupby<APPS>
Displays the metrics, where the metric type is a network
and the category is bandwidth for a given site for the specified number
of hours for a given app(s).
Show metrics network <category> <bw> at
site<sitename>hours <numhours>
Displays the metrics, where the metric type is a network
and the category is bandwidth for a given site for the specified number
of hours.
Show metrics network <category> <bw> at site<sitename>
hours<numhours>groupby<APPS>
groupby<WANS>
Displays the metrics, where the metric type is a network
and the category is bandwidth for a given site for the specified number
of hours, for a given app(s), and the selected WANs.
Show metrics network <category> <bw> at site<
sitename>hours <numhours>groupby
<Top10>groupby<APPS>
Displays the metrics for the top 10 apps where the metric
type is a network and the category is bandwidth for a given site for the
specified number of hours.
Show metrics network <category>tcp<tcp-xsact>at
site <sitename>hours <numhours>
Displays the TCP metrics where the metric type is a
network and the category is tcp-xsact for a given site for the specified
number of hours.
Show metrics network <category> tcp<tcp-xsact>at site
<sitename>
hours<numhours>groupby<APPS>
Displays the TCP metrics, where the metric type is a
network and the category is tcp-xsact for a given site for the specified
number of hours for a given app(s).
Show metrics network <category> <tcp-xsact> atsite
<sitename>hours<numhours
>groupby<WANS>
Displays the TCP metrics, where the metric type is a
network and the category is tcp-xsact for a given site for the specified
number of hours and selected WANs.
Show metrics network <category> <tcp-xsact> atsite
<sitename>hours<numhours>
groupby<APPS>
groupby<WANS>
Displays the TCP metrics, where the metric type is a
network and the category is tcp-xsact for a given site for the specified
number of hours, for a given app(s), and the selected WANs.
Show metrics app <category> <health> at site<sitename>
hours <numhours>groupby<APPS>
Displays the app(s) health metrics, for a given site for
the specified number of hours for a given app(s).
Show metrics app <category> <health> at site<sitename>
hours<numhours>groupby
<APPS>groupby<WANS>
Displays the app(s) health metrics for a given site for
the specified number of hours, for a given app(s) and the selected WANs
or all WANs.
Show metrics app <category> <app-response>
atsite <sitename>hours<numhours>
groupby<APPS>
Displays the app response metrics, for a given site for
the specified number of hours for a given app(s).
Show metrics app <category> <app-response> atsite
<sitename>hours<numhours>
groupby<APPS>
groupby<WANS>
Displays the app response metrics for a given site for
the specified number of hours, for a given app(s), and the selected WANs
or all WANs.
Show metrics media <category> <audio-bw> atsite
<sitename>hours<numhours
>groupby<APPS>
Displays the audio bandwidth metrics, for a given site
for the specified number of hours for a given app(s).
Show metrics media <category> <audio-bw> atsite
<sitename>hours<numhours
>groupby<APPS>groupby<WANS>
Displays the audio bandwidth metrics for a given site for
the specified number of hours, for a given app(s), and the selected WANs
or all WANs.
Show metrics media <category> <audio-jitter> atsite
<sitename>hours<numhours
>groupby<APPS>
Displays the audio jitter metrics, for a given site for
the specified number of hours for a given app(s).
Show metrics media <category> <audio-jitter> atsite
<sitename>hours<numhours>
groupby<APPS>groupby<WANS>
Displays the audio jitter metrics for a given site for
the specified number of hours, for a given app(s), and the selected WANs
or all WANs.
Show metrics media <category> <video-jitter> atsite
<sitename>hours<numhours
>groupby<APPS>
Displays the video jitter metrics, for a given site for
the specified number of hours for a given app(s).
Show metrics media <category> <audio-loss> atsite
<sitename>hours<numhours>
<groupby<APPS
Displays the audio-loss metrics, for a given site for the
specified number of hours for a given app(s).
Show metrics media <category> audio-loss> atsite
<sitename>hours<numhours>
groupby<APPS>groupby<WANS>
Displays the audio loss metrics for a given site for the
specified number of hours, for a given app(s), and the selected WANs or
all WANs.
Show metrics media <category> <video-loss> atsite
<sitename>hours<numhours>
<groupby<APPS>
Displays the video-loss metrics, for a given site for the
specified number of hours for a given app(s).
Show metrics media <category> video-loss> atsite
<sitename>hours<numhours>
groupby<APPS>groupby<WANS>
Displays the video loss metrics for a given site for the
specified number of hours, for a given app(s), and the selected WANs or
all WANs.
Show metrics media <category> <audio-mos> atsite
<sitename>hours<numhours>
<groupby<APPS>
Displays the audio-mos metrics, for a given site for the
specified number of hours for a given app(s).
Show metrics media <category> audio-mos> atsite
<sitename>hours<numhours>
groupby<APPS>groupby<WANS>
Displays the audio-mos metrics for a given site for the
specified number of hours, for a given app(s), and the selected WANs or
all WANs.
show paths
show paths <sitename>
Displays all the paths, overlay + underlays, at a given site.
Internet
Private WAN
VPN over Internet
VPN over Private WAN
Standard VPN
show paths <sitename> public
Displays the public paths, overlay + underlays, at a
given site.
Internet
VPN over Internet
Standard VPN
show paths <sitename> private
Displays the private paths, overlay +underlays, at a
given site.
Private WAN
VPN over Private WAN
show sites
show sites
Lists all the sites, site type (hub v/s spoke), admin
state, tags, and domain.
show sites <sitename>
Lists all the site properties such as an address,
location, tags, and attached policies.
show sites <sitename> address
Lists the addresses of all the sites.
show sites <sitename> policy
Lists the path, QoS, Security, and NAT policies attached
to the site.
show sites <sitename> tags
Lists the tags attached to the site.
show tenants
show teanants
Lists tenant information like tenant ID and tenant
name.
