Troubleshoot Installation Scenarios
See how to troubleshoot installation related scenarios for Zscaler CloudBlade in Prisma SD-WAN.
| Where Can I Use This? | What Do I Need? |
|---|---|
|
|
A few common scenarios administrators should be aware of when attempting to do the
initial installation of the Zscaler CloudBlade.
Wrong API Key or Partner Admin Credentials

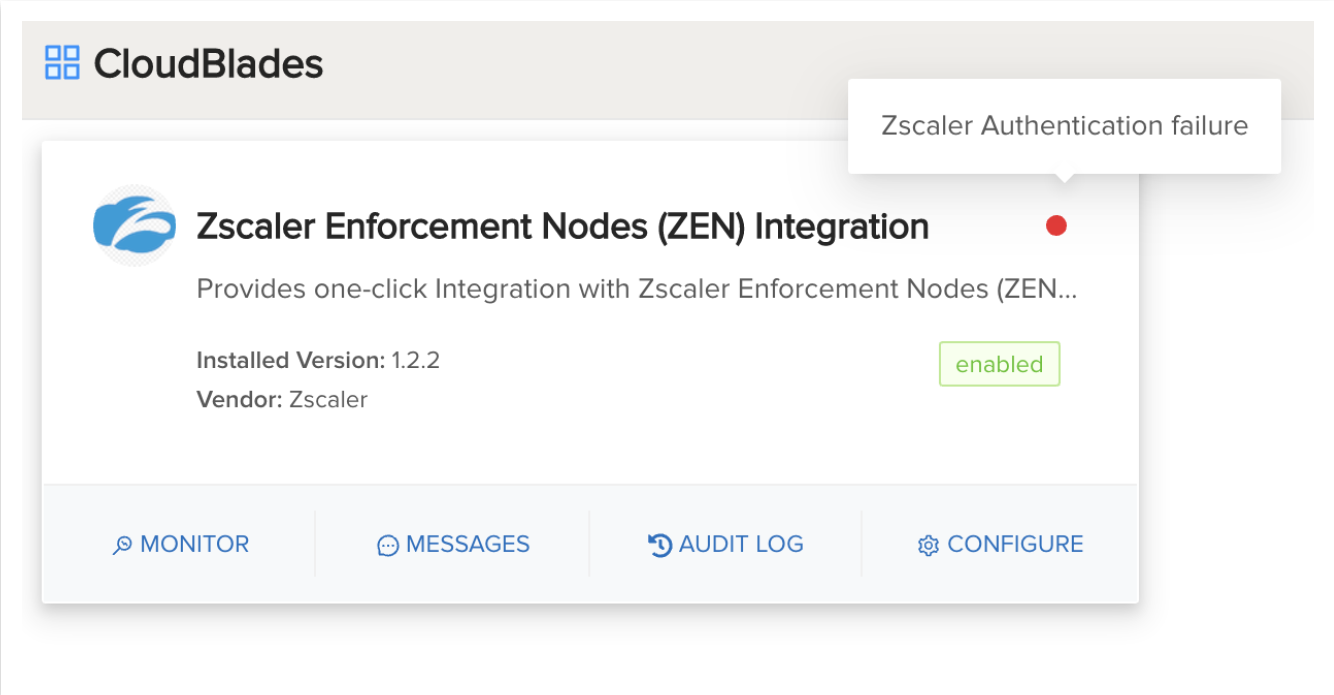

If an administrator incorrectly enters the API key or Partner Admin
credentials, the system will alert the administrator by reporting the status on the
CloudBlade page.
Prisma SD-WAN Standard VPNs not Created
There could be a scenario in which all user credentials, keys, and
tokens are correct, and the Zscaler Location and VPN credential objects are also
created. However, the Prisma SD-WAN VPNs are not created. This can be
due to the pre-built IPsec profiles based on Zscaler’s recommended best practices,
which have not been allocated to your Prisma SD-WAN tenant. Another
reason could be that the custom IPsec profile name specified in your CloudBlade
configuration does not exist (or has a typo in it).

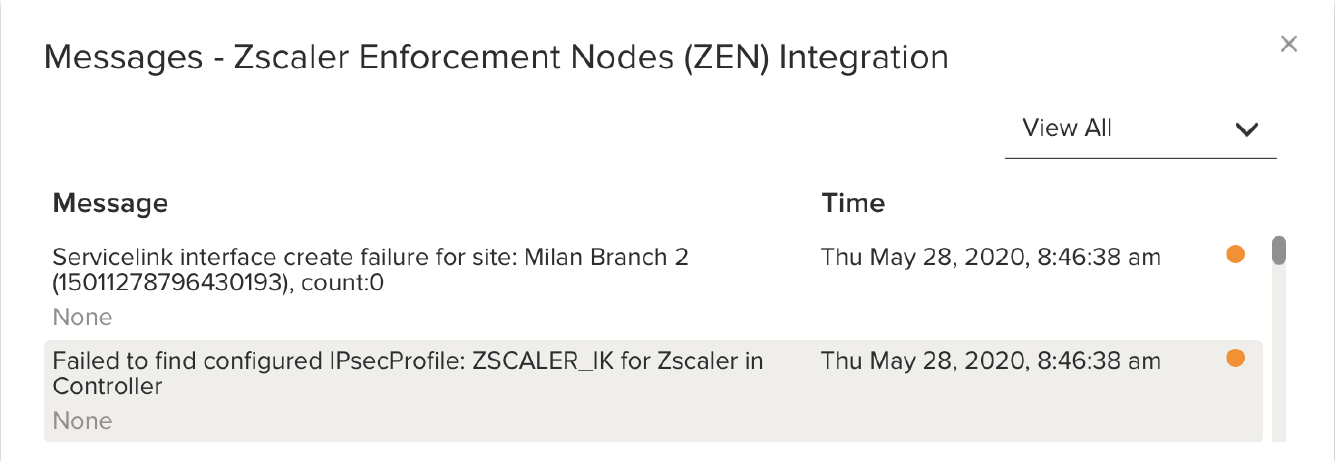

This condition can be validated by selecting the
Messages link on the CloudBlade tile and looking for an
error message similar to the one below.
To verify that these IPsec profiles exist, in Strata Cloud
manager, navigate to , and check if the profiles shown in the example below are displayed.
If these two profiles are not present, please contact Palo Alto support OR
create your own IPsec profile in that name in your CloudBlade configuration.
