PA-220 Back Panel
Learn about the PA-220 firewall back-panel components.

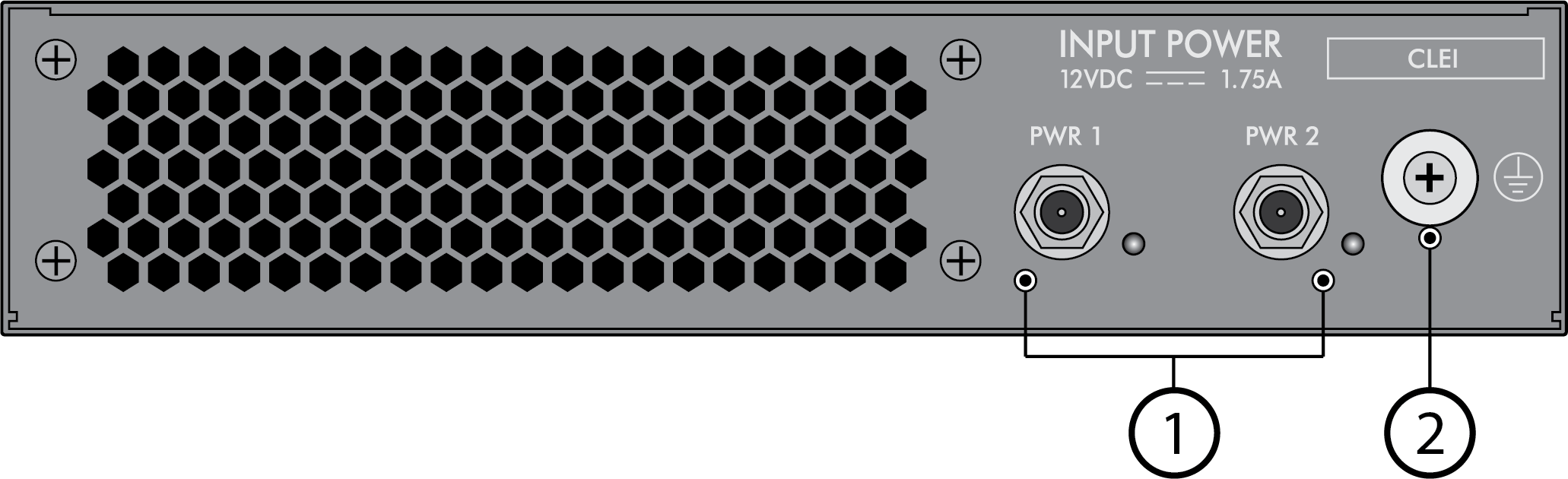

The following image shows the back panel
of the PA-220 firewall and the table describes each back panel component.
| | Use the power inputs to connect power to
the firewall.
Use only the PA-220 external power adapters
provided by Palo Alto Networks.
|
| | Use the single post ground stud to connect
the firewall to earth ground (ground cable not included). |
