SD-WAN Monitoring
Monitor path health of SD-WAN devices.
- PanoramaSD-WANMonitoring
The Monitoring tab is a dashboard that displays
a summary widgets of all your SD-WAN device health metrics. This
tool provides actionable intelligence about the activity on your SD-WAN
network, by allowing you to quickly identify applications or links
experiencing performance issues. You can view path quality and link
performance for all VPN Clusters, or for a specific VPN Cluster,
within a specified period of time.

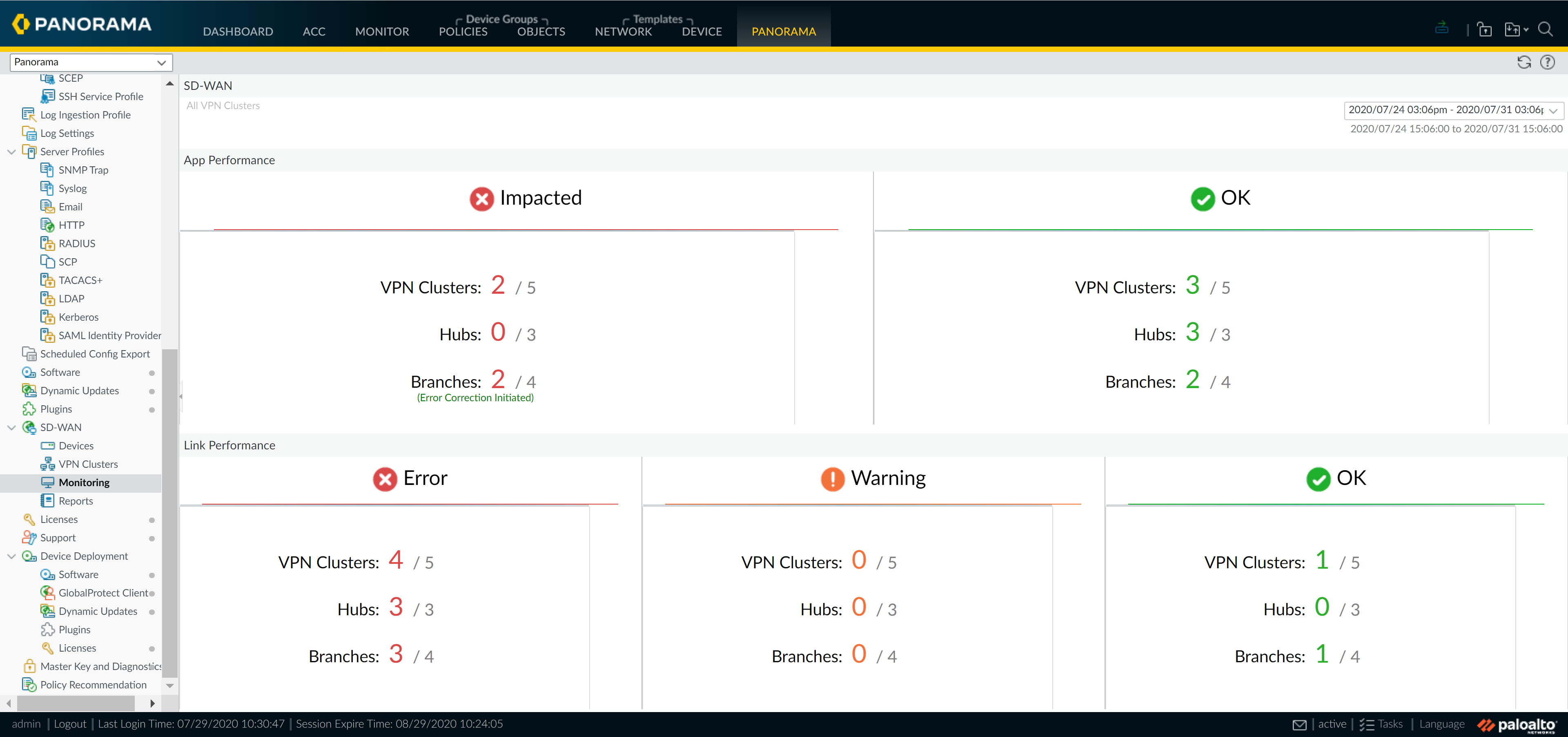

At a glance, you can view the total number of VPN Clusters with
branch or hub firewalls that are experiencing impacted application
performance, and those that are healthy. You can view the following
application and link health states for VPN Clusters:
- App Performance
- Impacted—One or more applications in the VPN Cluster for which none of the paths have jitter, latency, or packet loss performance at or below the specified thresholds in the Path Quality Profile in the list of paths that can be chosen.
- OK—Applications in the VPN Cluster are healthy and experiencing no jitter, latency, or packet loss performance.
- Link Performance
- Error—One or more sites in the VPN Cluster for which none of the paths have jitter, latency, or packet loss performance at or below the specified thresholds in the Path Quality Profile in the list of paths that can be chosen.
- Warning—One or more Sites in the VPN Cluster have links with jitter, latency, or packet loss performance measurements that compare unfavorably to a moving seven day average value of the metric.
- OK—Links in the VPN Cluster are healthy and experiencing no jitter, latency, or packet loss performance.

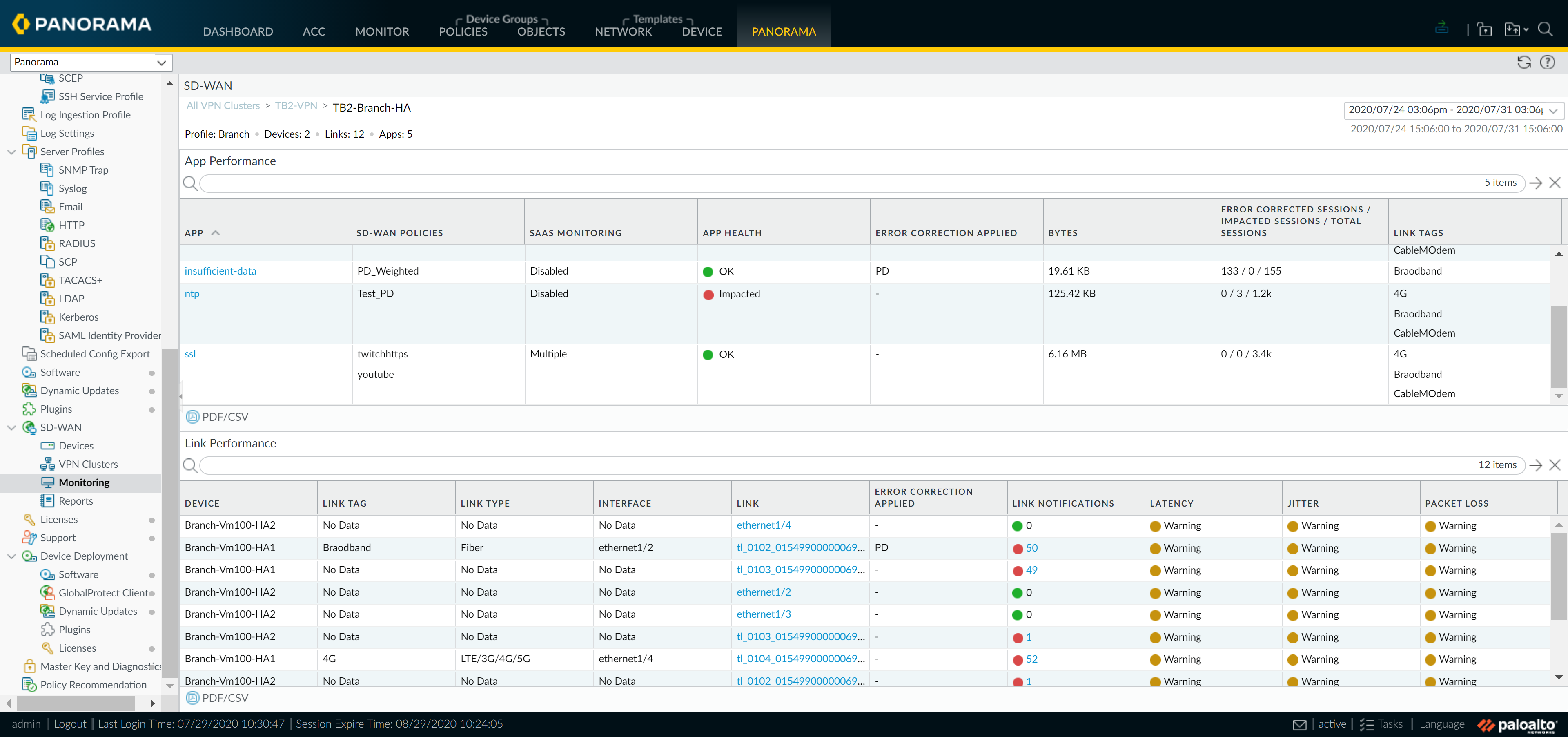

Click any widget to get an in-depth view of all VPN clusters
for the desired health state. Additionally, you can use the Sites
filter to view VPN clusters based on link notifications, latency deviations,
jitter deviations, packet loss deviations, or impacted applications.
