1200-S on a drywall or plywood
wall using the wall-mount kit as described in the following procedure.

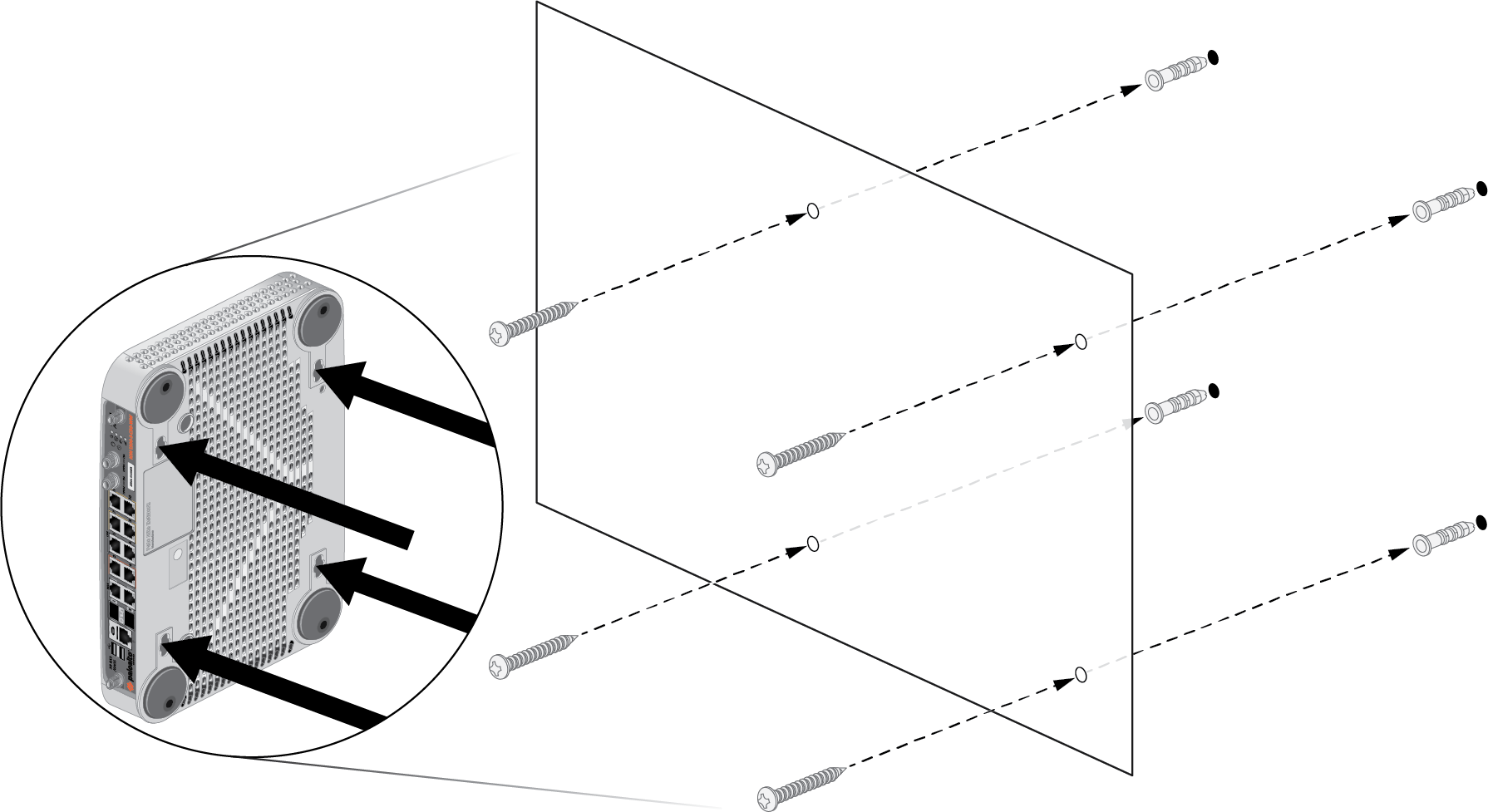

Mark four locations on the wall that line up with the wall mount holes on the
bottom of the device as shown in the ION 1200-S Wall Mount Template.
Print the ION 1200-S Wall Mount Template on a US letter size sheet (8.5" x
11"), in portrait mode, and scale to actual size to ensure the screw
hole markers line up correctly.
Ensure there are no building services (water, gas, or wiring) behind the
wall where you intend to install the device.
Screws and anchors are part of the wall-mount kit which is a separate kit
option for the
ION
1200-S.
Use a #1 Phillips-head screwdriver to install the appropriate
screws into each of the four marked locations:
Drywall—Press a drywall anchor slightly into the
center of a template mark. Then use the screwdriver to apply pressure
while turning the anchor clockwise until the surface of the anchor
is flush with the wall. After the drywall anchor is secure, install
a 1.25” anchor screw into the anchor until the bottom of the screw
head protrudes 1/4” (.6cm) from the wall. Repeat this step for the
other three screw locations unless either is located over wood,
in which case, use a .75” wood screw instead of a drywall anchor
and screw.
Plywood wall—Use the screwdriver to insert a .75” wood screw
into the center of each template mark that is located over wood
until the bottom of the screw heads protrude 1/4” (.6cm) from the wall.

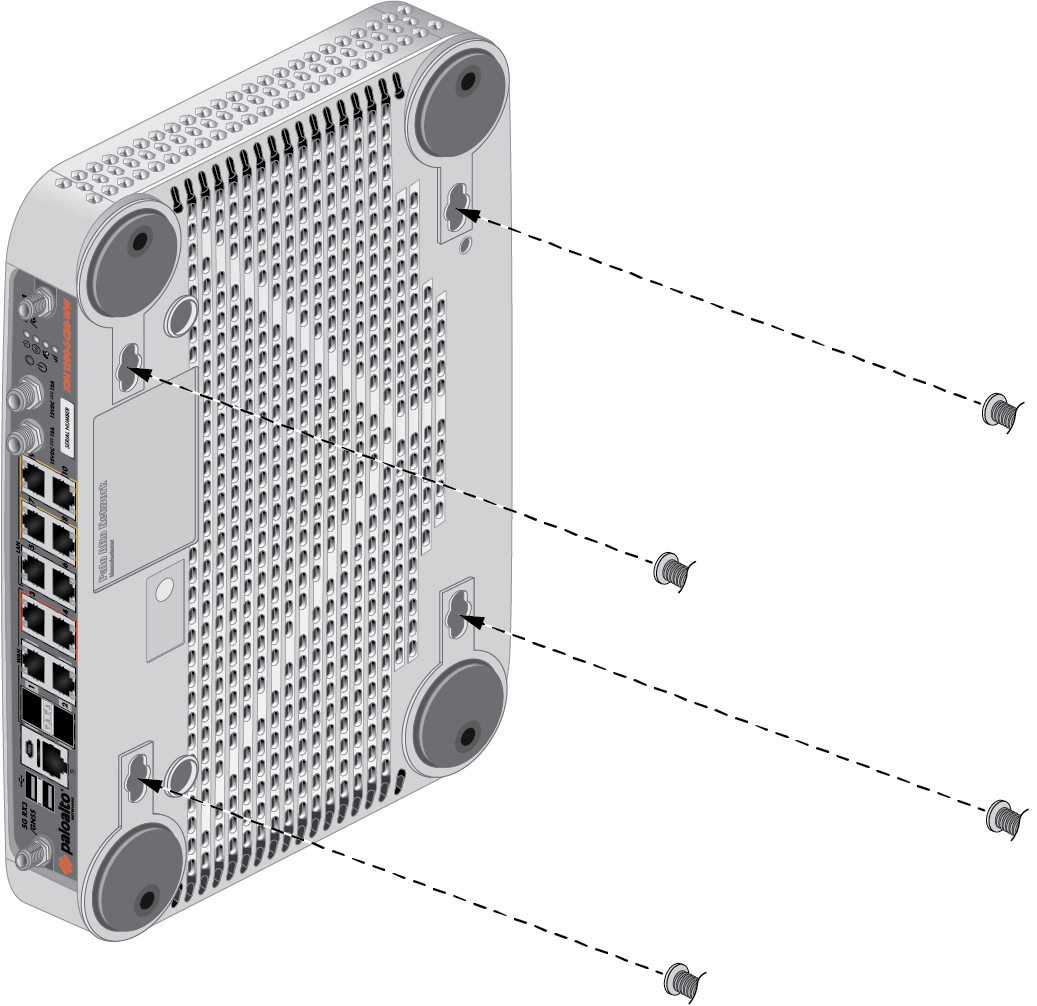

Align the four holes on the bottom of the device with
the four screws on the wall and hang the device on the screws. Make
sure the device is securely connected to each of the four screws before
you let go.

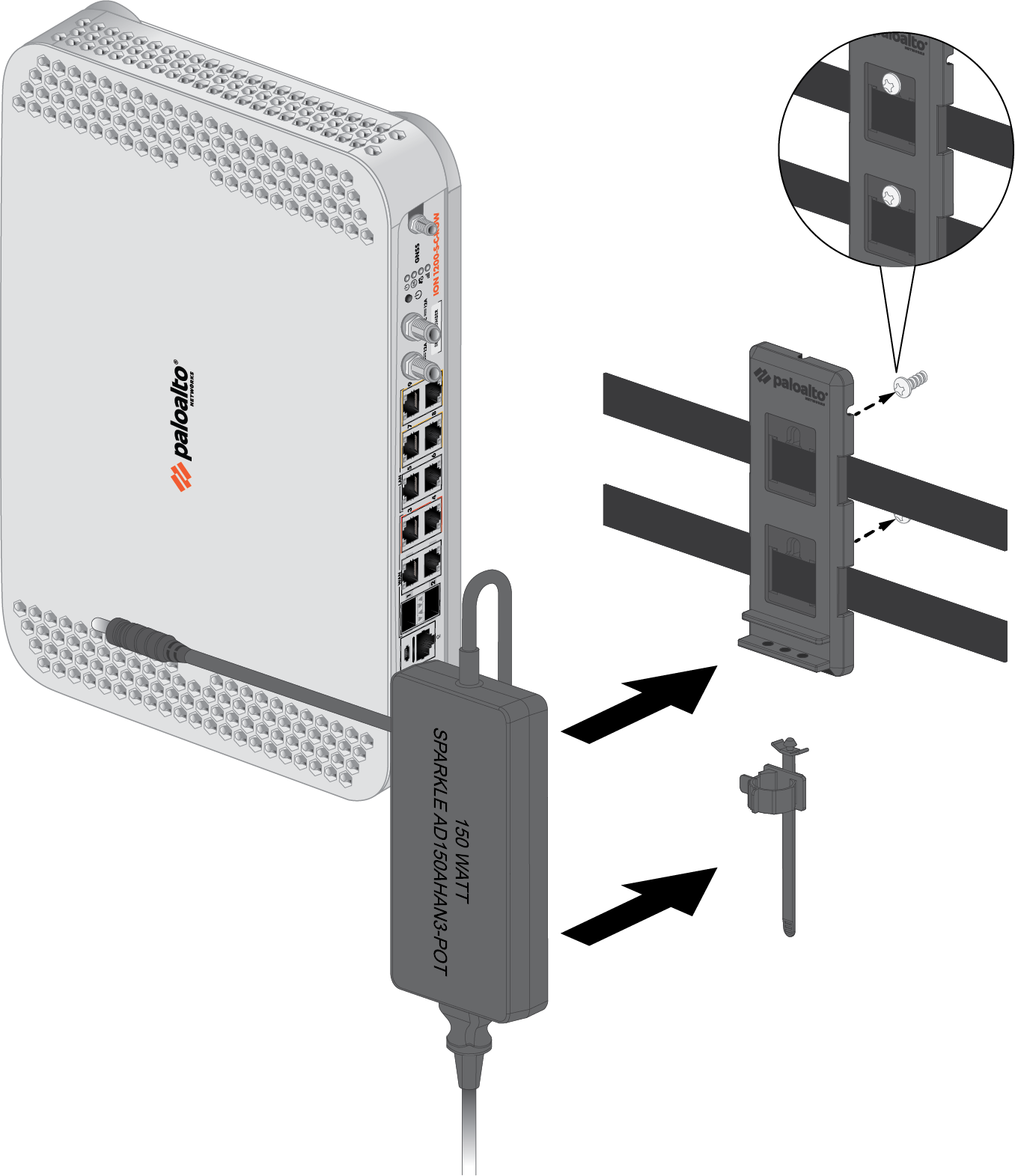

Install the power adapter in the wall-mount bracket using
the Velcro strap and cable tie. Make sure to align the cable tie
with the notches in the bracket to prevent the power cord from falling out.
After you secure the power adapter to the bracket, mount
the bracket next to the device using wood or drywall screws as appropriate.

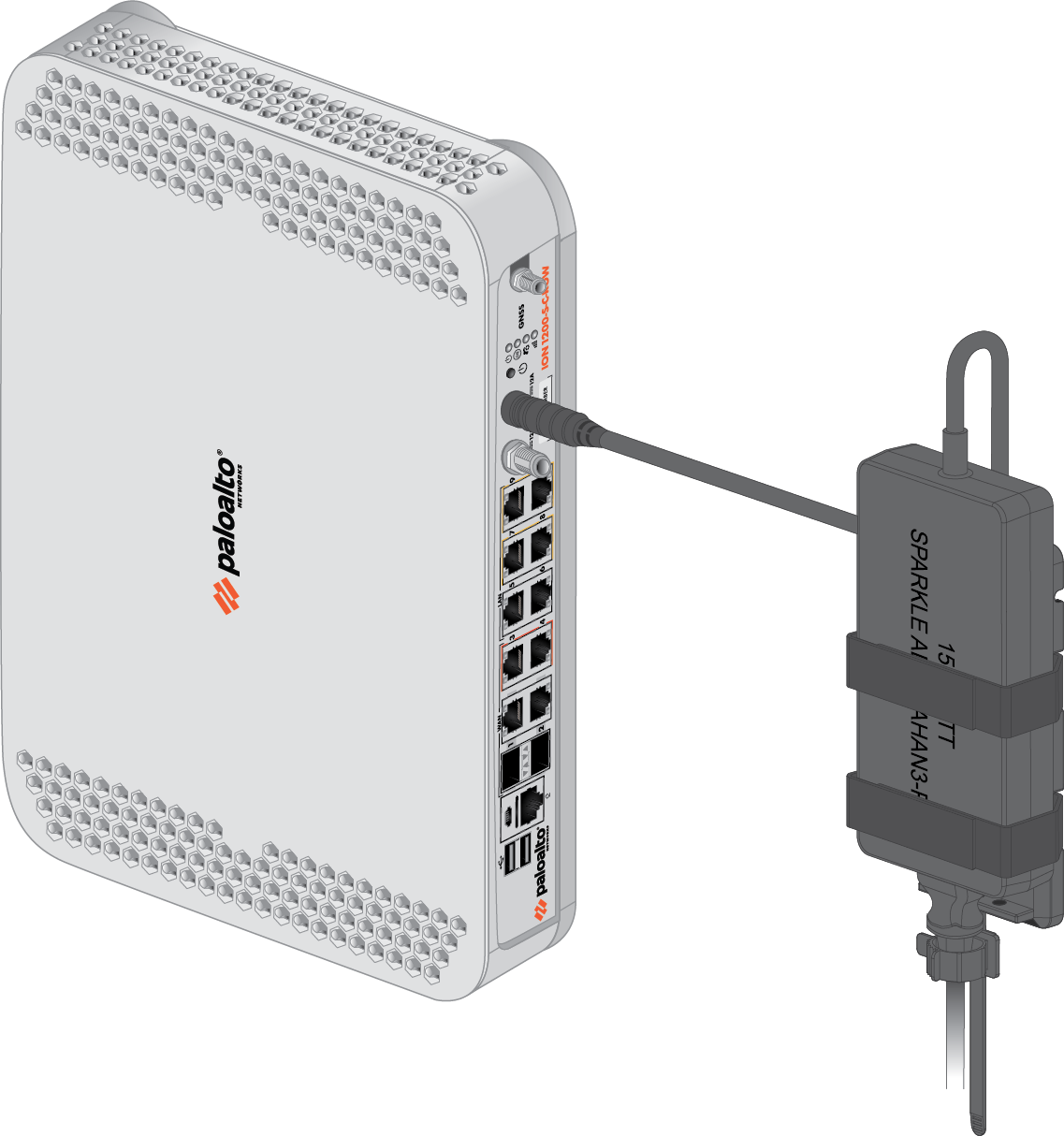

The following
image shows a completed installation for an
ION
1200-S with a single
power adapter. If you need a second power supply, you need to order
a power adapter and an adapter wall mount kit separately.
