ION
1200-S Wall Mount Template
Print the wall mount template and use it to mark the location on a wall.

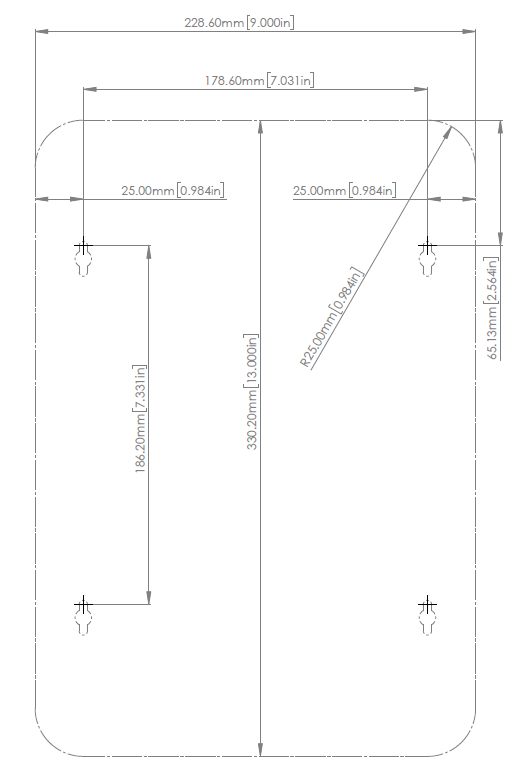

Download and print the following wall mount template to secure the template to the wall where you intend to mount the
ION
1200-S device and use it to mark the location for each of the four wall-mount screws.
