Replace an M-200 or M-600 Appliance
System Drive
Learn how to replace a system drive on an M-200 or M-600
appliance.
If the system drive fails,
the appliance attempts to boot the Maintenance Recovery Tool (MRT)
where you can view error messages and drive status. If the MRT is
not bootable, power down the appliance. For assistance in verifying
the status of the drive to determine if it should be replaced, contact
Palo Alto Networks Support.
The
only difference between replacing an M-200 and M-600 appliance system
drive is that the system drive on an M-200 appliance is located
on the front panel of the appliance (see
M-200
Appliance Front Panel) and the system drive on the M-600
appliance is located on the back panel of the appliance (see
M-600 Appliance Back
Panel).
Replacement drives ship with a factory
default Panorama image with the default configuration. After you
install the new drive, you will need to obtain a backup configuration
that you saved from the failed appliance to
restore your configuration.
To avoid injury to yourself or damage to
your Palo Alto Networks® hardware or the data that resides on the
hardware, read the
Product Safety Warnings.
Power off the appliance by pressing the power
button on the front of the appliance and then remove the AC power cords.

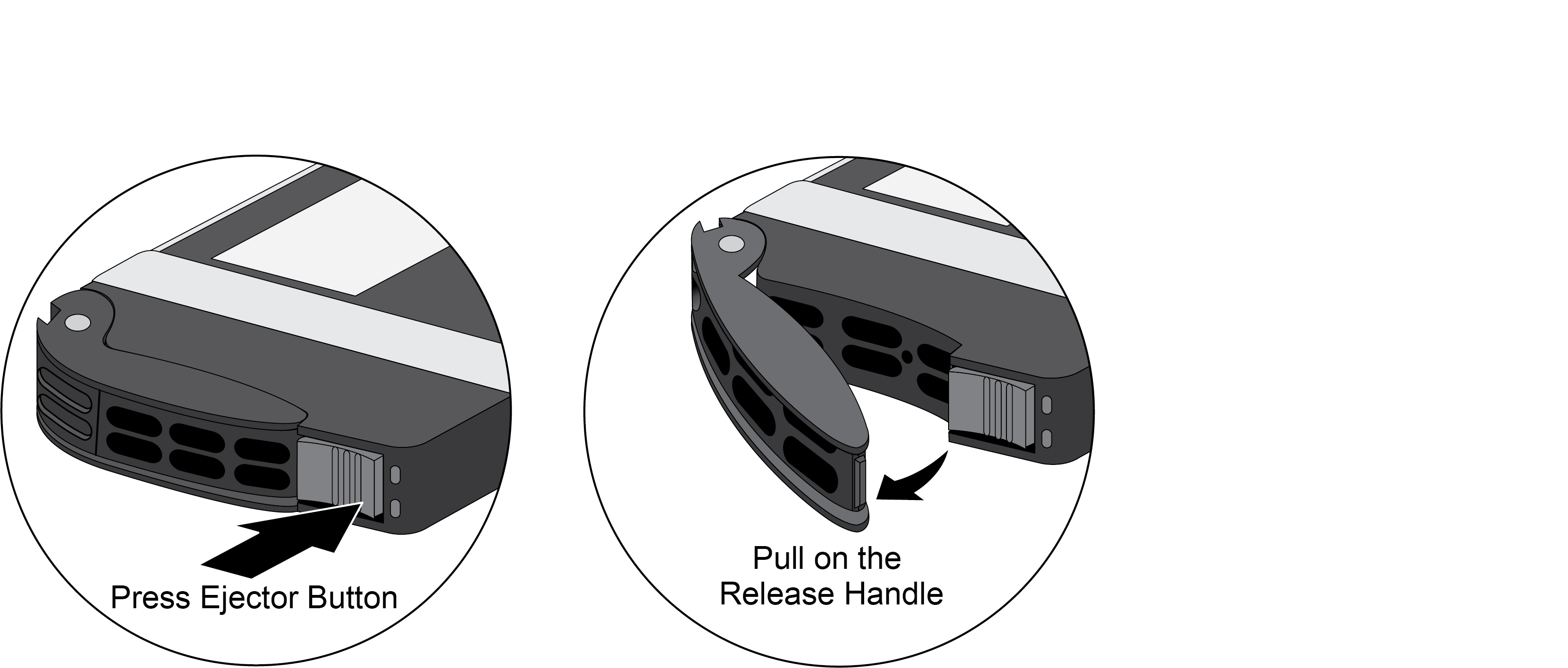

Press the ejector button on the system drive carrier
to release the carrier handle and gently pull the handle toward
you to remove the carrier and drive. The following image shows an
M-600 system drive; the M-200 system drive is similar.
Remove the replacement drive from the packaging and place
it on an antistatic surface.
Install the replacement drive in the drive carrier of
the failed drive.
Place the failed drive next to the replacement
drive with the connectors facing the same direction.

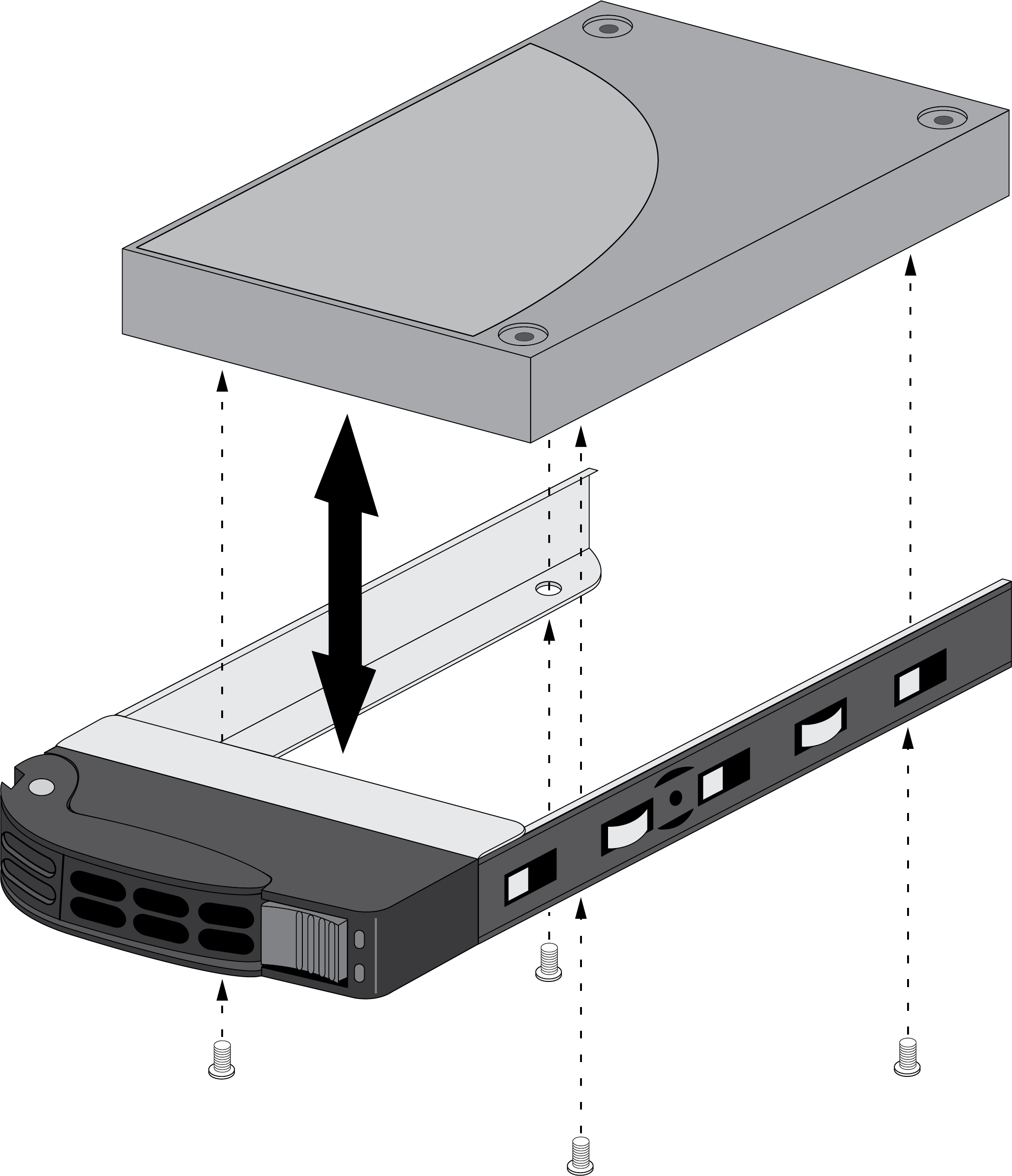

Remove the four screws that hold the failed drive
in the carrier and remove the drive from the carrier.
Install the replacement drive in the carrier and secure
it using the four screws you removed from the failed drive.
Install the replacement drive in the appliance.
Ensure that the drive carrier lever is in
the open position; if it is not, press the ejector button on the
drive carrier to release the lever and pull it out until it is fully
open.
Slide the replacement drive and carrier assembly in
to the empty drive bay until it is about 1/4” (.6cm) from being
fully inserted.
Before fully inserting the drive carrier, ensure that
the lever attaches to the locking mechanism on the appliance and
then close the lever to seat the carrier.
Power on the appliance and connect a standard RJ-45 Ethernet
cable from the RJ-45 port on your computer to the MGT port on the
appliance.
Change the IP address on your computer to an address
in the 192.168.1.0/24 network, such as 192.168.1.2.
From a web browser, go to https://192.168.1.1 and when
prompted, log in to the web interface using the default username
and password (admin/admin).
Perform the following steps to restore the appliance:
Configure the appliance to access your management
network ().
Activate the Support license ().
Activate licenses and subscriptions ().
Upgrade or downgrade the appliance so that the software
version matches the version that was installed on the failed drive.
Import a recent backup configuration to restore the
appliance configuration ( Configuration Management).
For information on configuring management access on an
M-Series appliance, refer to Perform Initial Configuration of the
M-Series Appliance in the Panorama™ Administrator’s guide located
on the
Technical Documentation portal. For information
on how to upgrade or downgrade an M-Series appliance, refer to the
Install Content and Software Updates for Panorama in the Panorama
Administrator’s guide.
