Replace an M-200 or M-600 Appliance Power Supply
Expand all | Collapse all
Replace an M-200 or M-600 Appliance Power Supply
Learn how to replace a power supply on an M-200 or M-600 appliance.
M-200 and M-600 appliances have two AC power
supplies (the second power supply is for redundancy). If one power supply
fails, you can replace it without service interruption as described
in the following procedure.
Identify the failed power supply by viewing the
power supply LED on the back of the appliance; when there is a failure,
the LED turns solid yellow or turns off. The front panel system information
LED also blinks red.
Disconnect the power cord from the failed power supply.

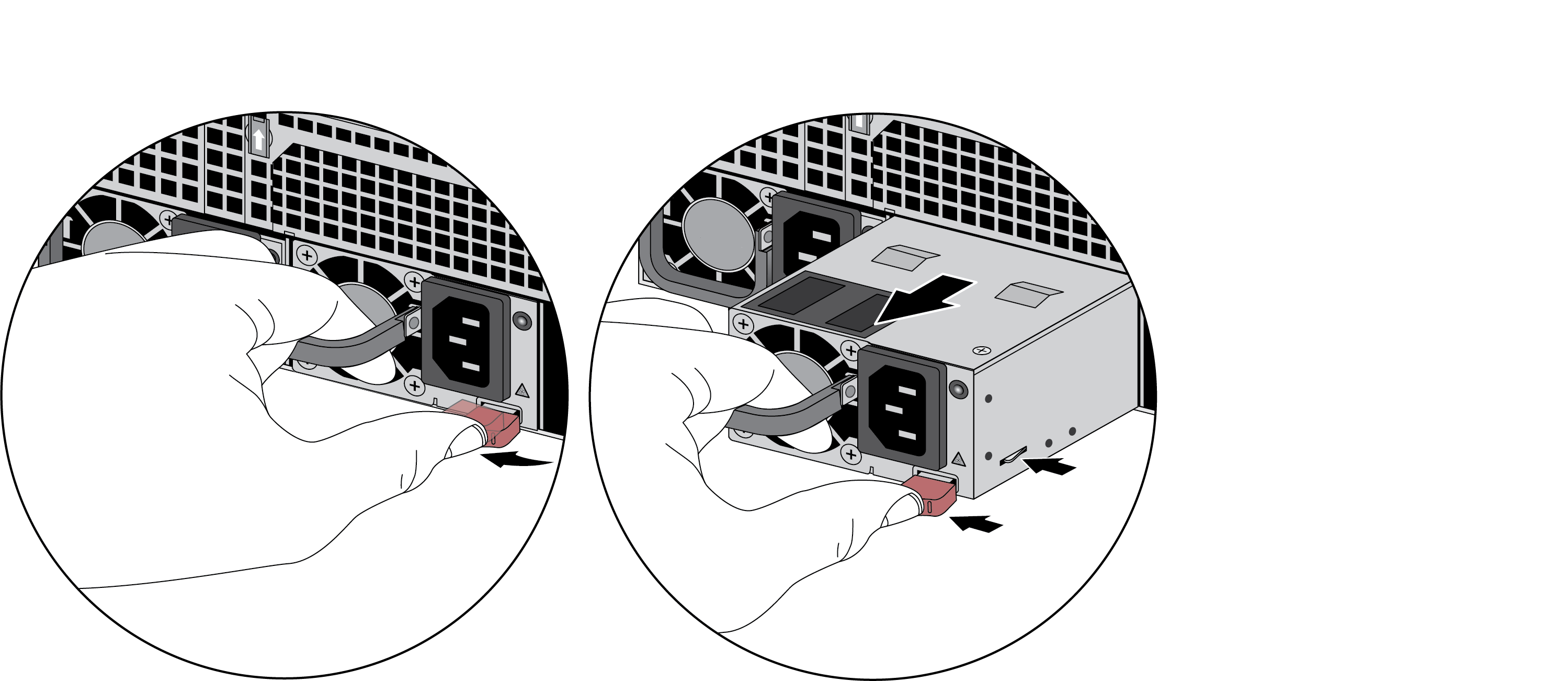

Grasp the handle on the failed power supply and simultaneously
press the release lever to the left and then pull the power supply
outward to remove it.
Remove the replacement power supply from the packaging
and slide it in to the empty power supply slot. Push the power supply
all the way in until the release lever clicks and secures the power
supply.
Connect the AC power cord to the power supply input.
The power supply LED turns green and the front system information
LED stops blinking red.
