Upgrade Firewalls Using Panorama

1. After upgrading Panorama, commit and push the configuration to the firewalls you are planning to upgrade.
   The PAN-OS 9.0 release introduced universally unique identifiers (UUIDs) for policy rules. If you manage firewall policy from Panorama, these UUIDs are generated on Panorama and therefore must be pushed from Panorama. If you do not push the configuration from Panorama prior to upgrading the firewalls, the firewall upgrade will not succeed because it will not have the UUIDs.
2. Save a backup of the current configuration file on each managed firewall you plan to upgrade.
   Although the firewall automatically creates a configuration backup, it is a best practice to create and externally store a backup before you upgrade.

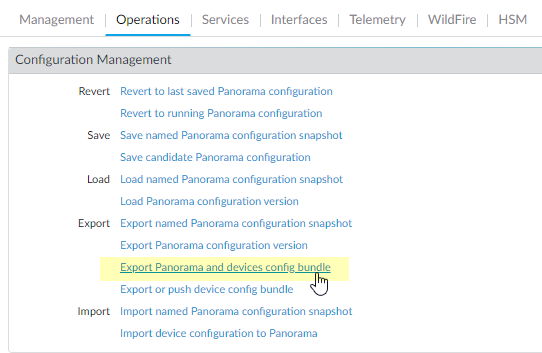

   1. From the Panorama web interface, select PanoramaSetupOperations and click Export Panorama and devices config bundle to generate and export the latest configuration backup of Panorama and of each managed appliance.

   2. Save the exported file to a location external to the firewall. You can use this backup to restore the configuration if you have problems with the upgrade.
3. Update the content release version on the firewalls you plan to upgrade.
   Refer to the Release Notes for the minimum content release version required for PAN-OS 10.0. Make sure to follow the Best Practices for Application and Threat Updates when deploying content updates to Panorama and managed firewalls.

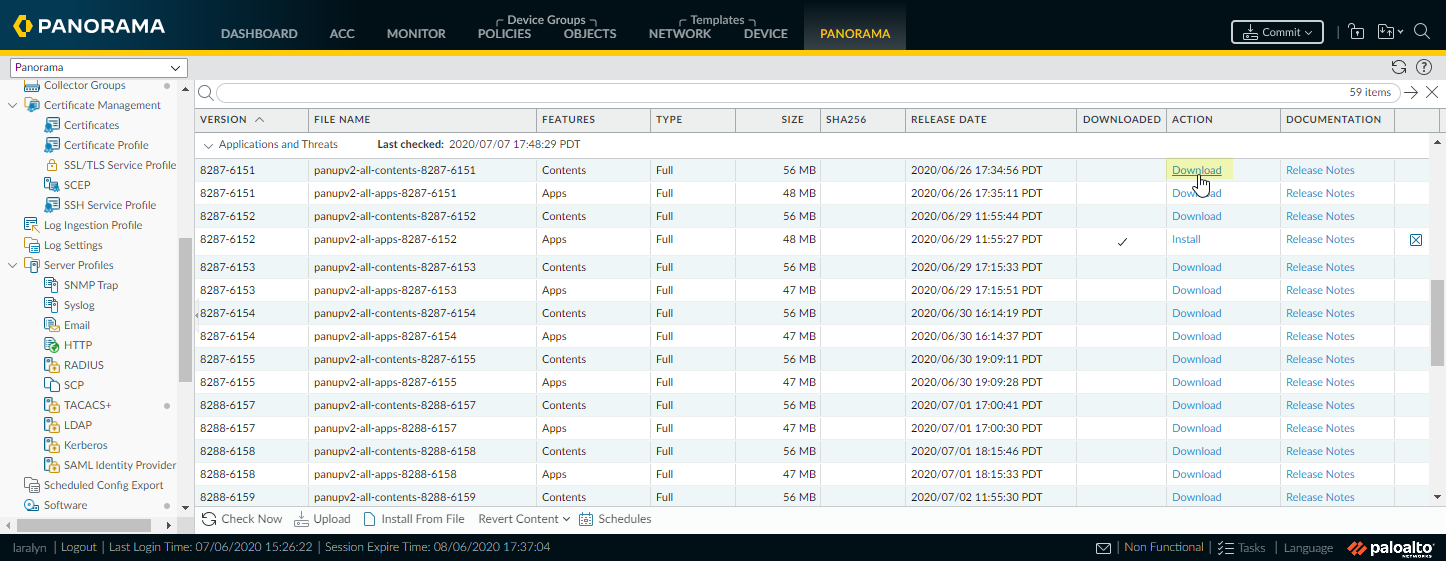

   1. Select PanoramaDevice DeploymentDynamic Updates and Check Now for the latest updates. If an update is available, the Action column displays a Download link.

   2. If not already installed, Download the latest content release version.

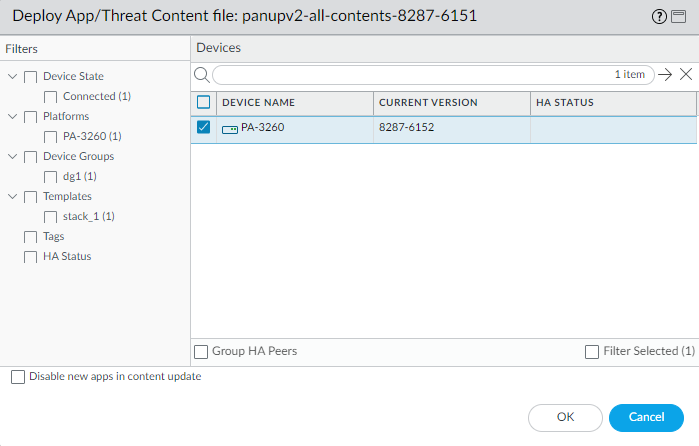

   3. Click Install, select the firewalls on which you want to install the update, and click OK. If you are upgrading HA firewalls, you must update content on both peers.

      By default, you can upload a maximum of two software or content updates of each type to a Panorama appliance and if you download a third update of the same type, Panorama will delete the update for the earliest version of that type. If you need to upload more than two software updates or content updates of a single type, use the setmax-num-images count <number> CLI command to increase the maximum.
4. (HA firewall upgrades only) If you will be upgrading firewalls that are part of an HA pair, disable preemption. You need only disable this setting on one firewall in each HA pair.

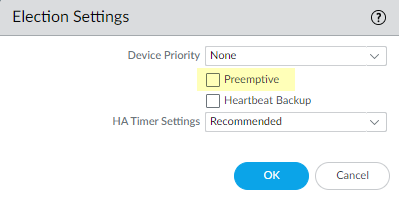

   1. Select DeviceHigh Availability and edit the Election Settings.
   2. If enabled, disable (clear) the Preemptive setting and click OK.

   3. Commit your change. Make sure the commit is successful before you proceed with the upgrade.
5. Determine the Upgrade Path to PAN-OS 10.0
   You cannot skip installation of any feature release versions in the path from the currently running PAN-OS version to PAN-OS 10.0.0. Review the known issues and changes to default behavior in the Release Notes and upgrade/downgrade considerations in the New Features Guide for each release through which you pass as part of your upgrade path.

   If upgrading more than one firewall, streamline the process by determining upgrade paths for all firewalls before you start downloading images.
6. Download the target PAN-OS 10.0 release image.
   1. Select PanoramaDevice DeploymentSoftware and Check Now for the latest release versions.

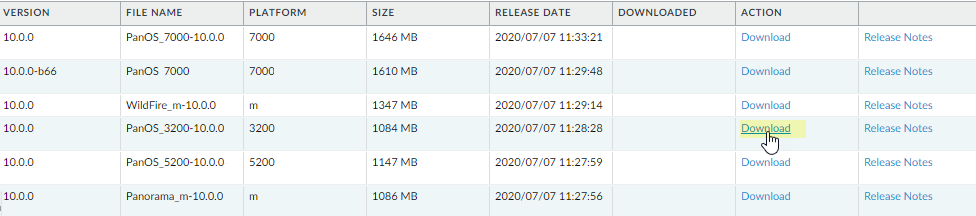

   2. Download the firewall-specific file (or files) for the release version to which you are upgrading. You must download a separate installation file for each firewall model (or firewall series) that you intend to upgrade.

      For example, to upgrade your PA-3200 firewalls to PAN-OS 10.0.0, download the PanOS_3200-10.0.0 image. After you successfully download an image, the Action column changes to Install for that image.

7. Install the PAN-OS 10.0 software update on the firewalls.
   You must upgrade your hub firewalls from PAN-OS 10.0.0 to PAN-OS 10.0.1 or later release before you upgrade your branch firewalls. Upgrading branch firewalls before hub firewalls may result in incorrect monitoring data (PanoramaSD-WANMonitoring) and for SD-WAN links to erroneously display as down.

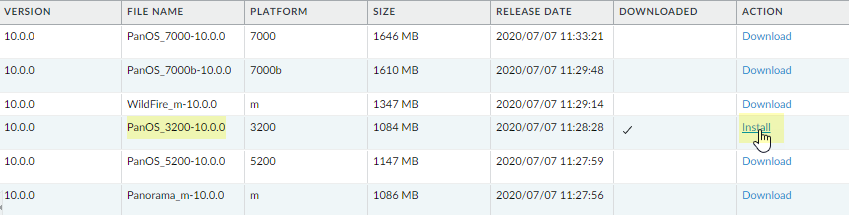

   1. Click Install in the Action column that corresponds to the firewall models you want to upgrade. For example, if you want to upgrade your PA-3200 firewalls, click Install in the row that corresponds to PanOS_3200-10.0.0.
   2. In the Deploy Software file dialog, select all firewalls that you want to upgrade. To reduce downtime, select only one peer in each HA pair. For active/passive pairs, select the passive peer; for active/active pairs, select the active-secondary peer.
   3. (HA firewall upgrades only) Make sure Group HA Peers is not selected.
   4. Select Reboot device after install.
   5. To begin the upgrade, click OK.
   6. After the installation completes successfully, reboot using one of the following methods:
      • If you are prompted to reboot, click Yes.
      • If you are not prompted to reboot, select DeviceSetupOperations and Reboot Device.
   7. After the firewalls finish rebooting, select PanoramaManaged Devices and verify the Software Version is 10.0.0 for the firewalls you upgraded. Also verify that the HA status of any passive firewalls you upgraded is still passive.
8. (HA firewall upgrades only) Upgrade the second HA peer in each HA pair.
   1. (Active/passive upgrades only) Suspend the active device in each active/passive pair you are upgrading.
      1. Switch context to the active firewall.
      2. In the High Availability widget on the Dashboard, verify that Local firewall state is Active and the Peer is Passive).

      3. From the device CLI, enter the following operational command to suspend the device:

         request high-availability state suspend

         .
      4. Go back to the High Availability widget on the Dashboard and verify that Local changed to Passive and Peer changed to Active.

   2. Go back to the Panorama context and select PanoramaDevice DeploymentSoftware.
   3. Click Install in the Action column that corresponds to the firewall models of the HA pairs you are upgrading.
   4. In the Deploy Software file dialog, select all firewalls that you want to upgrade. This time, select only the peers of the HA firewalls you just upgraded.
   5. Make sure Group HA Peers is not selected.
   6. Select Reboot device after install.
   7. To begin the upgrade, click OK.
   8. After the installation completes successfully, reboot using one of the following methods:
      • If you are prompted to reboot, click Yes.
      • If you are not prompted to reboot, select DeviceSetupOperations and Reboot Device.
   9. (Active/passive upgrades only) From the CLI of the peer you just upgraded, run the following command to make the firewall functional again:
      request high-availability state functional
9. Verify the software and content release version running on each managed firewall.
   1. On Panorama, select PanoramaManaged Devices.
   2. Locate the firewalls and review the content and software versions in the table.
      For HA firewalls, you can also verify that the HA Status of each peer is as expected.
10. (HA firewall upgrades only) If you disabled preemption on one of your HA firewalls before you upgraded, then edit the Election Settings (DeviceHigh Availability) and re-enable the Preemptive setting for that firewall and then Commit the change.
