Hierarchy Paths

Where Can I Use This?What Do I Need?
  • WildFire Appliance
  • WildFire License

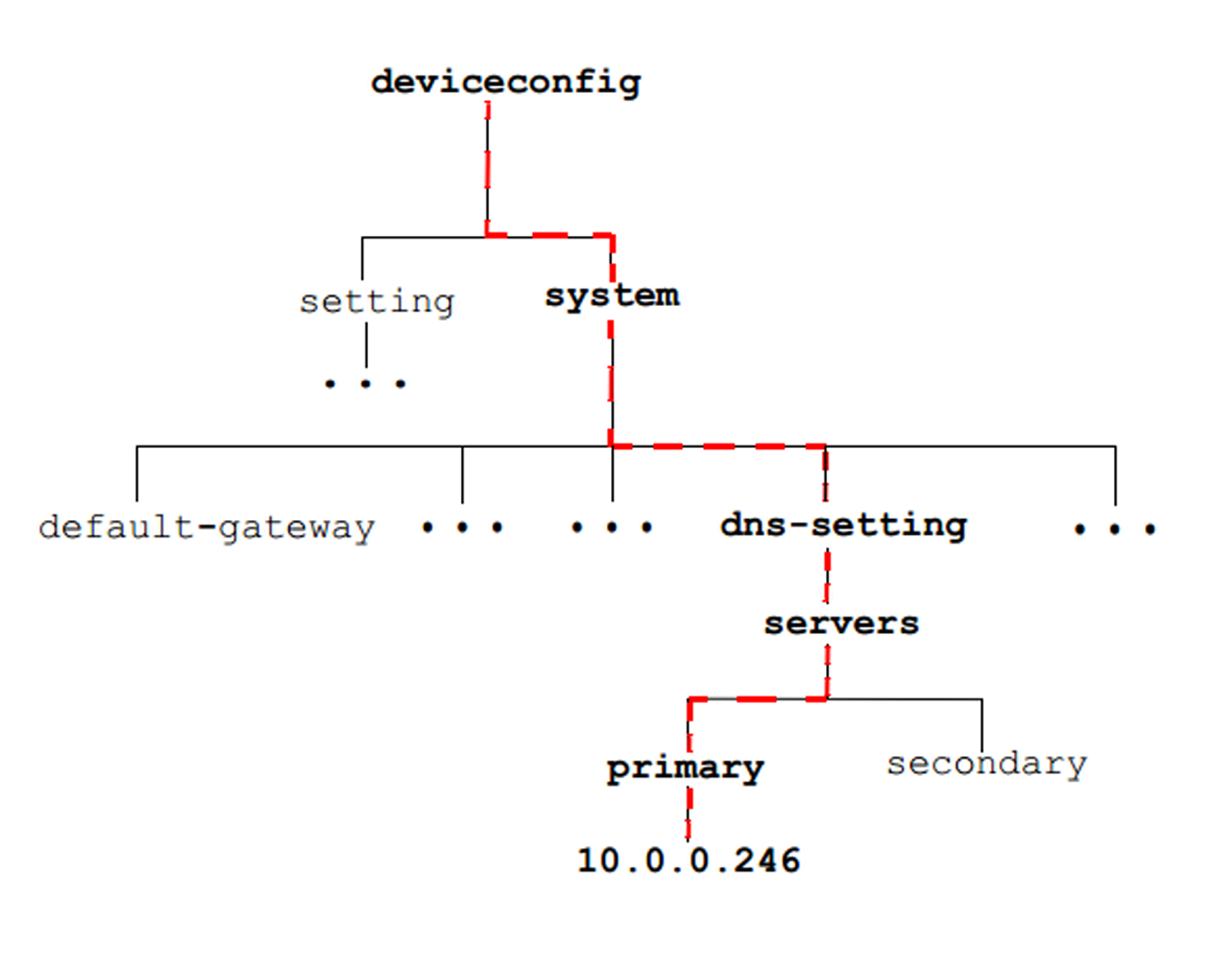

When entering commands, the path is traced through the hierarchy as follows:
For example, the following command assigns the primary DNS server 10.0.0.246 for the appliance:
[edit]
username@hostname# set deviceconfig system dns-setting servers primary 10.0.0.246
This command generates a new element in the hierarchy and in the output of the following show command:
[edit]
username@hostname# show deviceconfig system dns-settings
dns-setting {
    servers {
      primary 10.0.0.246
      }
  }
[edit]
username@hostname#
