Learn about the PA-5200 firewall back-panel components.

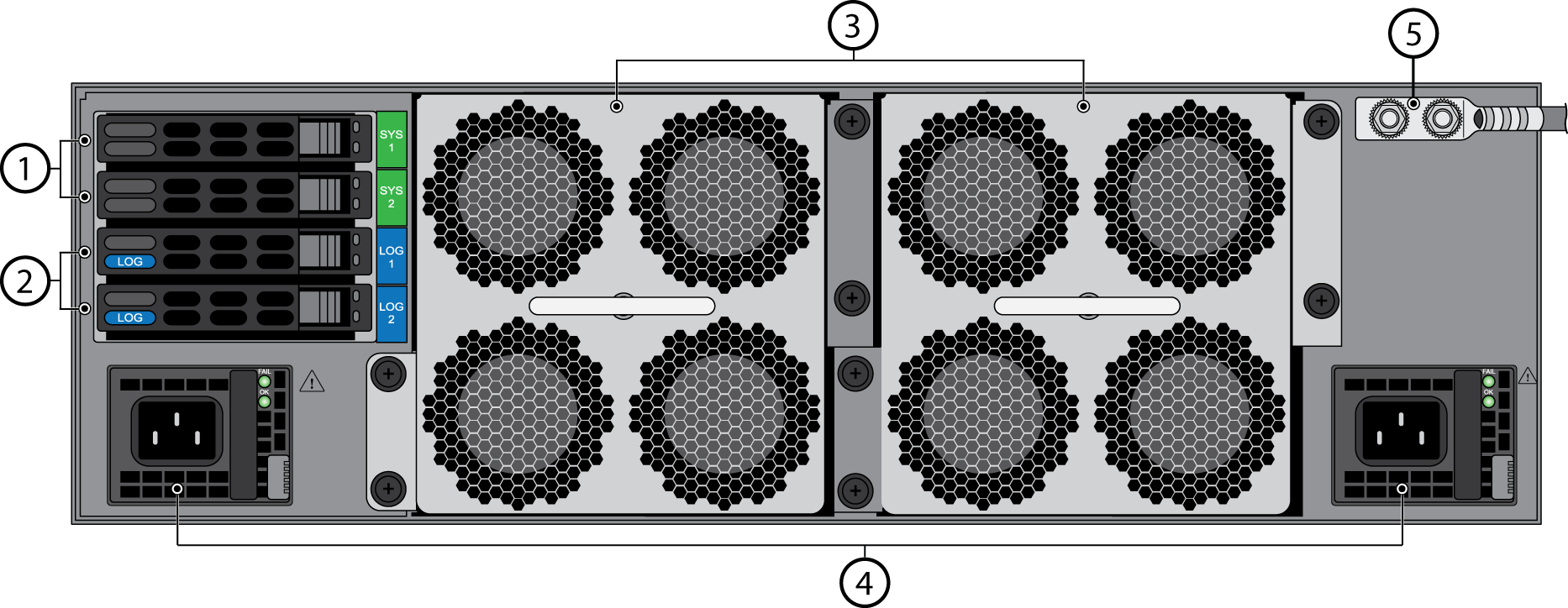

The following image shows the back panel
of PA-5200 Series firewalls and the table describes each back-panel
component. The only difference between PA-5200 Series firewall back
panels is the power supply type installed—they each can have two
AC or two DC power supplies. The image shows a PA-5220 firewall
with AC power supplies. To view an image of the DC power supplies,
see Connect DC Power to a PA-5200 Series Firewall.
Item
Component
Description
1
SYS 1 and SYS 2 drives
Two hot-swappable 240GB solid-state drives
(SSDs) in a RAID-1 pair (240GBs total). The drives are used to store
the PAN-OS system files and system logs.
2
LOG 1 and LOG 2 drives
Drives used for storing network traffic logs. Depending on the drives installed, they are one of
the following:
Two hot-swappable 2TB hard disk drives (HDDs) in a RAID-1
pair (2TBs total).
Two hot-swappable 1.92TB solid state drives (SSDs) in a
RAID-1 pair (1.92TBs total).
3
Exhaust fans trays
Two fan trays that provide ventilation and
cooling for the firewall. Each fan tray contains four fans and a
status LED.
While facing the back of the firewall, fan tray
1 is on the left and fan tray 2 is on the right.
Do not use the fan tray handles to lift
or move the firewall.
4
PWR 1 and PWR2
Use the power supply inputs (either AC or
DC) to connect power to the firewall.
While facing the back
of the firewall, PWR 1 is on the left and PWR 2 is on the right.
5
Ground stud
Use the two-post ground stud to connect
the firewall to earth ground. The firewall ships with a 6AWG two-hole
ground lug attached to the ground studs, but does not include a
ground cable.
