Bootstrap the VM-Series Firewall on Azure Stack HCI
The VM-Series firewall on Azure Stack HCI supports bootstrap using an ISO image. Bootstrapping
allows you to create a repeatable and streamlined process of deploying new VM-Series
firewalls on your network because it allows you to create a package with the model
configuration for your network and then use that package to deploy VM-Series
firewalls anywhere. For more information, see Bootstrap the VM-Series Firewall
and bootstrap parameters to configure
on VM-series firewall.
Perform the following steps to bootstrap the VM-Series firewall on Azure Stack HCI
using an ISO image:
- Log in to Windows Admin Center.

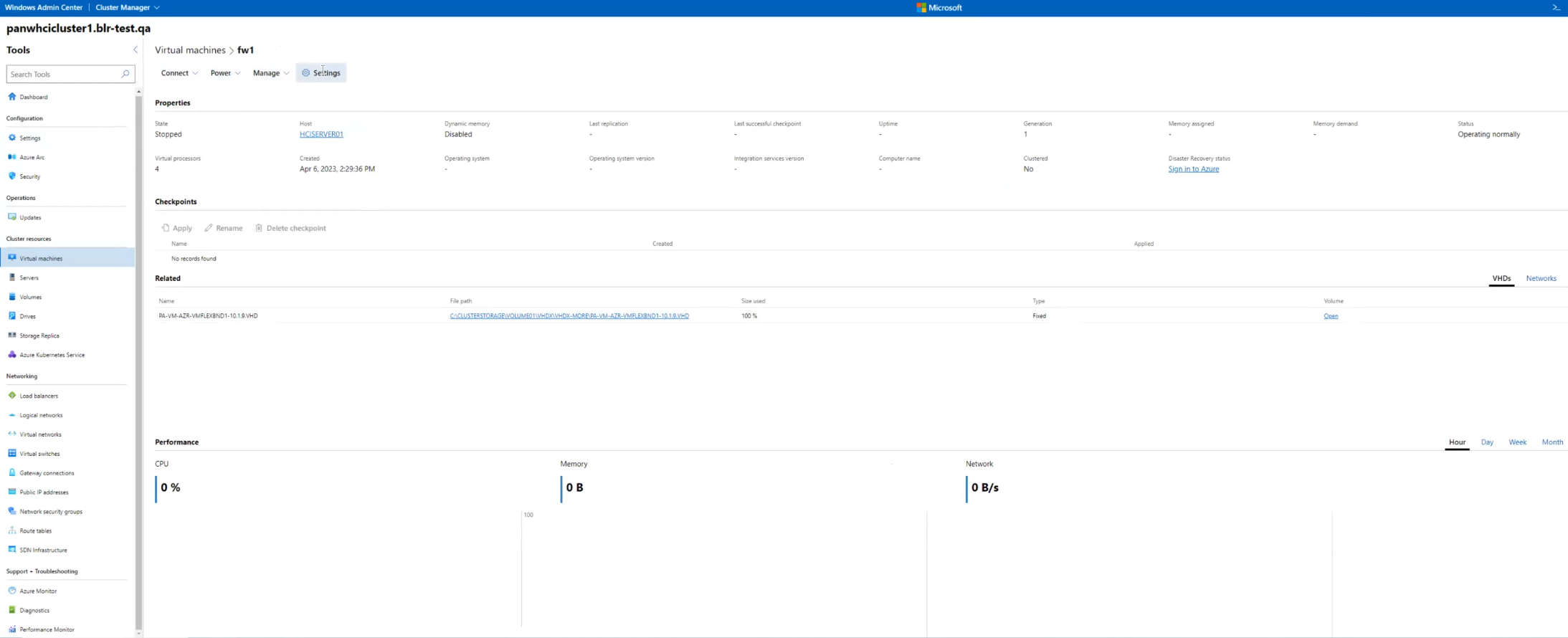

- Select HCI Cluster and go to Virtual Machine >
Settings.
![]()
- Go to Disks.
![]()

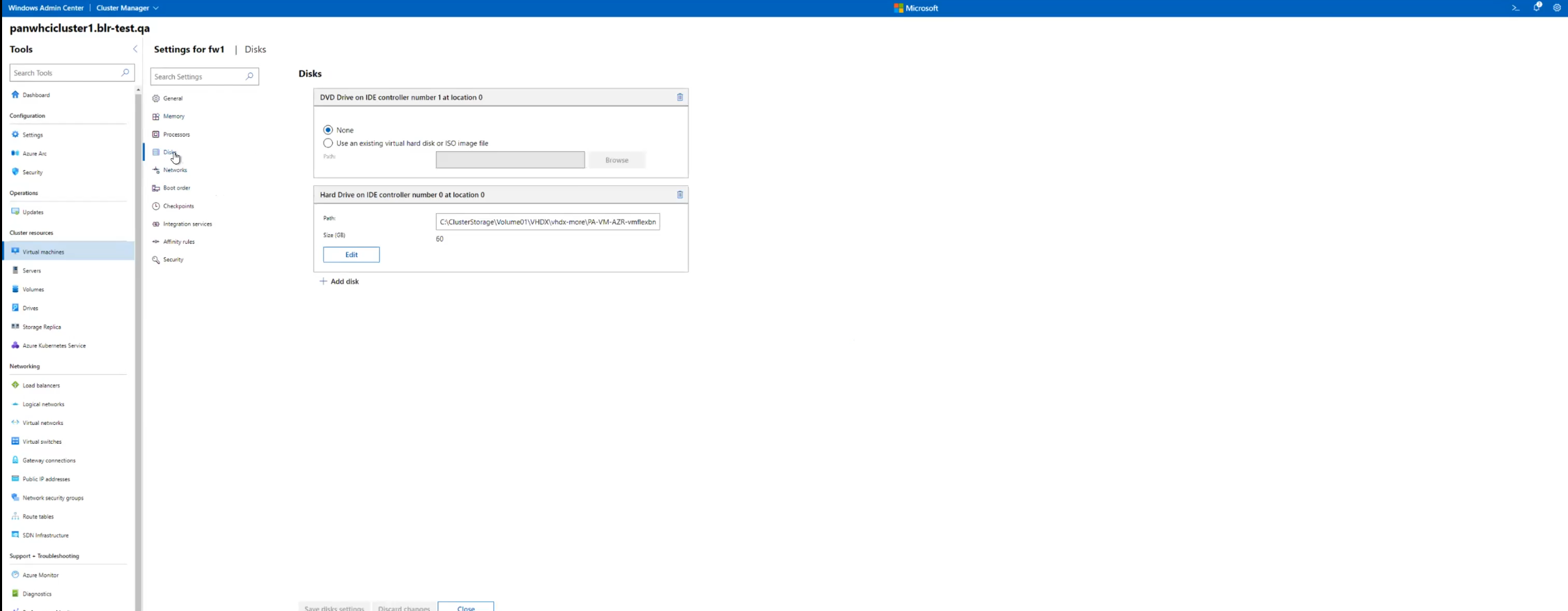

- Delete the DVD Drive on IDE Controller number 1 at location 0.

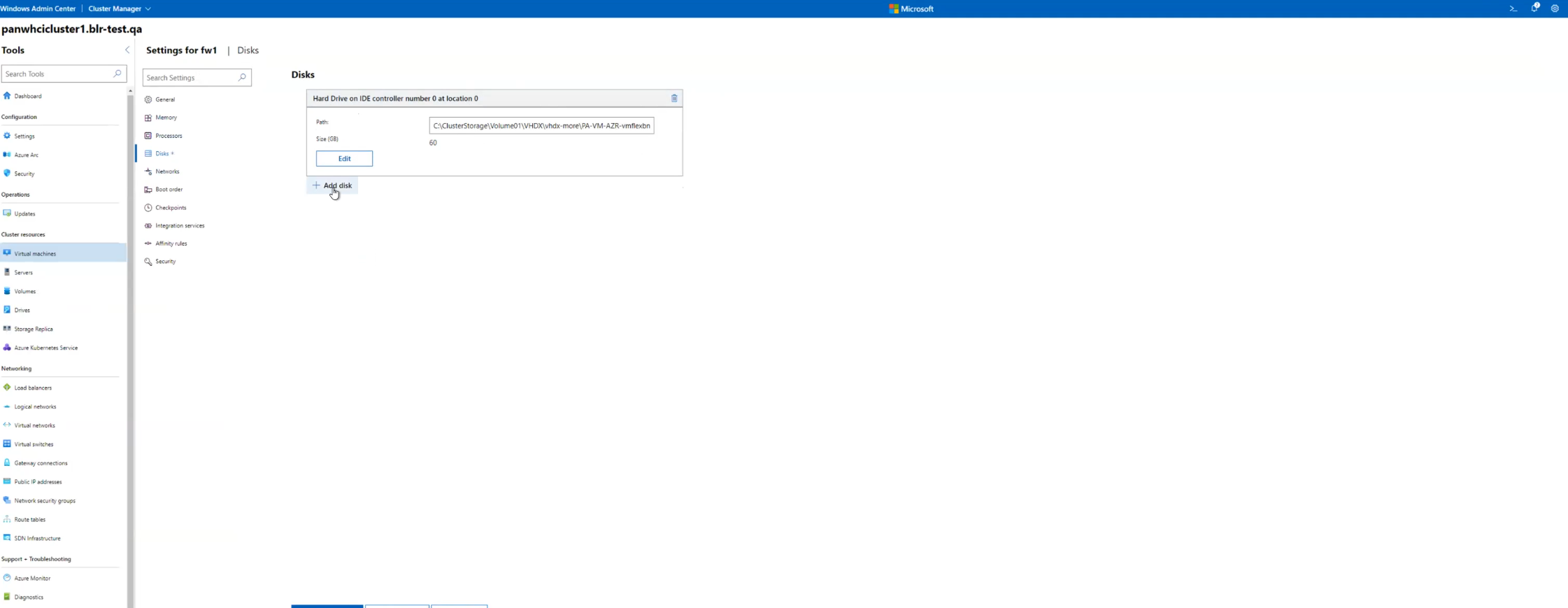

- Click Add disk.
![]()

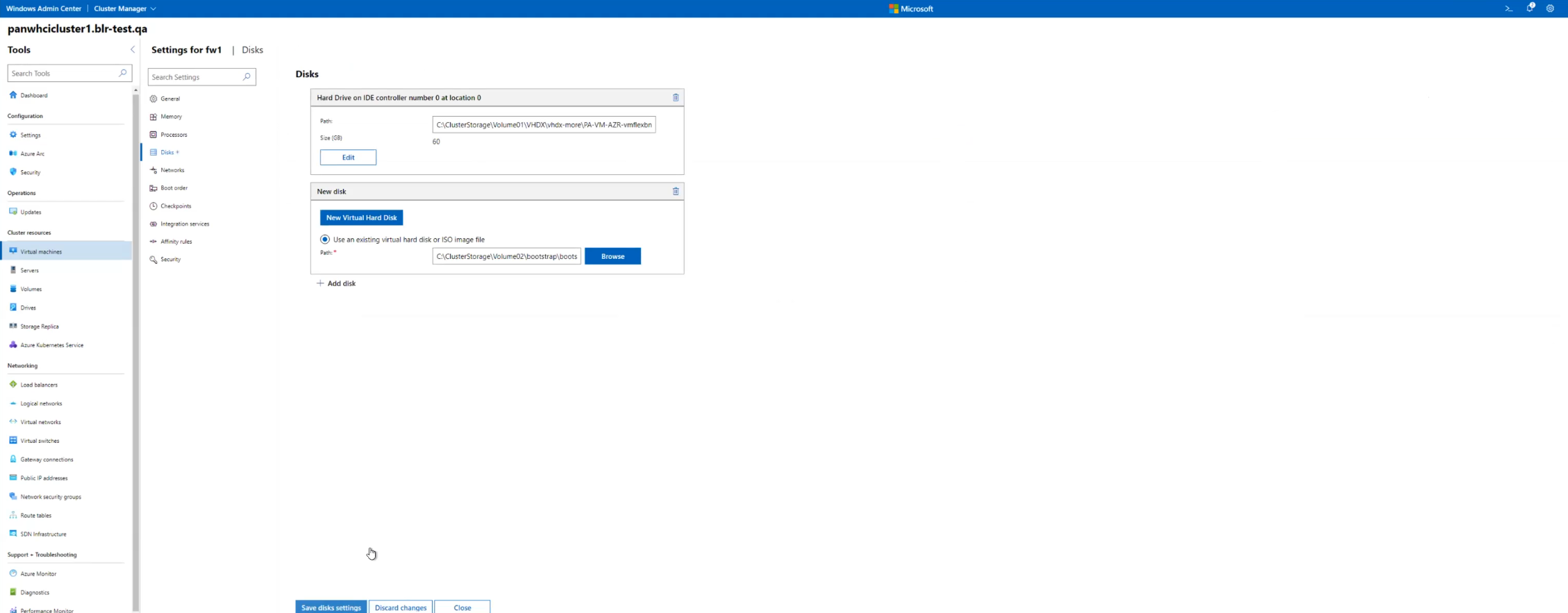

You can use an existing virtual hard disk or ISO image file.![]()
For more information on steps to bootstrap the VM-Series firewall on Azure Stack HCI, see Bootstrap the VM-Series Firewall on Hyper-V with an ISO. - Click Save Disk Settings.If IDE Controller 0 is at location 0, the bootstrap ISO must be under IDE Controller 0 at location 1
