Install a License API Key
Learn how to install a license API key.
The license API key can be used to activate,
change, or deactivate a license. This procedure applies for a VM-Series
firewall or Panorama deployment.
You must have Super User
privileges to retrieve the license API key from the Customer Support
Portal and use the CLI to install the key on the firewall or Panorama.
On
Panorama, when you install a license API key Panorama pushes the
API key to its managed devices. If the managed device has an API
key installed, Panorama overwrites the old API key with the new
one.

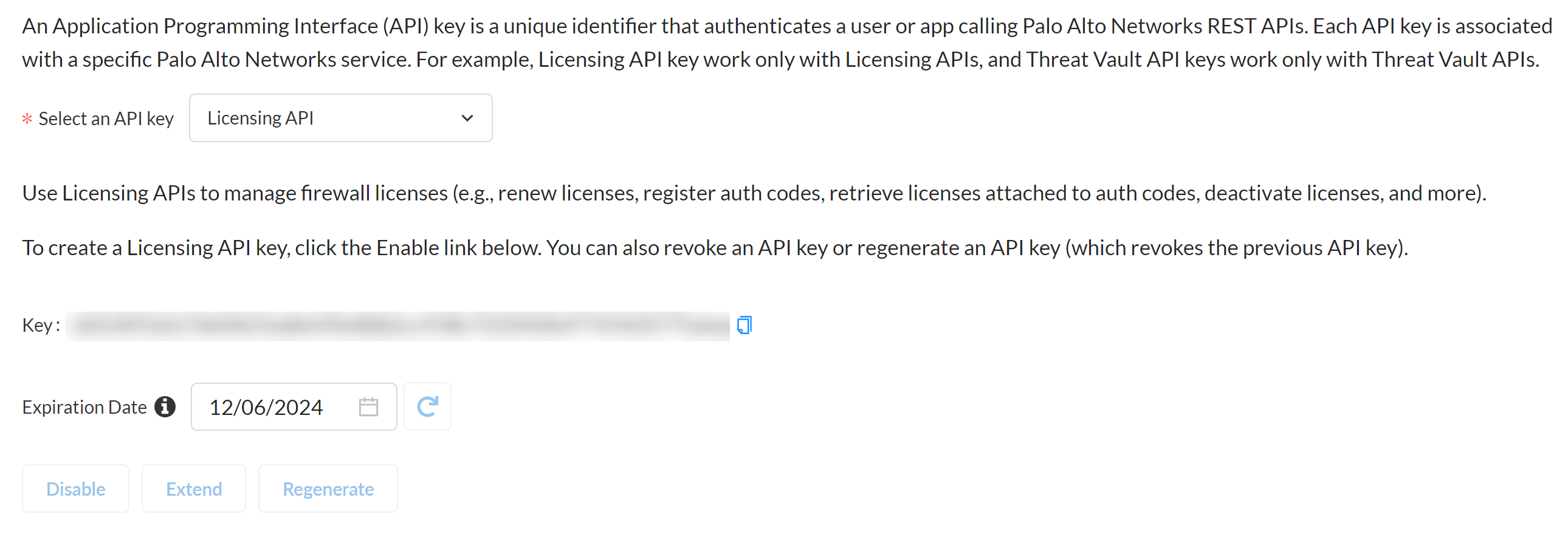

- Retrieve the license API key from the Customer Support Portal.
- Log in to the Customer Support Portal.
- Select ProductAPI Key Management.
- Select Licensing API from the Select an API key drop-down.
- Copy the API key.
![]()
- Use the CLI to install the API key copied in the previous
step. Paste the key into the request:request license api-key set key <key>
- (optional) To replace a license deactivation
API key, use the following CLI command to delete an installed API
key.request license api-key deleteIf you delete the API key you must install another license deactivation key before you can deactivate licenses.
