Create a VRF and Bridge Domain

A tenant requires a VRF for all bridge domains and subnets. In this example, you will create a single, common VRF for the firewall and endpoints. Then configure a dedicated bridge domain for your firewall and disable dataplane learning. Disabling dataplane learning is required to use Policy Based Redirect in a bridge domain.

Create a VRF.
1. On the Tenants tab, double-click on the name of your tenant.
2. Select NetworkingVRFs.

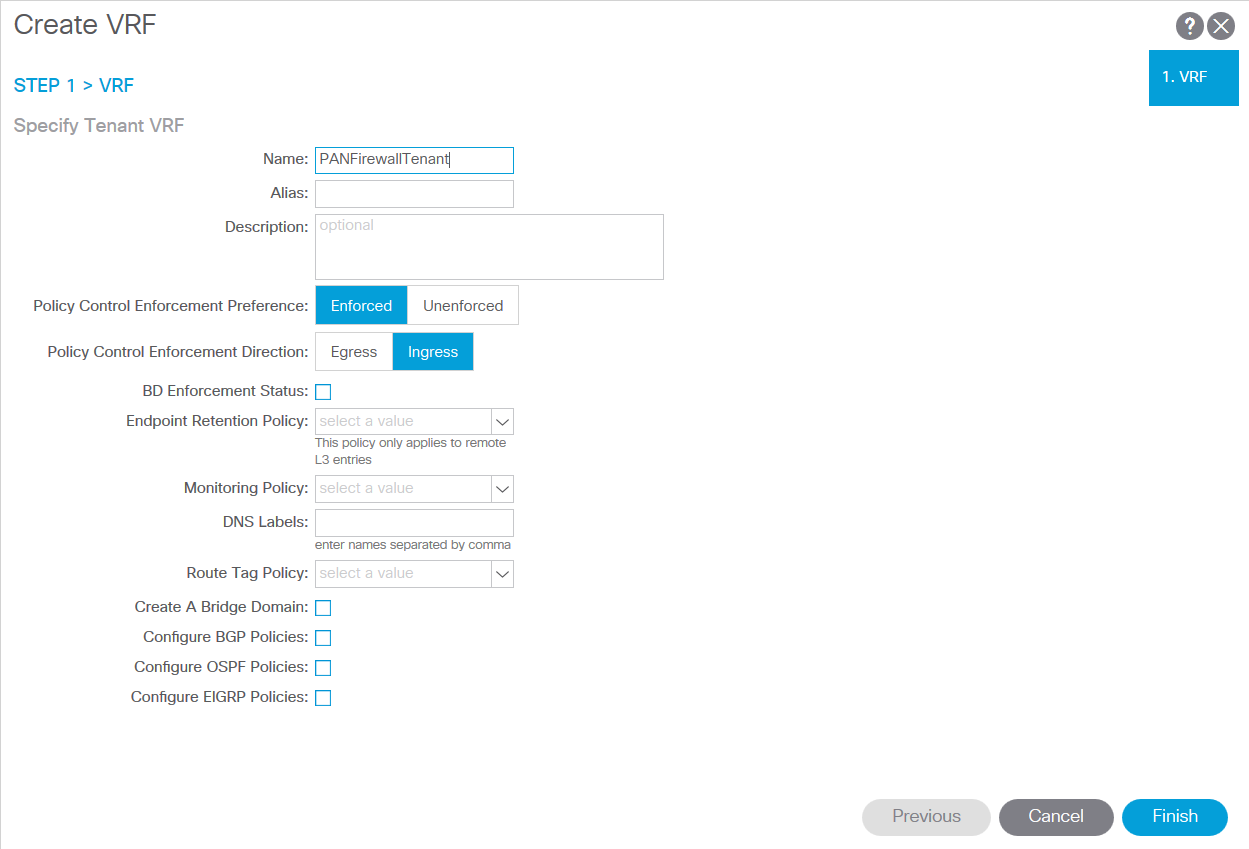

3. Right-click VRFs and select Create VRF.
4. Enter a descriptive Name for your VRF.
5. Clear the Create A Bridge Domain check box.
6. Click Finish.
Create a bridge domain for the firewall.
1. On the Tenants tab, double-click on the name of your tenant.
2. Select NetworkingBridge Domains.

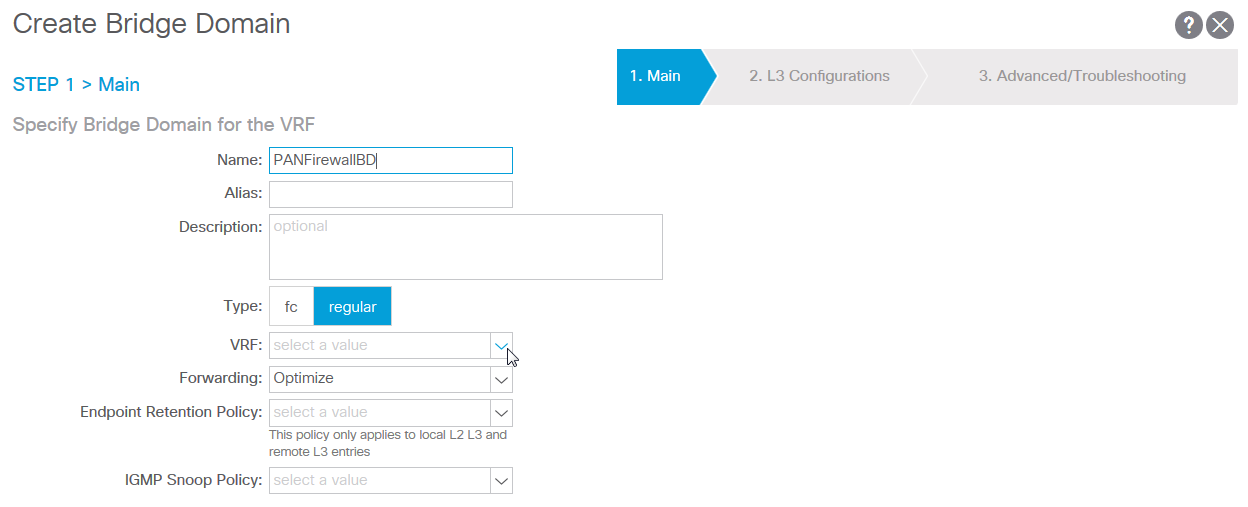

3. Right-click Bridge Domains and select Create Bridge Domain.
4. Enter a descriptive Name for your bridge domain.
5. Select the VRF you created in the previous procedure from the VRF drop-down.
6. Click Next.
