Use the Template to Deploy an AKS Cluster

1. On GitHub, go to PaloAltoNetworks/azure-aks and locate the build package in the repository.
2. Unzip the build package. Edit the files azuredeploy.json and parameters.json for your own deployment, and save.
3. Issue the following Azure CLI commands to deploy the template.

   az group deployment validate --resource-group RG_NAME
   --template-file azuredeploy.json
   --parameters @parameters.json

   az group deployment create --name DEPLOYMENT_NAME
   --resource-group RG_NAME
   --template-file azuredeploy.json
   --parameters @parameters.json

4. Deploy your applications or services on the AKS Cluster.
   1. Annotate your service YAML file so that the type is load balancer, and annotate it as service.beta.kubernetes.io/azure-load-balancer-internal: "true". For example:

        apiVersion: v1
          kind: Service
        metadata:
         name: azure-vote-front
         labels:
           service: "azure-vote-front"
           tier: "stagingapp"
         annotations:
           service.beta.kubernetes.io/azure-load-balancer-internal: "true"
        spec:
         type: LoadBalancer
       ports:
       - port: 80
       selector:
        app: azure-vote-front

   2. If you have not done so, create AKS cluster authentication before continuing.
   3. Deploy your service on your AKS cluster.
      For example, you can deploy your application through kubectl:

      kubectl apply -f myapplication.yaml

      For a sample, see: https://github.com/Azure-Samples/azure-voting-app-redis/blob/master/azure-vote-all-in-one-redis.yaml
   4. Use kubectl to get the service IP for the deployed service.

      kubectl get services -o wide

      In the EXTERNAL-IP column 10.240.0.97 is for the ILB, according to your annotation in Step a. Use the service IP to create a user defined route on Azure.
5. Create a UDR rule to point your service to the Firewall ILB behind the Application Gateway.

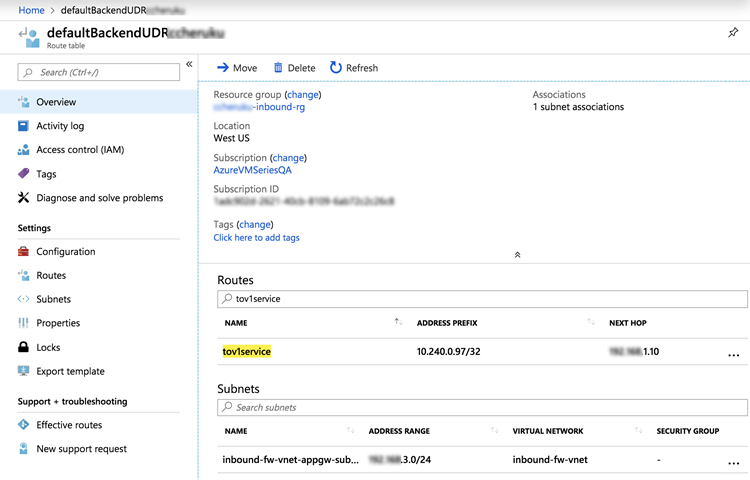

   In Azure, go to your inbound spoke resource group, view the route table and add a new route based on the destination service IP. In the following screen, the value in the tov1service ADDRESS PREFIX column is the service IP.

Connect the AKS Cluster in Azure Plugin for Panorama

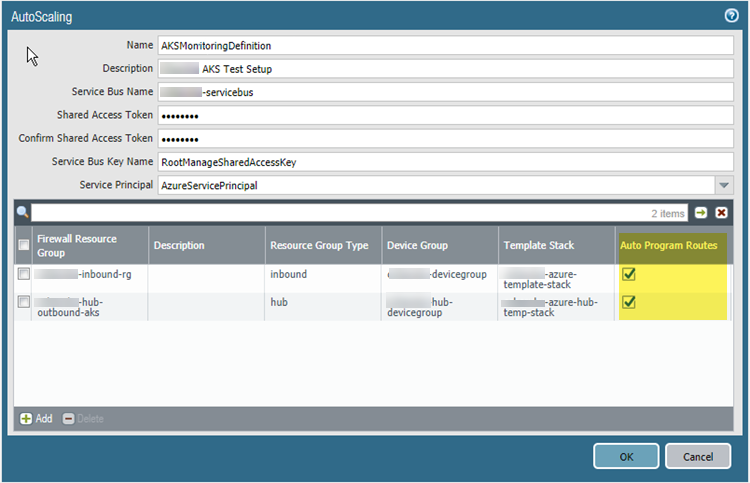

1. Select PanoramaAzureDeployments to view the monitoring definition you created when you configured the deployment. As shown below, if Auto Program Routes is enabled, the firewall routes are programmed for you.

2. In AKS, tag your Resource Groups. The tags are name/value pairs.
   1. Select HomeResource groups and choose a resource group.
   2. Select Tags and define name/value pairs. As shown in the following figure, the tag names must be inboundgrouprg and HubRG:
      • inboundgrouprg—your spoke resource group name
      • HubRG—your hub resource group name

      The template takes the name of the Spoke resource group as a parameter, and tags the VNet and AKS cluster with the Spoke resource group name so that it can be discovered by the Panorama plugin for Azure.
   The templates deploy resources in separate VNets. If you manually deploy the AKS cluster and service in the same VNet as the Spoke firewall set, you must manually create tags for the spoke resource group name.
3. In Panorama, select PanoramaAzureSetup.
   1. On the General tab, enable monitoring.

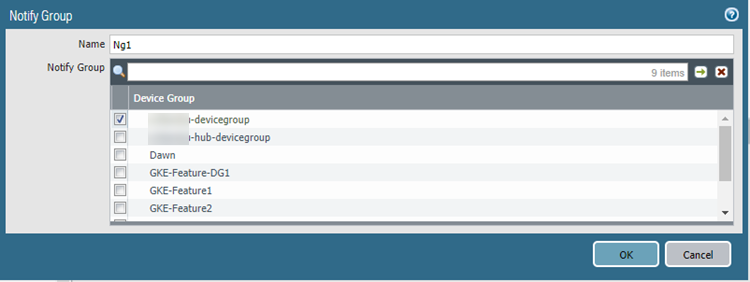

   2. On the Notify Groups tab, Add a notification group and select the device groups to be notified.

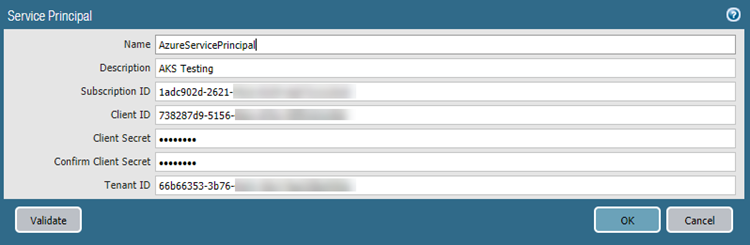

   3. On the Service Principal tab, Add and Validate a service principal.
      Use the Service Principal you created for the orchestrated deployment.

   4. On the AKS Cluster tab, Add an AKS cluster.
      • Enter the exact name of the AKS cluster.
      • Enter the API server address. To find the address in Azure, view your AKS service and select Overview.
      • Upload the AKS credential JSON file (see Create AKS Cluster Authentication).
   5. Fill in the remaining fields and Add one or more tags.
      If you have service names or tags that are not unique across namespaces, use the label selector to filter both a tag and a namespace so that you get a unique result.

4. Select PanoramaAzureMonitoring Definition

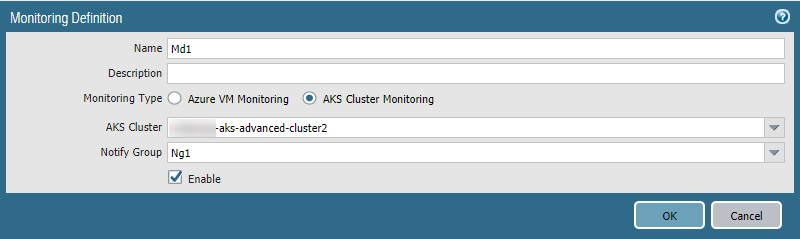

   1. Add a Monitoring definition.
   2. Enter a name and description, and select AKS Cluster Monitoring.
   3. Select an AKS Cluster and a Notify Group, check Enable, and click OK.

Set Up VNet Peering

Redirect Traffic to a Firewall ILB

1. Create URL routing rules that redirect web traffic to the appropriate backend pool.
2. Update the UDR rules for the application gateway subnet to add a route for the service CIDR, with the next hop being the Inbound Firewall Load Balancer from the Spoke firewall resource group.

Apply Policy to Relevant AKS Service

1. In Panorama, select Policies.
2. In the Device Group list, choose the device group for your AKS service.

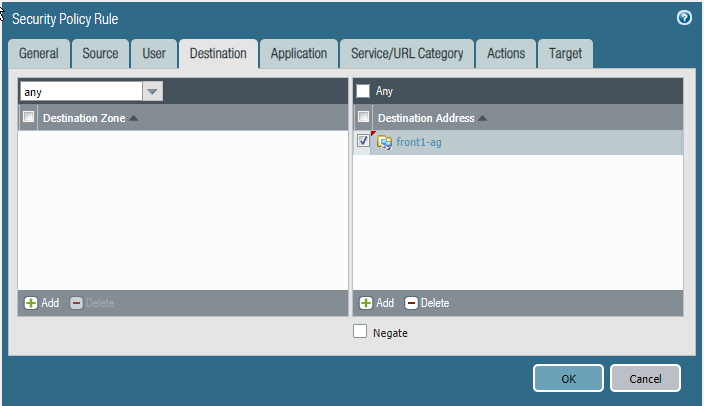

3. Add a Security Policy rule. Fill out the form, and on the Destination tab Add the destination address or address group.

Deploy and Secure AKS Services

1. In the application deployment environment, create a YAML file for the application or use a file that already exists. The following is a sample application YAML file:

   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: azure-vote-back
   spec:
     replicas: 1
     selector:
       matchLabels:
         app: azure-vote-back
     template:
       metadata:
         labels:
           app: azure-vote-back
       spec:
         containers:
         - name: azure-vote-back
           image: redis
           resources:
             requests:
               cpu: 100m
               memory: 128Mi
             limits:
               cpu: 250m
               memory: 256Mi
           ports:
           - containerPort: 6379
             name: redis
   ---
   apiVersion: v1
   kind: Service
   metadata:
     name: azure-vote-back
     labels:
       service: backend
   spec:
     ports:
     - port: 6379
     selector:
       app: azure-vote-back
   ---
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: azure-vote-front
   spec:
     replicas: 5
     selector:
       matchLabels:
         app: azure-vote-front
     template:
       metadata:
         labels:
           app: azure-vote-front
       spec:
         containers:
         - name: azure-vote-front
           image: microsoft/azure-vote-front:v1
           resources:
             requests:
               cpu: 100m
               memory: 128Mi
             limits:
               cpu: 250m
               memory: 256Mi
           ports:
           - containerPort: 80
           env:
           - name: REDIS
             value: "azure-vote-back"
   ---
   apiVersion: v1
   kind: Service
   metadata:
     name: azure-vote-front
     labels:
       service: "azure-vote-front"
       type: "production"
       providesecurity: "yes"
       a: "value"
       b: "value"
       c: "value"
       tier: "stagingapp"
     annotations:
       service.beta.kubernetes.io/azure-load-balancer-internal: "true"
   spec:
     type: LoadBalancer
     ports:
     - port: 80
     selector:
       app: azure-vote-front

2. Edit your YAML file to label Kubernetes services.
   Labels enable the corresponding tag-to-IP mapping to be created when you use the Panorama plugin for AKS to connect to the cluster. For example, in the above sample file look for the application labels in the service metadata. They are: azure-vote-back and azure-vote-front.
3. In your AKS cluster, apply the YAML file.

4. In Panorama, create an Address Group using a resource group tag.
   1. On the Objects tab, select a device group from the Device Group list.
   2. Select Address Groups and Add an Address Group.
      1. Specify a name, and select the Dynamic type.
      2. Add addresses. Adding spawns a window that lists detected addresses. Populating the list can take several minutes.
      3. You can choose one or more addresses for the Match Criteria. Select AND or OR for the criteria relationship.
      4. If you have many addresses, enter a string in the search box to filter the output, as shown in the following figure.
      5. In the address list, click the + to include the address in the address group match criteria.
      6. When the match criteria is complete, click OK.

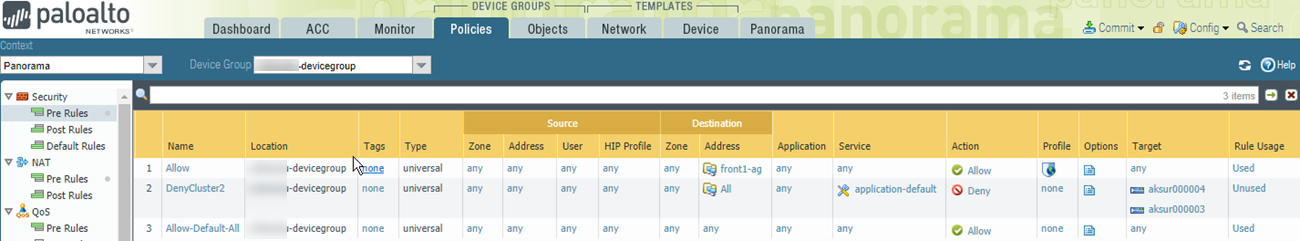

5. Show Policy using the address group.

6. View secured AKS services.

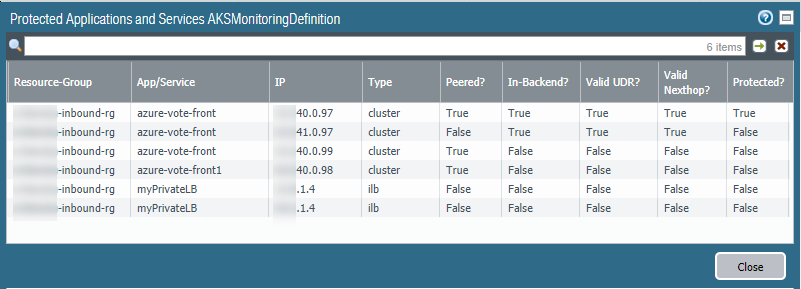

   In PanoramaAzureDeployments, view your monitoring definition, and in the Action column select the Protected Applications and Services link.

   The Protected? column summarizes the security status of your resource groups. It might take several minutes for the window to populate. If you have many resource groups, enter a string in the search box to filter the output.

   This output is based on the Azure resource group configuration; it does not query the device group or template stack membership.
