Configure Active/Passive HA on OCI
You can configure a pair of VM-Series firewalls
on OCI in an active/passive high availability (HA)
configuration. To ensure uptime in an HA setup on OCI, you must
create a secondary, floating IP addresses that can quickly move
from one peer to the other. When the active firewall goes down,
the floating IP address moves from the active to the passive firewall
so that the passive firewall can seamlessly secure traffic as soon
as it becomes the active peer. In addition to the floating IP address,
the HA peers also need HA links—a control link
(HA1) and a data link (HA2)—to synchronize data and maintain state
information.
VM-Series plugin 2.1.11 is required to deploy the VM-Series firewall for OCI as an HA pair in
FIPS mode.
![](/content/dam/techdocs/en_US/dita/_graphics/10-1/virtualization/oracle_cloud/oci-ha-deployment.png)
To
allow the firewalls to move the floating IP address upon failover,
you must place the firewall instances in a dynamic group on OCI.

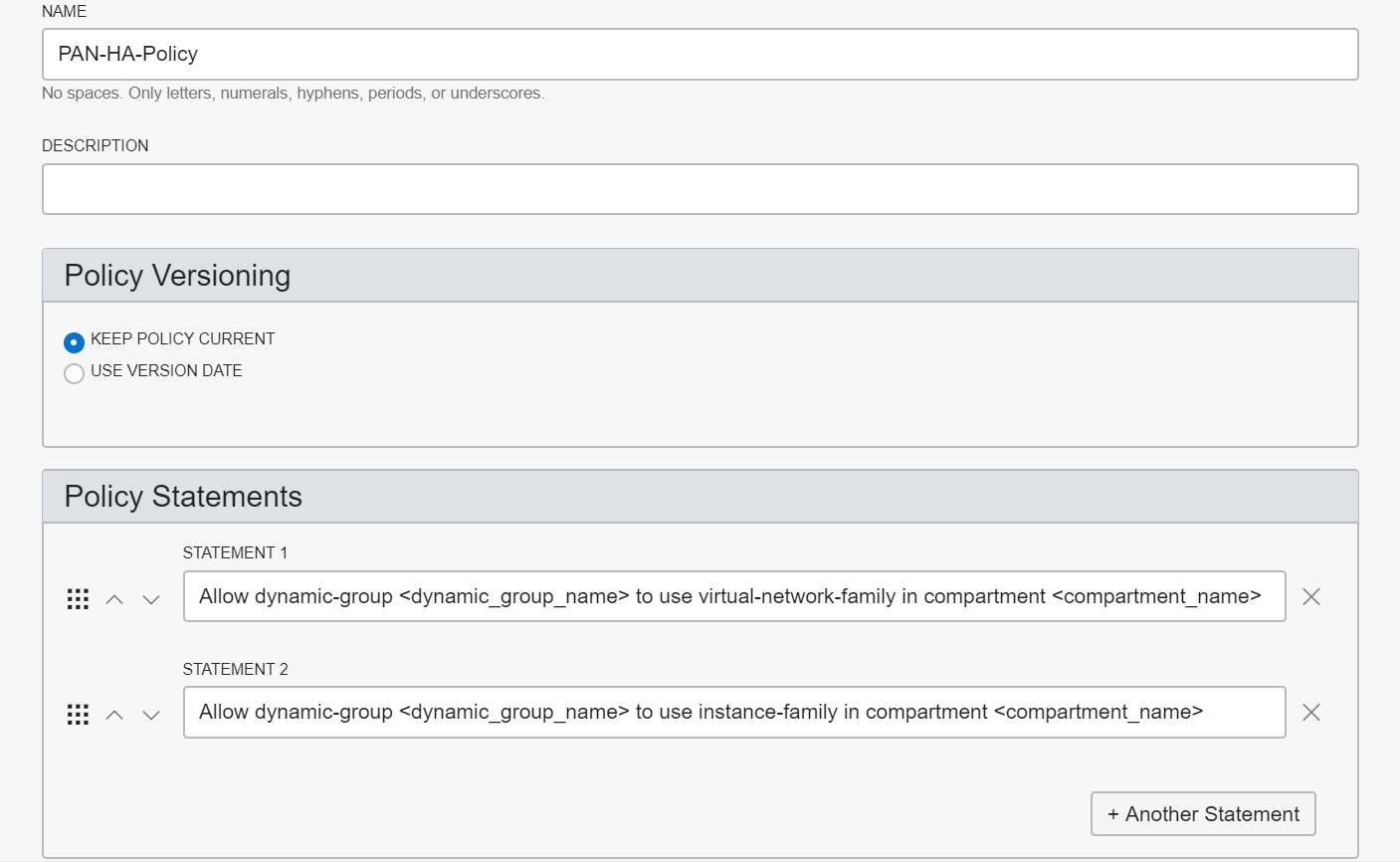

Dynamic groups allow you to group the firewall instances as principal
actors and create policy to allow the instances in the dynamic group

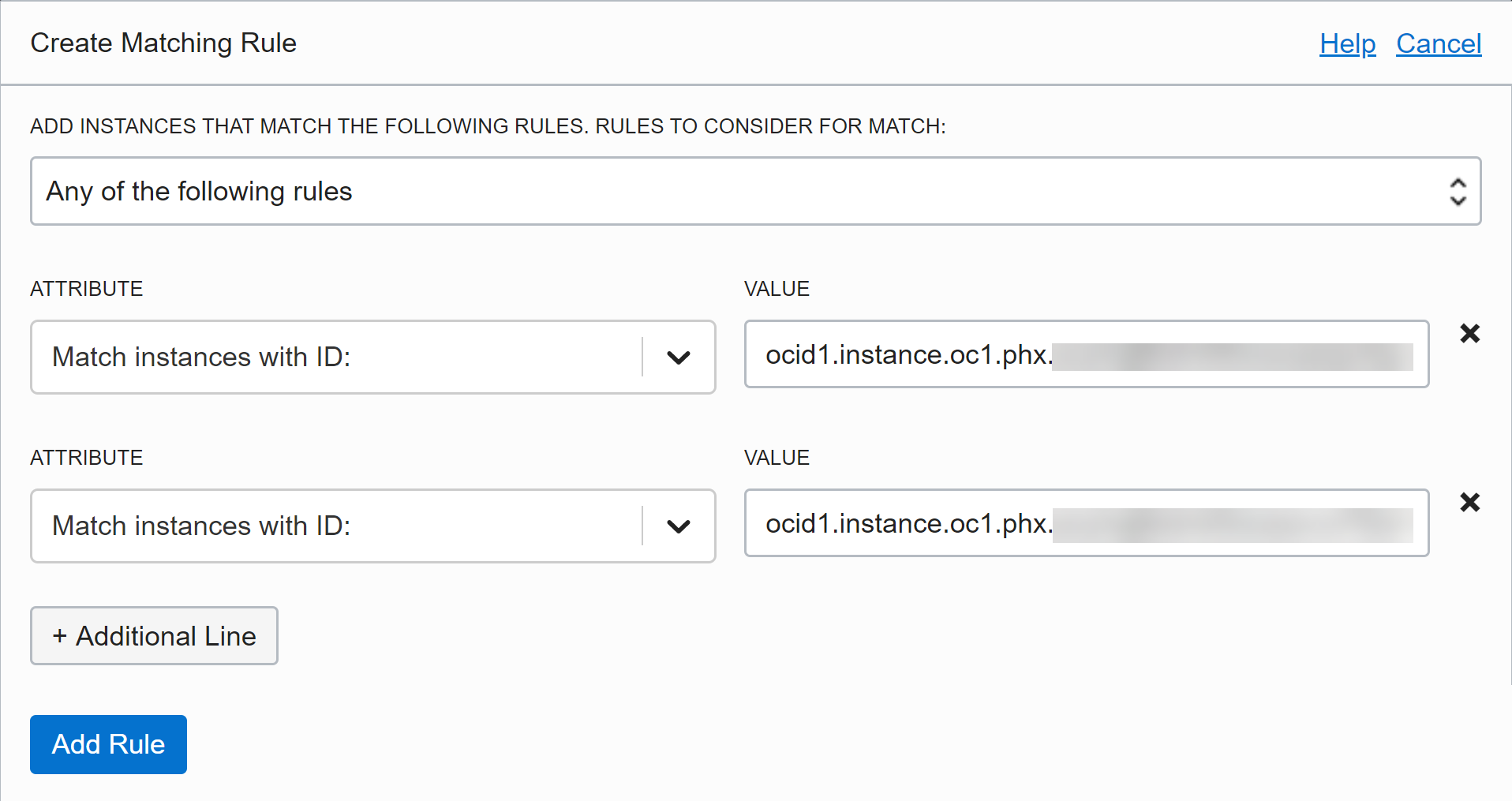

to make API calls against OCI services. You will use matching rules
to add the HA peer instances to the dynamic group and then create
the policy the floating IP from one VNIC to another.
Both
VM-Series firewalls in the HA pair must have the same number of
network interfaces. Each firewall requires a minimum of four interfaces—management,
untrust, trust, and HA. You can configure additional data interfaces
as required by your deployment.
- Management interface—the private and public IP addresses associated with the primary interface. You can use the private IP address on the management interface as the IP address for the HA1 interface between the peers. If you want a dedicated HA interface, you must attach an additional interface to each firewall, for a total of five interfaces each.
- Untrustandtrust interfaces—each of these data interfaces on the active HA peer require a primary and secondary IP address. Upon failover, when the passive HA peer transitions to the active state, the secondary private IP address is detached from the previously active peer and attached to the now active HA peer.
- HA2 interface—this interface has a single private IP address on each HA peer. The HA2 interface is the data link peers use to synchronize sessions, forwarding tables, IPsec security associations, and ARP tables.
- Deploy the VM-Series Firewall From the Oracle Cloud Marketplace and set up the network interfaces for HA.
- (Optional) Configure a dedicated HA1 interface on each HA peer.
- From the OCI Console, selectand click on the name of your active peer instance.ComputeInstances
- SelectAttached VNICsand clickCreate VNIC.
- Enter a descriptive name for your HA1 interface.
- Select the VCN and subnet.
- Enter a private IP address.
- ClickCreate VNIC.
- Repeat this process on your passive peer instance.

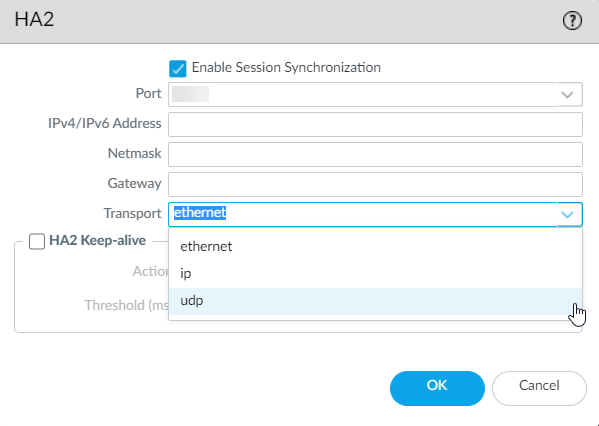

- Configure an HA2 interface on each HA peer.
- From the OCI Console, selectand click on the name of your active peer instance.ComputeInstances
- SelectAttached VNICsand clickCreate VNIC.
- Enter a descriptive name for your HA2 interface.
- Select the VCN and subnet. The HA2 interface should be on a separate subnet from your data interfaces.
- Enter a private IP address.
- ClickCreate VNIC.
- Repeat this process on your passive peer instance.
- Add a secondary IP address to your dataplane interfaces on the active peer.
- From the OCI Console, selectand click on the name of your active peer instance.ComputeInstances
- SelectAttached VNICsand click on your untrust VNIC.
- SelectIP Addressesand clickAssign Private IP Address.
- Enter the IP address and clickAssign.
- Repeat this procedure for each dataplane interface on your active peer.

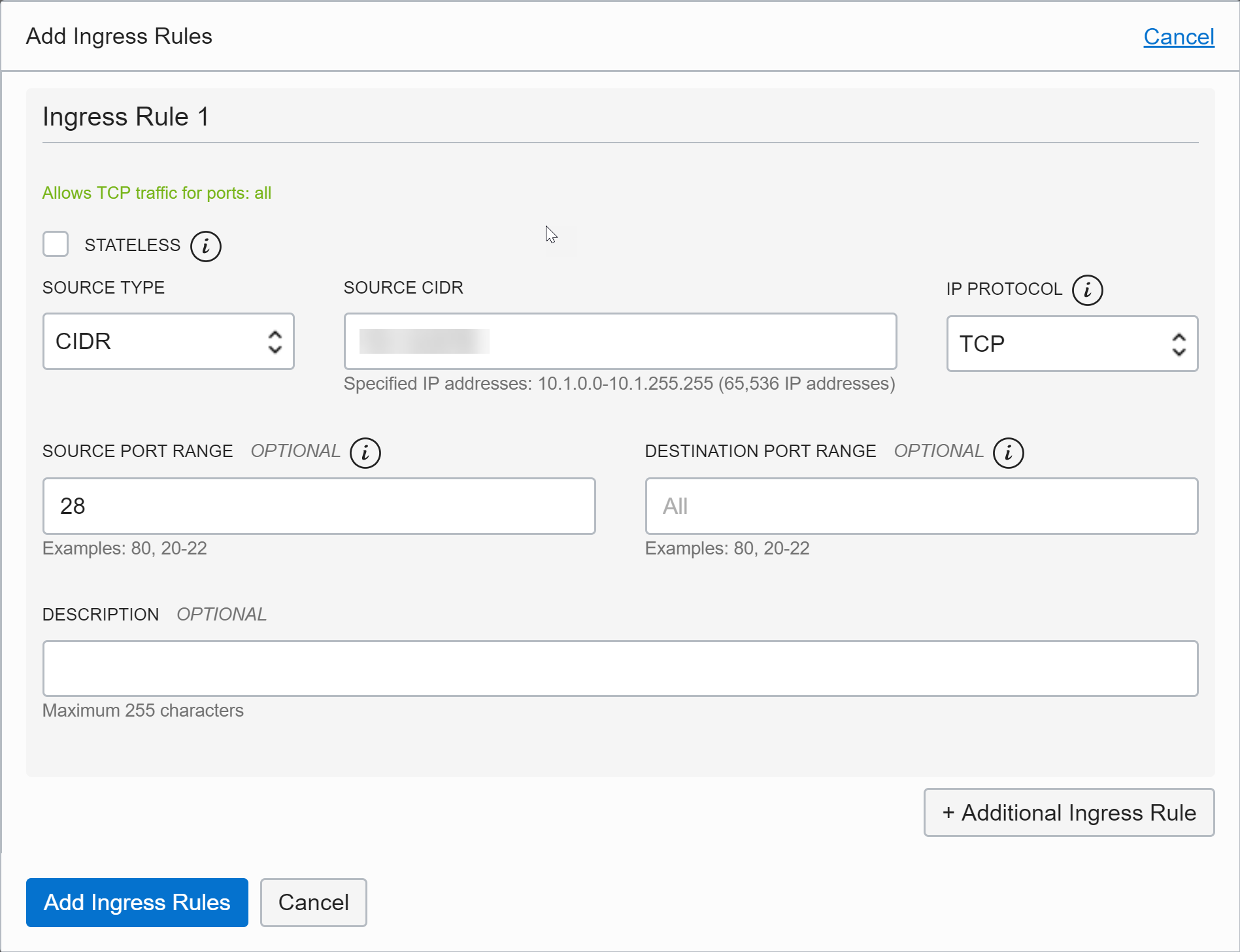

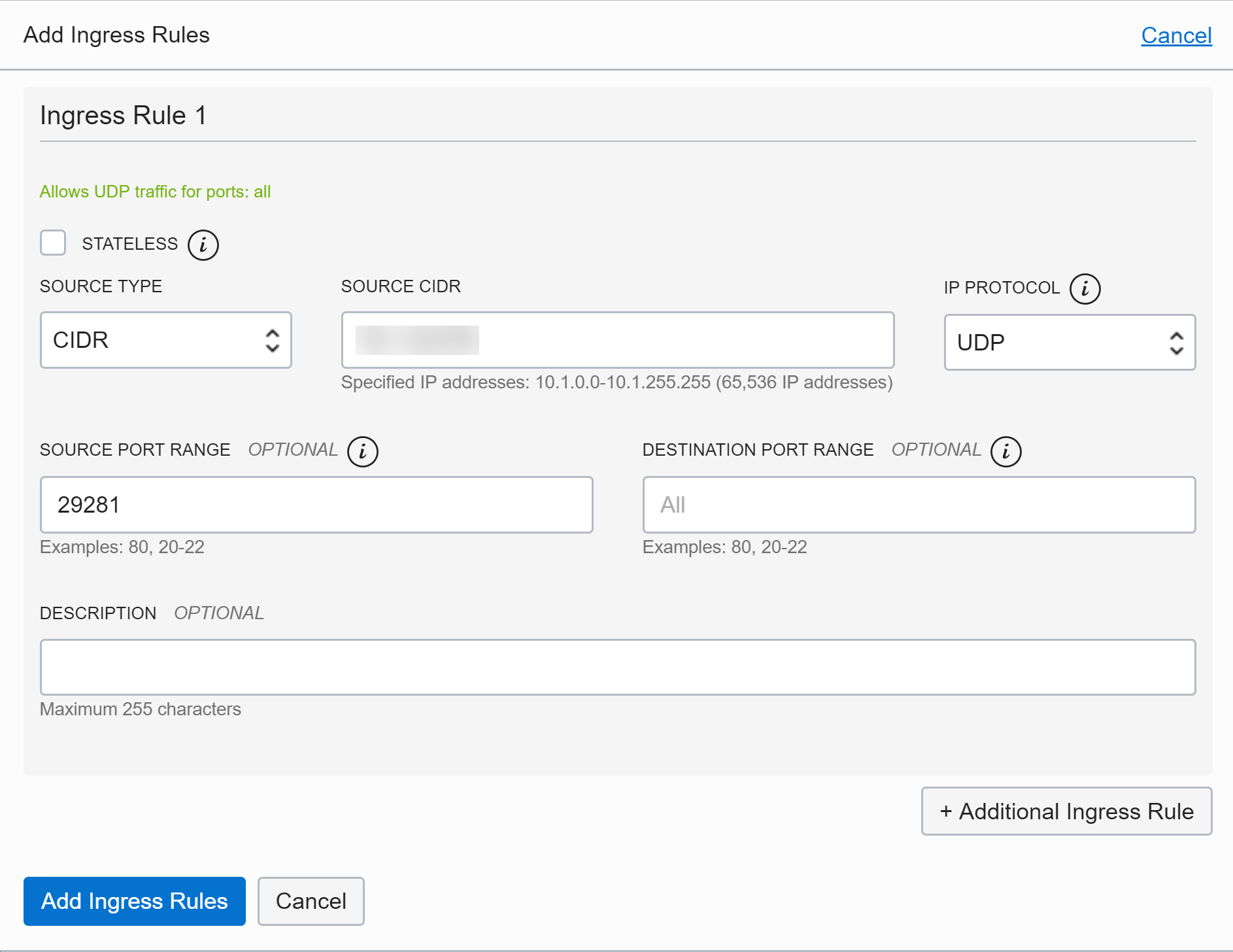

- Create security rules to allow the HA peers to synchronize data and maintain state information. By default, OCI allows ICMP traffic only. You must open the necessary HA ports.
- Open the ports for your HA1 interface.
- From the OCI Console, selectand select your VCN.NetworkingVirtual Cloud Networks
- SelectSubnetsand select the subnet containing your HA1 interface.
- SelectSecurity Listsand click the default security list to edit it.
- ClickAdd Ingress Rule.
- Enter theSource CIDRthat includes the HA peer HA1 port IP address.
- SelectTCPfrom theIP Protocoldrop-down.
- Click+Additional Ingress Rule. You need to create two additional rules for TCP ports 28260 and 28769.
- If encryption is enabled on your VM-Series firewall for the HA1 link, create an additional rules for ICMP and TCP port 28.
- ClickAdd Ingress Rules.
- Open the ports for your HA2 interface.
- From the OCI Console, selectand select your VCN.NetworkingVirtual Cloud Networks
- SelectSubnetsand select the subnet containing your HA2 interface.
- SelectSecurity Listsand click the default security list to edit it.
- ClickAdd Ingress Rule.
- Enter theSource CIDRthat includes the HA peer HA2 port IP address.
- SelectUDPorIPfrom theIP Protocoldrop-down.
- If the transport mode is UDP, enter29281intoSource Port Name. If the transport mode is IP, enter99intoSource Port Name.
- ClickAdd Ingress Rules.
- Add both HA peers to a dynamic group and create policy that allows the HA peers to move the floating IP address. You must have the OCID of each HA peer instance to build the dynamic group matching rules, so have those on hand to past into the rule builder.
- Create the dynamic group.
- From the OCI Console, select.IdentityDynamic GroupsCreate Dynamic Group
- Enter a descriptiveNamefor your dynamic group.
- ClickRule Builder.
- SelectAny of the following rulesfrom the first drop-down.
- SelectMatch instances with ID:from theAttributesdrop-down and paste one of the peer OCIDs into theValuefield.
- Click+Additional Line.
- SelectMatch instances with ID:from theAttributesdrop-down and paste the other peer OCID into theValuefield.
- ClickAdd Rule.
- ClickCreate Dynamic Group.
- Create the policy rule.
- From the OCI Console, select.IdentityPoliciesCreate Policy
- Enter a descriptiveNamefor your policy.
- Enter the first policy statement.Allow dynamic-group <dynamic_group_name> to use virtual-network-family in compartment <compartment_name>
- Click+Another Statement.
- Enter the second policy statement.Allow dynamic-group <dynamic_group_name> to use instance-family in compartment <compartment_name>
- ClickCreate.
- Configure the interfaces on the firewall. You must configure the HA2 data link and at least two Layer 3 interfaces for your untrust and trust interfaces. Complete this workflow on the first HA peer and then repeat the steps on the second HA peer.
- Log in to the firewall web interface.
- (Optional) If you are using the management interface as HA1, you must set the interface IP Type to static and configure a DNS server.
- Select.DeviceSetupInterfacesManagement
- Set theIP TypetoStatic.
- Enter the privateIP addressof the primary VNIC of your VM-Series firewall instance.
- ClickOK.
- Select.DeviceSetupServices
- ClickEdit.
- Enter the IP address of thePrimary DNS Server.
- ClickOK.
- Commityour changes.
- Selectand click on your untrust interface. In this example, the HA2 interface is 1/1, the trust interface is ethernet 1/2, and the untrust interface is ethernet 1/3.NetworkInterfacesEthernet
- Click the link forethernet 1/1and configure as follows:
- Interface Type:HA
- Click the link forethernet 1/2and configure as follows:
- Interface Type:Layer3
- On theConfigtab, assign the interface to the default router.
- On theConfigtab, expand theSecurity Zonedrop-down and selectNew Zone. Define a new zone, for example trust-zone, and then clickOK.
- On theIPv4tab, select eitherStatic.
- ClickAddin the IP section and enter the primary IP address and network mask for the interface. Make sure that the IP address matches the IP address that you assigned to the corresponding subnet in VCN. For example, if you add this interface to your trust zone, make sure you assign the trust vNIC IP address configured in your VCN.
- ClickAddin the IP section and enter the secondary, floating IP address and network mask.
- Click the link forethernet 1/3and configure as follows:
- Interface Type:Layer3
- On theConfigtab, assign the interface to the default router.
- On theConfigtab, expand theSecurity Zonedrop-down and selectNew Zone. Define a new zone, for example untrust-zone, and then clickOK.
- On theIPv4tab, select eitherStatic.
- ClickAddin the IP section and enter the primary IP address and network mask for the interface. Make sure that the IP address matches the IP address that you assigned to the corresponding subnet in VCN. For example, if you add this interface to your untrust zone, make sure you assign the untrust vNIC IP address configured in your VCN.
- ClickAddin the IP section and enter the secondary, floating IP address and network mask.
- Enable HA.
- Select.DeviceHigh AvailabilityGeneral

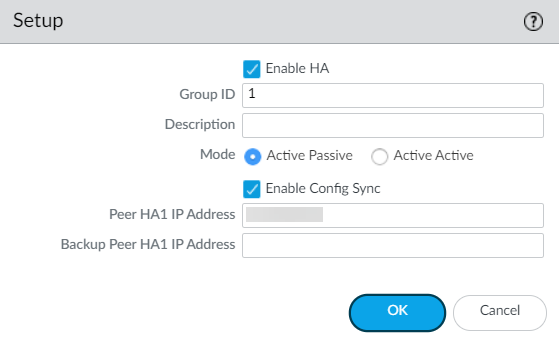

- Edit the Setup settings.
- Enter the private IP address of the passive peer in thePeer HA1 IP address field.
- ClickOK.
- (Optional) Edit the Control Link (HA1). If you do not plan to use the management interface for the control link and have added an additional interface (for example ethernet 1/4), edit this section to select the interface to use for HA1 communication.
- Edit the Data Link (HA2) to usePortethernet 1/1 and add the IP address of active peer and theGatewayIP address for the subnet.
- SelectIPorUDPfrom the Transport drop-down. Ethernet is not supported.
- ClickOK.
- Commityour changes.
- After your finish configuring HA on both firewalls, verify that the firewalls are paired in active/passive HA.
- Access theDashboardon both firewalls and view the High Availability widget.
- On the active HA peer, clickSync to peer.
- Confirm that the firewalls are paired and synced.
- On the passive firewall: the state of the local firewall should displayPassiveand theRunning Configshould show as Synchronized.
- On the active firewall: the state of the local firewall should displayActiveand theRunning Configshould show as Synchronized.
