Enable Azure Application Insights on the VM-Series Firewall

Publish firewall performance metrics to Application Insights.

The VM-Series firewall on Azure can publish custom PAN-OS metrics natively to Azure Workspace-based Application Insights that you can use to monitor the firewalls directly from the Azure portal. These metrics allow you to assess performance and usage patterns that you can use to set alarms and take action to automate events such as launching or terminating instances of the VM-Series firewalls. See Custom PAN-OS Metrics Published for Monitoring for a description on the metrics that are available.

Refer to the Azure documentation to learn how to migrate your classic Application Insights to the Workspace-based Application Insights.

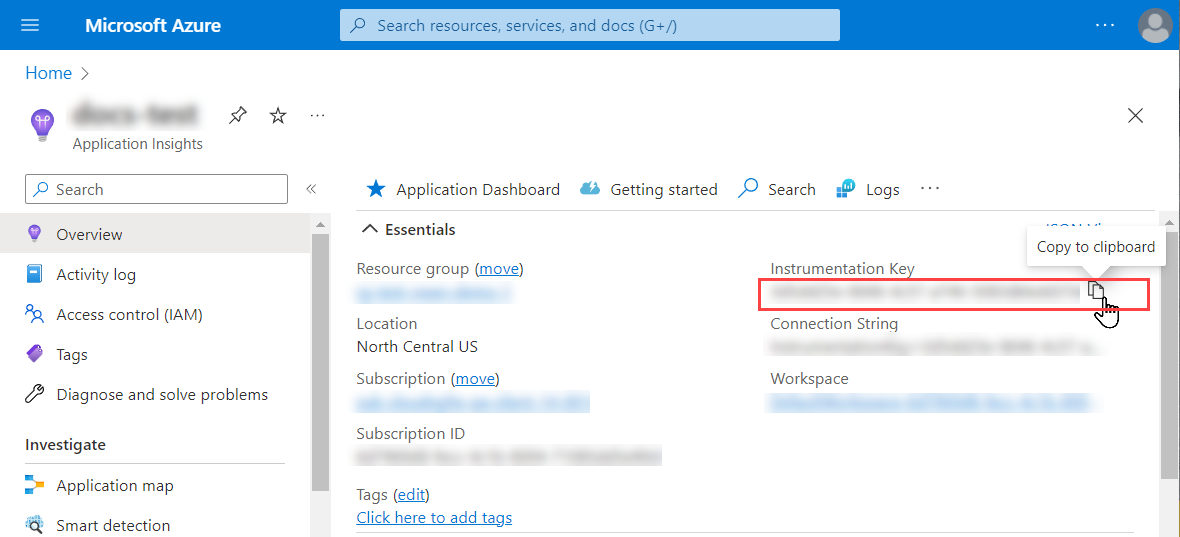

On the Azure portal, create your Workspace-based Application Insights to monitor the firewall and copy the Instrumentation Key from ConfigureProperties.

The firewall needs this key to authenticate to the Application Insights instance and publish metrics to it. See VM-Series on Azure Service Principal Permissions for the permissions required.
Enable the firewall to publish metrics to your Application Insights instance.
1. Log in to the VM-Series firewall on Azure.
2. Select DeviceVM-SeriesAzure.
3. Edit Azure Application Insights and enter the Instrumentation Key you copied earlier.
  The default interval for publishing metrics is five minutes. You can change this to vary from 1-60 minutes.
4. Commit your changes.
  The firewall generates a system log to it record the success or failure to authenticate to Azure Application Insights.
Verify that you can view the metrics on the Azure Application Insights dashboard.

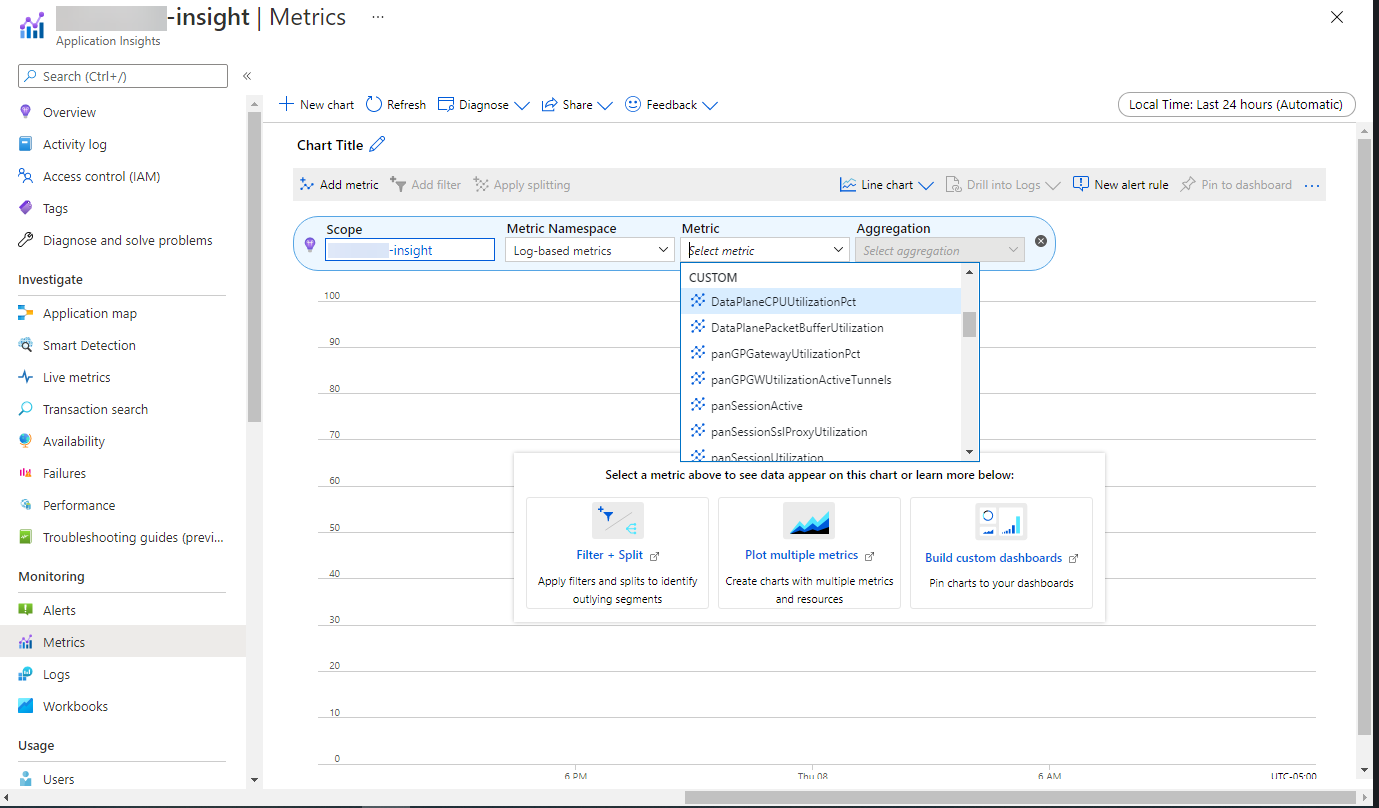

1. On the Azure portal, select the Application Insights instance, and select MonitoringMetrics to view the PAN-OS custom metrics.
2. Select the metric(s) that you want to monitor for trends and trigger alerts. Refer to the Microsoft Azure documentation for details on exploring metrics on Application Insights.

Migrate From Classic to Workspace-Based Application Insights

If you currently have classic Application Insights integrated with your VM-Series firewalls, you can use the following procedure to migrate your deployment to a workspace-based resource. For more information about migrating, visit the Azure documentation portal.

The migration process is permanent and cannot be reversed.

Check if your current Application Insights resource is classic or workspace-based.
1. Log in to the Azure portal.
2. Select Resource GroupsApplication InsightsProperties.
  If the Workspace field is empty, the Application Insights resource is classic. Continue with this procedure to migrate to a workspace-based resource.
Create a Log Analytics workspace.
1. From the Azure portal, select Log Analytics workspacesCreate.
2. Select the subscription and resource group associated with your current deployment.
3. Enter an instance name for your new Log Analytics workspace using the following format.
  <resource-group-name>-workspaces
4. Ensure that you select the region associated with your current deployment.
5. Complete the creation of your new Log Analytics workspace.
6. Return to your resource group you selected previously and verify that the new Log Analytics resource is present.
Migrate your classic Application Insights resource to workspace-based resource.
1. Select your classic Application Insights resource and then click Properties.
2. Click Migrate to Workspace-based.
3. On the Migrate to Workspace-based page, select the Log Analytics resource you created previously from the Log Analytics Workspace drop-down.
4. Click Apply.

  The migration process is permanent and cannot be reversed.
