PA-400 Series Back Panel

Learn about the PA-400 Series firewall back-panel components.
View the back panel components of your PA-400 Series firewall.

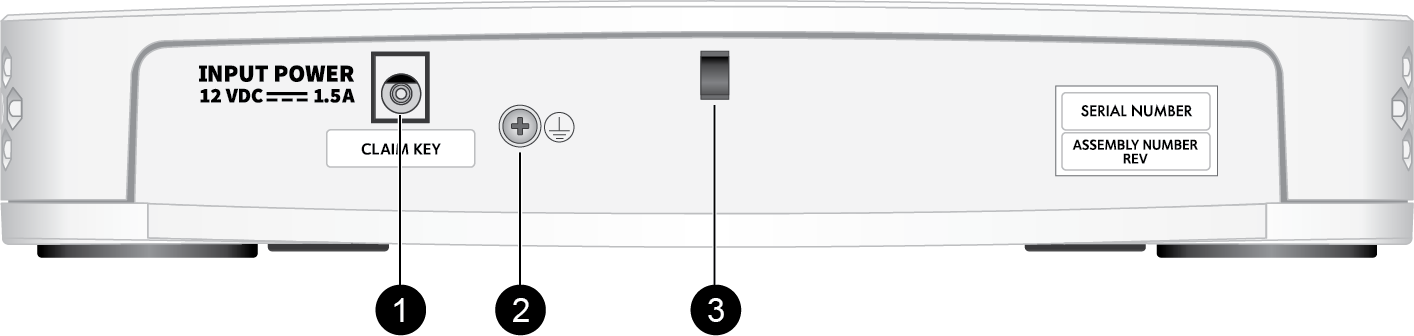

The following image shows the back panel of the PA-410 and the table describes each back panel component.
ItemComponentDescription
1
Power adapter input
Use the power input to connect power to the firewall. The PA-410 ships with one 25W power adapter.
Use only the PA-400 Series external power adapters provided by Palo Alto Networks.
2
Ground stud
Use the single post ground stud to connect the firewall to earth ground (ground cable not included).
3
Power Cord Retainer
Use the power cord retainer to secure the power cord.

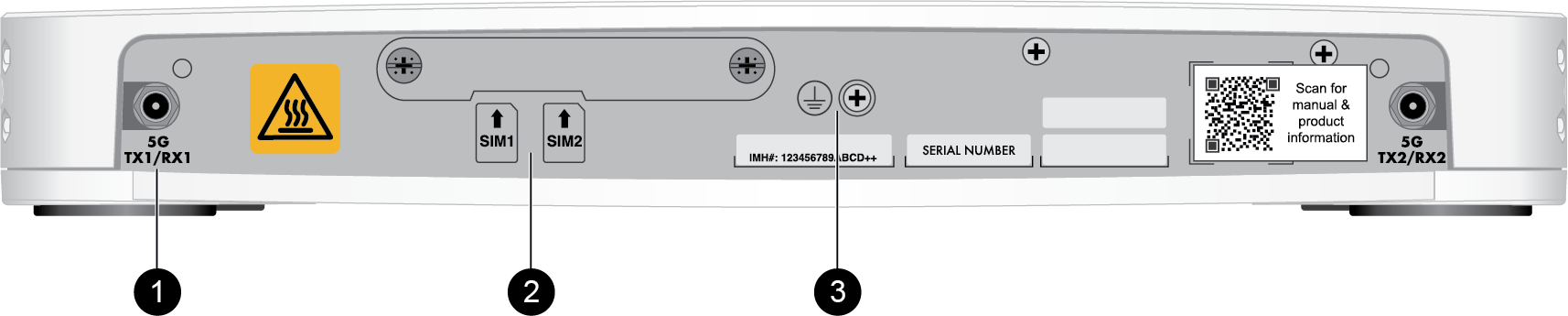

The following image shows the back panel of the PA-415-5G and the table describes each back panel component.
ItemComponentDescription
1
Antenna Connector
Four antenna connectors:
  • Main (TX1/RX1)
  • MIMO1 (TX2/RX2)
  • MIMO2 (RX3 GNSS L5)
  • AUX (RX4/GNSS L1)
Two antenna connectors are on the back panel of the device and two antenna connectors are on the PA-400 Series Front Panel.
2
SIM slots
Two SIM slots for cellular network connectivity.
3
Ground stud
Use the single post ground stud to connect the firewall to earth ground (ground cable not included).

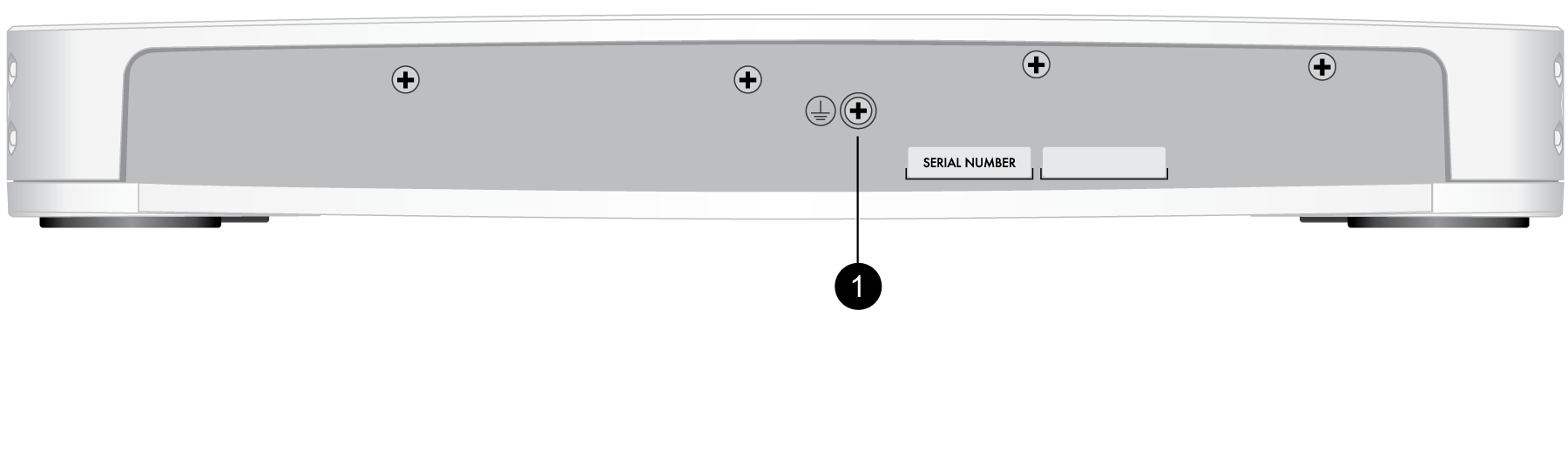

The back panels of the PA-415 and PA-445 firewalls are visually different but feature the same components. The following image shows the back panel of the PA-415 and the table describes each back panel component.
ItemComponentDescription
1
Ground stud
Use the single post ground stud to connect the firewall to earth ground (ground cable not included).

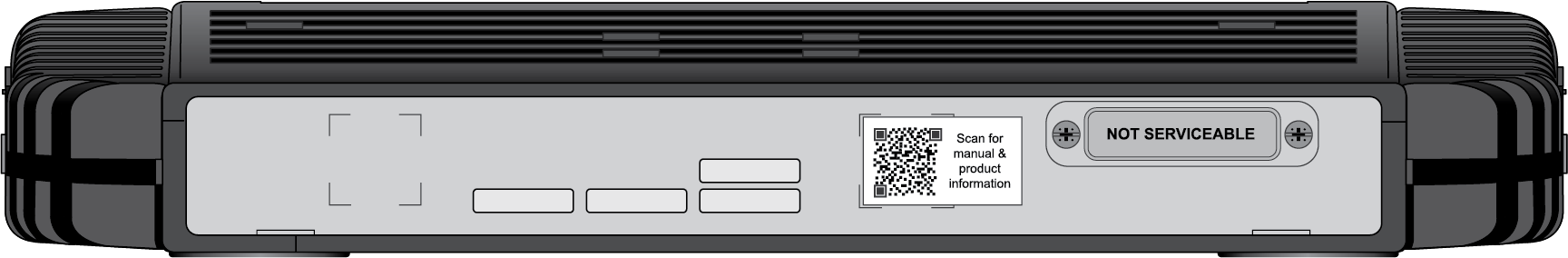

The following image shows the back panel of the PA-455. There are no serviceable components on the back panel.

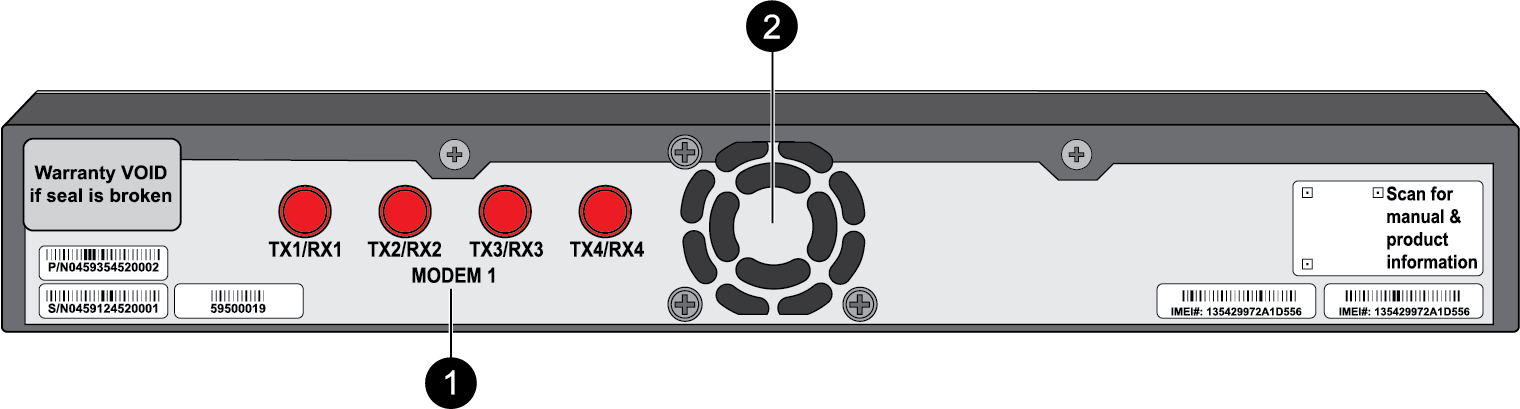

The following image shows the back panel of the PA-455-5G and the table describes each back panel component.
ItemComponentDescription
1
Antennas
Four antenna slots per modem that provide 5G connectivity to the device. The firewall does not ship with antennas.
2
Fan
A single dual-motor fan that provides cooling to the firewall.

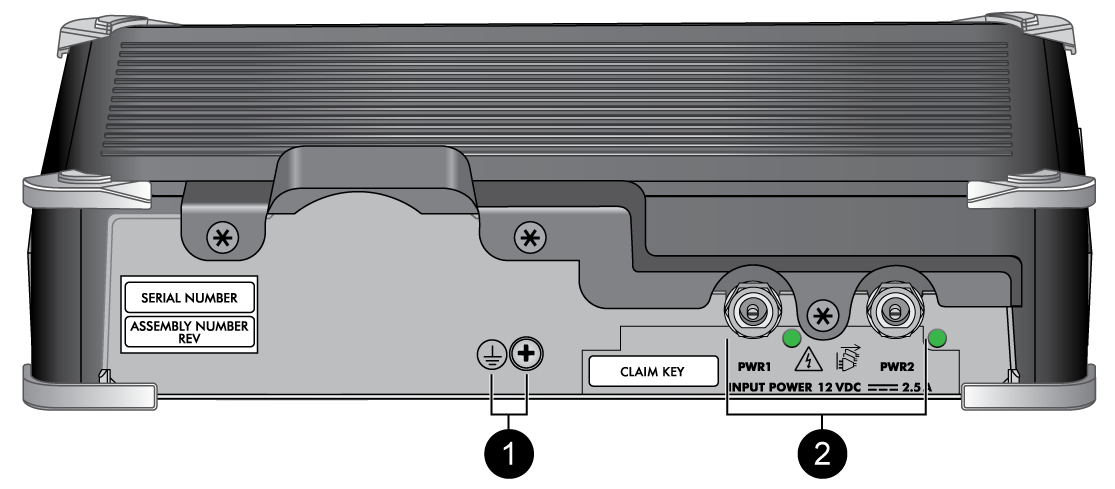

The back panels of the PA-440, PA-450, and PA-460 firewalls are identical. The following image shows the back panel of the PA-440 and the table describes each back panel component.
ItemComponentDescription
1
Ground stud
Use the single post ground stud to connect the firewall to earth ground (ground cable not included).
2
Power adapter inputs
(PWR 1 and PWR 2)
Use the power inputs to connect power to the firewall. The PA-440, PA-450, and PA-460 ship with one 50W power adapter. A second adapter can be used for redundancy.
Use only the PA-400 Series external power adapters provided by Palo Alto Networks.
To view system firmware versions for any of the PA-400 Series firewalls, use the following CLI command:
admin@PA-400> show system firmware
