Register the VM-Series Firewall with a CSSP Auth Code
To activate the license on your VM-Series
firewall, you must have deployed the VM-Series firewall and completed initial
configuration. As a CSSP partner, you can choose from the following
options to register a firewall:
- API—Use the Licensing API if you have a custom script or an orchestration service. With this option, the firewall does not need direct internet access.
- Bootstrap—Use this option to automatically configure the firewall and license it on first boot. See Bootstrap the VM-Series Firewall.
- Firewall web interface—You can Activate the License for the VM-Series Firewall (Standalone Version) using the firewall web interface. This workflow is valid for firewalls with or without internet access.
- Customer Support Portal—Use this option to manually register the firewall on the Palo Alto Networks Customer Support portal, as shown below.
- Log in to the Palo Alto Networks Customer Support website with your account credentials. If you need a new account, see Create a Support Account.
- Select CSSPOrder History, to view the list of auth codes registered to your support account.

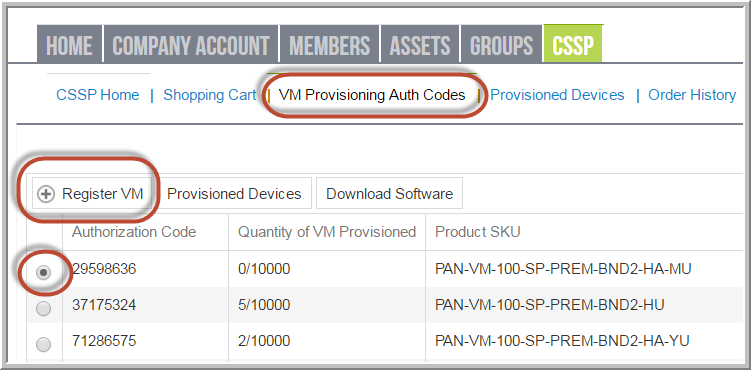

- Select CSSPVM
Provisioning Auth Codes, select an Authorization
Code and click Register VM.
![]()

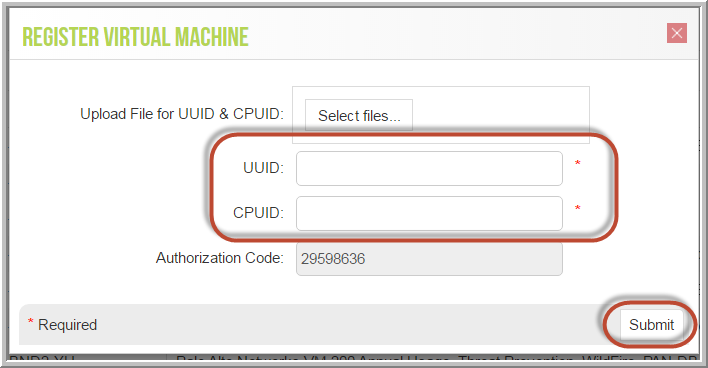

- Enter the UUID and CPUID of
the VM instance and click Submit. The portal
will generate a serial number for the firewall.
![]()
You can track the number of VM-Series firewalls that have been deployed and the number of licenses that are still available for use against each auth code. To view all the total number of firewalls registered against a specific auth code, select CSSPVM Provisioning Auth Codes, then select an Authorization Code and click Provisioned Devices.
