Create a VRF and Bridge Domain

A tenant requires a VRF for all bridge domains and subnets. In this example, you will create a single, common VRF for the firewall and endpoints. Then configure a dedicated bridge domain for your firewall and disable dataplane learning. Disabling dataplane learning is required to use Policy Based Redirect in a bridge domain.

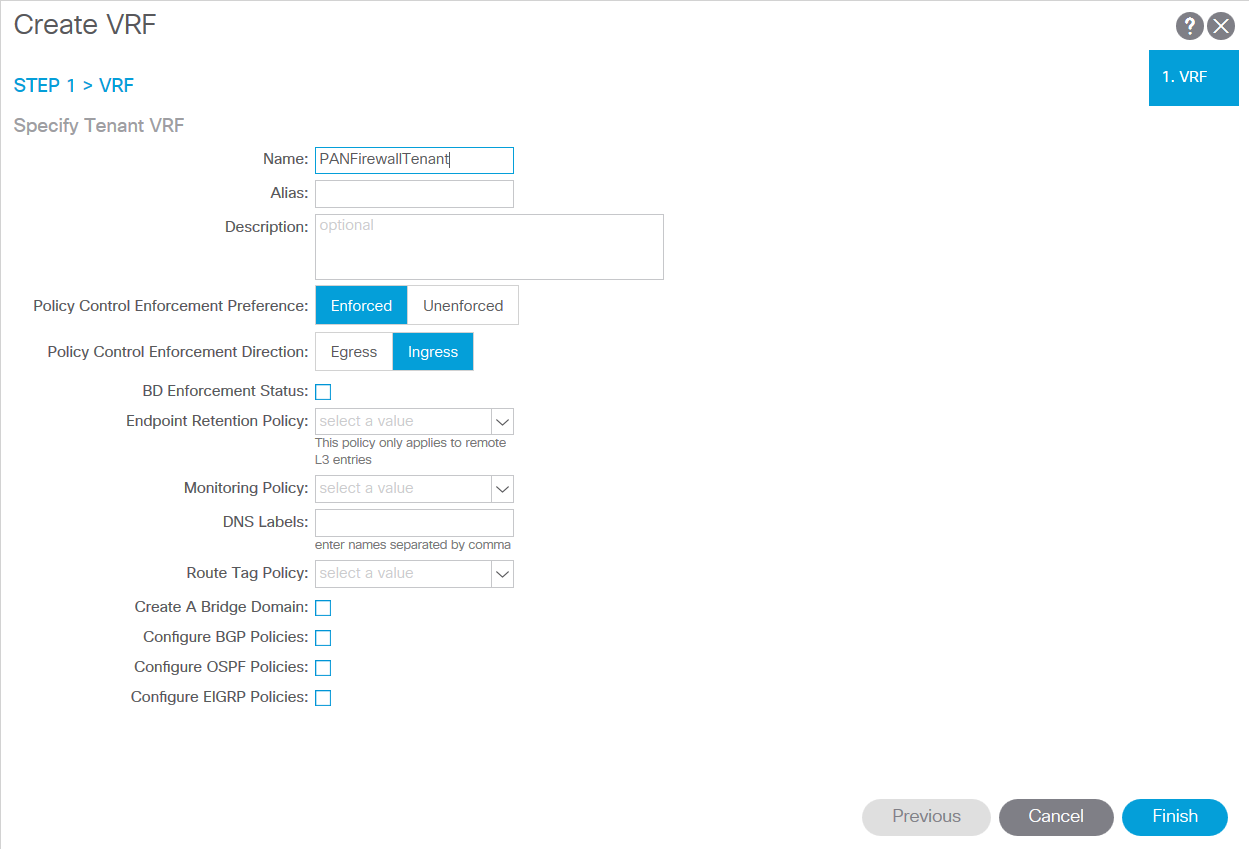

  1. Create a VRF.
    1. On the Tenants tab, double-click on the name of your tenant.
    2. Select NetworkingVRFs.
    3. Right-click VRFs and select Create VRF.
    4. Enter a descriptive Name for your VRF.
    5. Clear the Create A Bridge Domain check box.
    6. Click Finish.

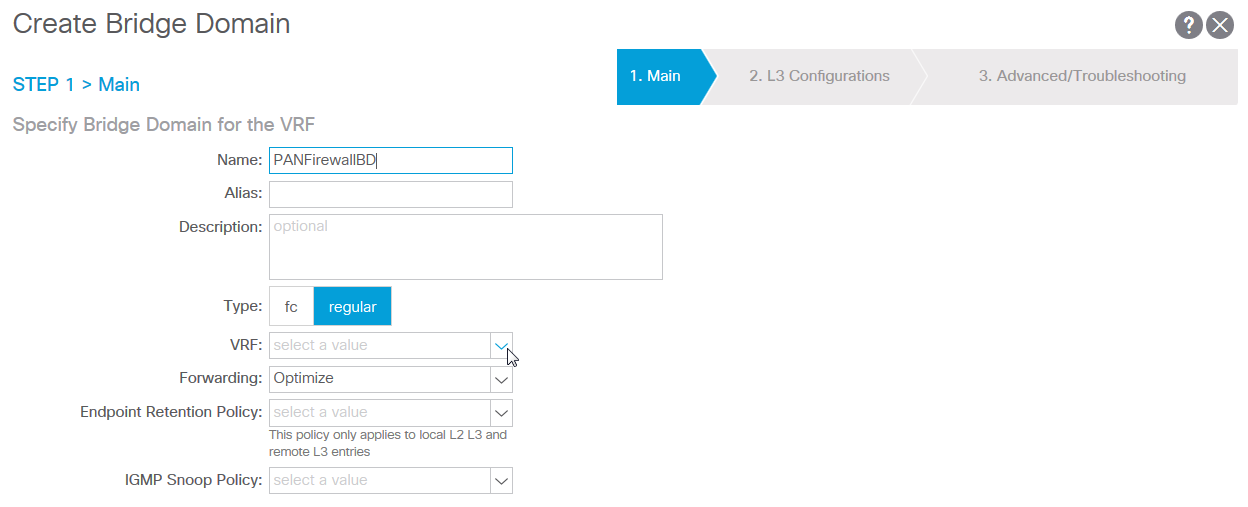

  2. Create a bridge domain for the firewall.
    1. On the Tenants tab, double-click on the name of your tenant.
    2. Select NetworkingBridge Domains.
    3. Right-click Bridge Domains and select Create Bridge Domain.
    4. Enter a descriptive Name for your bridge domain.
    5. Select the VRF you created in the previous procedure from the VRF drop-down.
    6. Click Next.
