Create Address Objects for the EPGs

Table of Contents
End-of-Life (EoL)
You must define address objects and map them to endpoint groups (EPGs) to be used in security policy. Address groups are the best way map security groups to a group of servers using an endpoint IP address range. Create one address object for each of your EPGs.

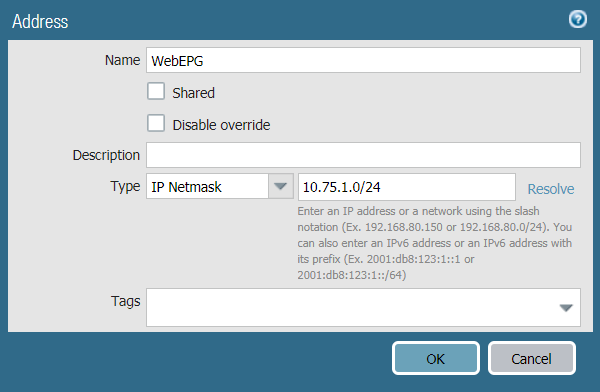

  1. Select ObjectsAddress and click Add.
  2. Enter a descriptive name for your address object.
  3. Select IP Netmask from the Type drop-down.
  4. Enter the IP Netmask.
  5. Click OK.
  6. Repeat this process for each EPG.
  7. Commit your changes.
