Secure an AKS Cluster

Learn how Panorama can secure inbound traffic to an AKS cluster.
To enable Panorama to connect to the load balancers in an Azure Kubernetes Services (AKS) cluster, you must enable the Azure plugin on Panorama to establish a connection with your AKS cluster. Then, you must configure the device groups and templates to which the firewalls belong so that Panorama can push configuration objects and policy rules to your managed firewalls.

Before You Begin

To secure AKS you must first deploy the Azure Auto Scaling solution available on GitHub.
To secure a web application running as a service within a Kubernetes cluster you must plan the VNets, subnets, and UDRs. VM-Series firewalls and Panorama provide you security and visibility of your Kubernetes services.

Use the Template to Deploy an AKS Cluster

The Azure AKS template is a sample that provisions a cluster in a new VNet.
  1. On GitHub, go to PaloAltoNetworks/azure-aks and locate the build package in the repository.
  2. Unzip the build package. Edit the files azuredeploy.json and parameters.json for your own deployment, and save.
  3. Issue the following Azure CLI commands to deploy the template.
    az group deployment validate --resource-group RG_NAME
    --template-file azuredeploy.json
    --parameters @parameters.json
    az group deployment create --name DEPLOYMENT_NAME
    --resource-group RG_NAME
    --template-file azuredeploy.json
    --parameters @parameters.json
  4. Deploy your applications or services on the AKS Cluster.
    1. Annotate your service YAML file so that the type is load balancer, and annotate it as service.beta.kubernetes.io/azure-load-balancer-internal: "true". For example:
      apiVersion: v1
      kind: Service
      metadata:
       name: azure-vote-front
       labels:
         service: "azure-vote-front"
         tier: "stagingapp"
       annotations:
         service.beta.kubernetes.io/azure-load-balancer-internal: "true"
      spec:
       type: LoadBalancer
       ports:
       - port: 80
       selector:
        app: azure-vote-front
    2. If you have not done so, create AKS cluster authentication before continuing.
    3. Deploy your service on your AKS cluster.
      For example, you can deploy your application through kubectl:
      kubectl apply -f myapplication.yaml
    4. Use kubectl to get the service IP for the deployed service.
      kubectl get services -o wide
      In the EXTERNAL-IP column 10.240.0.97 is for the ILB, according to your annotation in Step a. Use the service IP to create a user defined route on Azure.
  5. Create a UDR rule to point your service to the Firewall ILB behind the Application Gateway.

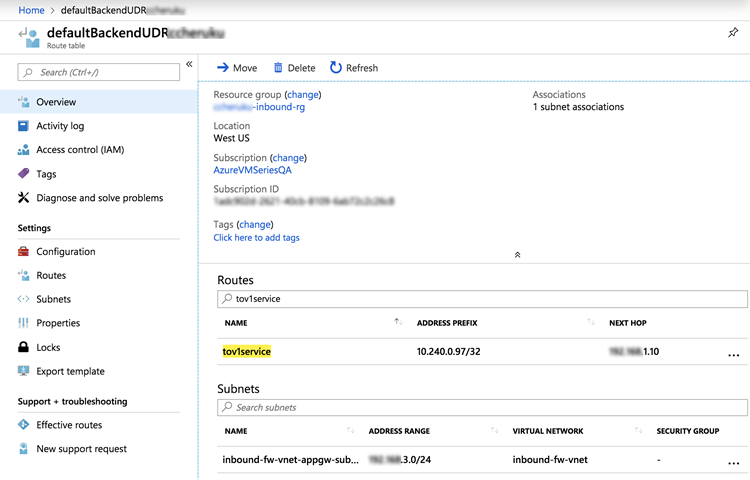

    In Azure, go to your inbound spoke resource group, view the route table and add a new route based on the destination service IP. In the following screen, the value in the tov1service ADDRESS PREFIX column is the service IP.

Connect the AKS Cluster in Azure Plugin for Panorama

This task assumes you have deployed the Auto Scaling solution, and that you have created templates, template stacks and device groups.
See the Panorama online help for more on filling out each form.

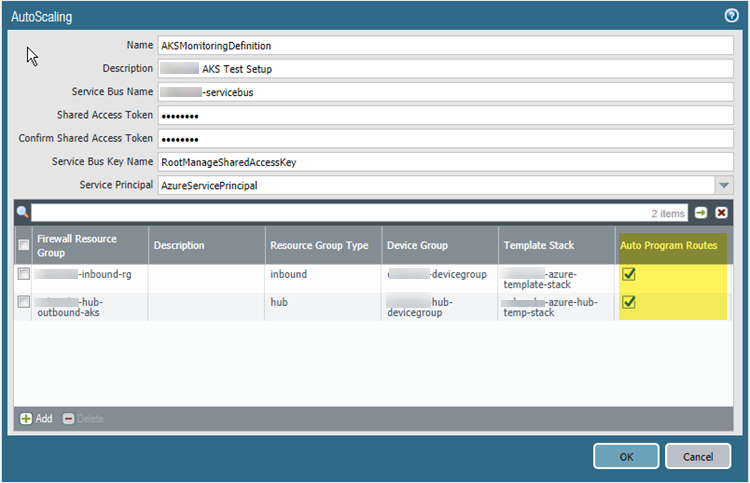

  1. Select PanoramaAzureAutoScaling to view the auto scaling definition you created when you configured Auto Scaling. As shown below, if Auto Program Routes is enabled, the firewall routes are programmed for you.
  2. In AKS, tag your Resource Groups. The tags are name/value pairs.
    1. Select HomeResource groups and choose a resource group.
    2. Select Tags and define name/value pairs. As shown in the following figure, the tag names must be inboundgrouprg and HubRG:
      • inboundgrouprg—your spoke resource group name
      • HubRG—your hub resource group name
      The template takes the name of the Spoke resource group as a parameter, and tags the VNet and AKS cluster with the Spoke resource group name so that it can be discovered by the Azure AutoScaling plugin for Panorama.
    The templates deploy resources in separate VNets. If you manually deploy the AKS cluster and service in the same VNet as the Spoke firewall set, you must manually create tags for the spoke resource group name.
  3. In Panorama, select PanoramaAzureSetup.
    1. On the General tab, enable monitoring.

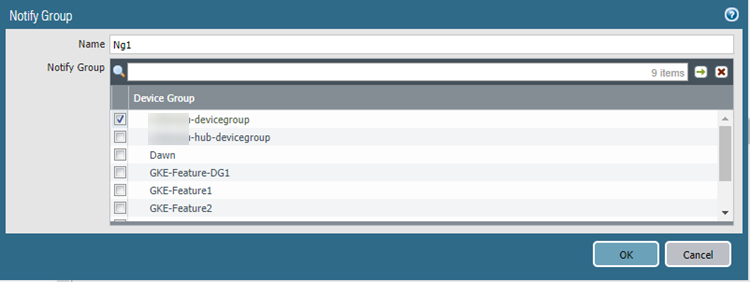

    2. On the Notify Groups tab, Add a notification group and select the device groups to be notified.

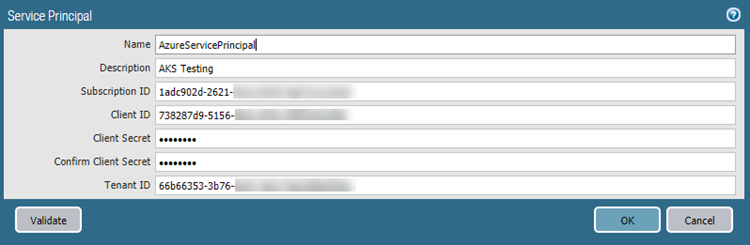

    3. On the Service Principal tab, Add and Validate a service principal.
      Use the Service Principal you created when you configured auto scaling.
    4. On the AKS Cluster tab, Add an AKS cluster.
      • Enter the exact name of the AKS cluster.
      • Enter the API server address. To find the address in Azure, view your AKS service and select Overview.
      • Upload the AKS credential JSON file (see Create AKS Cluster Authentication).
    5. Fill in the remaining fields and Add one or more tags.
      If you have service names or tags that are not unique across namespaces, use the label selector to filter both a tag and a namespace so that you get a unique result.
  4. Select PanoramaAzureMonitoring Definition

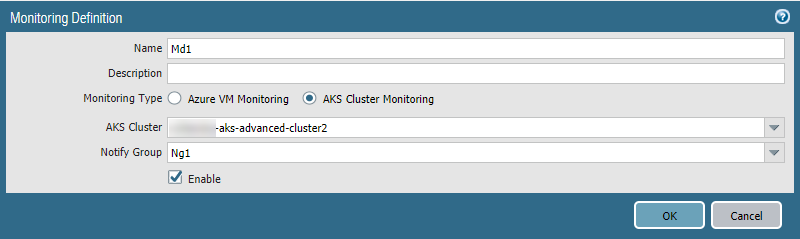

    1. Add a Monitoring definition.
    2. Enter a name and description, and select AKS Cluster Monitoring.
    3. Select an AKS Cluster and a Notify Group, check Enable, and click OK.

Set Up VNet Peering

If you plan to use an address group to identify traffic, be sure to add the subnet address group to your top-level Panorama plicy before you configure peering.
After deploying an AKS cluster, set up VNet Peering from the Inbound VNet to your cluster, and from your cluster to the Firewall VNet.

Redirect Traffic to a Firewall ILB

You must manually create user defined routes (UDRs) and routing rules to redirect traffic to a particular ILB. For an example, see how the diagram in “How Does the Panorama Plugin for Azure Secure Kubernetes Services?” depicts an inbound UDR.
  1. Create URL routing rules that redirect web traffic to the appropriate backend pool.
  2. Update the UDR rules for the application gateway subnet to add a route for the service CIDR, with the next hop being the Inbound Firewall Load Balancer from the Spoke firewall resource group.

Apply Policy to Relevant AKS Service

  1. In Panorama, select Policies.
  2. In the Device Group list, choose the device group for your AKS service.
  3. Add a Security Policy rule. Fill out the form, and on the Destination tab Add the destination address or address group.

Deploy and Secure AKS Services

These steps outline how you can secure inbound and outbound traffic traversing to Kubernetes services using VM-Series firewall and the Azure Plugin for Panorama.
  1. In the application deployment environment, create a YAML file for the application or use a file that already exists. The following is a sample application YAML file:
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: azure-vote-back
    spec:
      replicas: 1
      selector:
        matchLabels:
          app: azure-vote-back
      template:
        metadata:
          labels:
            app: azure-vote-back
        spec:
          containers:
          - name: azure-vote-back
            image: redis
            resources:
              requests:
                cpu: 100m
                memory: 128Mi
              limits:
                cpu: 250m
                memory: 256Mi
            ports:
            - containerPort: 6379
              name: redis
    ---
    apiVersion: v1
    kind: Service
    metadata:
      name: azure-vote-back
      labels:
        service: backend
    spec:
      ports:
      - port: 6379
      selector:
        app: azure-vote-back
    ---
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: azure-vote-front
    spec:
      replicas: 5
      selector:
        matchLabels:
          app: azure-vote-front
      template:
        metadata:
          labels:
            app: azure-vote-front
        spec:
          containers:
          - name: azure-vote-front
            image: microsoft/azure-vote-front:v1
            resources:
              requests:
                cpu: 100m
                memory: 128Mi
              limits:
                cpu: 250m
                memory: 256Mi
            ports:
            - containerPort: 80
            env:
            - name: REDIS
              value: "azure-vote-back"
    ---apiVersion: v1
    kind: Service
    metadata:
      name: azure-vote-front
      labels:
        service: "azure-vote-front"
        type: "production"
        providesecurity: "yes"
        a: "value"
        b: "value"
        c: "value"
        tier: "stagingapp"
      annotations:
        service.beta.kubernetes.io/azure-load-balancer-internal: "true"
    spec:
      type: LoadBalancer
      ports:
      - port: 80
      selector:
        app: azure-vote-front
  2. Edit your YAML file to label Kubernetes services.
    Labels enable the corresponding tag-to-IP mapping to be created when you use the Panorama plugin for AKS to connect to the cluster. For example, in the above sample file look for the application labels in the service metadata. They are: azure-vote-back and azure-vote-front.
  3. In your AKS cluster, apply the YAML file.
  4. In Panorama, create an Address Group using a resource group tag.
    1. On the Objects tab, select a device group from the Device Group list.
    2. Select Address Groups and Add an Address Group.
      1. Specify a name, and select the Dynamic type.
      2. Add addresses. Adding spawns a window that lists detected addresses. Populating the list can take several minutes.
      3. You can choose one or more addresses for the Match Criteria. Select AND or OR for the criteria relationship.
      4. If you have many addresses, enter a string in the search box to filter the output, as shown in the following figure.
      5. In the address list, click the + to include the address in the address group match criteria.
      6. When the match criteria is complete, click OK.

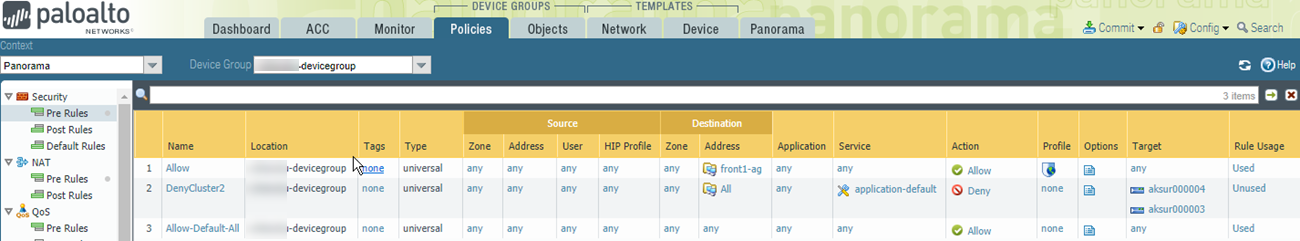

  5. Show Policy using the address group.
  6. View secured AKS services.

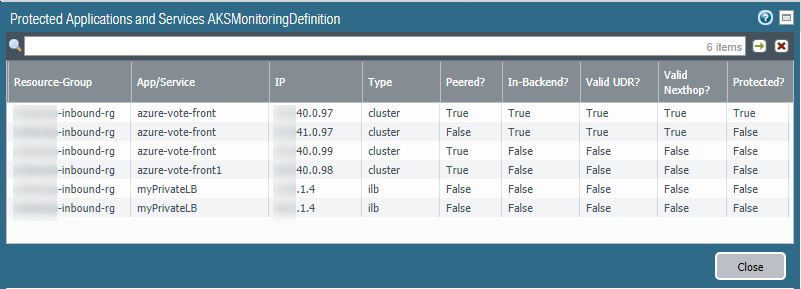

    In PanoramaAzureAutoScaling, view your monitoring definition, and in the Action column select the Protected Applications and Services link.
    The Protected? column summarizes the security status of your resource groups. It might take several minutes for the window to populate. If you have many resource groups, enter a string in the search box to filter the output.
    This output is based on the Azure resource group configuration; it does not query the device group or template stack membership.
