View the current list of logged-in Prisma Access mobile users and, optionally, log out current users.
There are several locations in Panorama where you can view the list of logged-in users. You can view unique users, the location in which the users are logged in, and tables that provide additional information. It is also important to understand how Prisma Access counts the number of users in each location.
You can get a detailed view of users from several locations:
  • To see an overall view of users and to open a table that allows you to view and log out logged-in users, select PanoramaCloud ServicesStatusStatus.
  • To see a graphic view of users in a map view, and to view users by region and location, select PanoramaCloud ServicesStatusService StatsMobile Users.
  • To learn how Prisma Access counts users in each of these areas, see How Prisma Access Counts Users.

View Mobile Users from the Status Tab

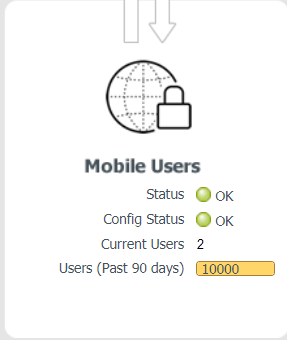

To view the total number of unique users who are currently logged in across all locations, select PanoramaCloud ServicesStatusStatus.
To view more details about the users who are currently logged in, click the hyperlinked number next to Current Users to display the Current Users table.
The total number of users that display in the Status page, and the number that displays in the pop-up table, might be different; the number that displays in the table might be larger. See How Prisma Access Counts Users for details.
You can log out active users from the Current Users table; to do so, select the user and click Logout. Note that you might have to close and then re-open the screen to have Prisma Access remove the logged-out user from the Current Users page.
The following screen shows users who logged in with the GlobalProtect app and with Clientless VPN. The screen shows the users’ username, public IP, and last login time. If the user is logged in with the GlobalProtect app, it also shows their client OS, private IP address, and computer name.

View Mobile Users from the Monitor Tab

To view the number of unique users that are logged in per region, select PanoramaCloud ServicesStatusService StatsMobile Users.
To view details about locations in a region, click the region.
The number of users that displays in the global map view page and the number that displays in the table per region might be different; the number that displays in the table might be larger. See How Prisma Access Counts Users for details.

How Prisma Access Counts Users

The number of total users that display in the status areas might be different than the number that displays in the associated tables. The following section describes the differences.
  • Status tab (PanoramaCloud ServicesStatusStatus)—The number of users that displays in the main page, in the Mobile Users area, might be different than the number that displays in the table when you click the Current Users hyperlink. The number that displays in the Mobile Users area counts the number of unique users; the list of users in the Current Users table counts all users per login or connection. If a single user is logged in to more than one gateway or is connected with multiple devices, the number in the table might be larger.
    For example, a user user1 is logged into two gateways in the United Kingdom location; this condition might have occurred because Prisma Access automatically added gateways when a large number of users logged in to the same location. In this case, Prisma Access counts user1 once in the Mobile Users area, but twice in the Current Users table.
  • Monitor tab (PanoramaCloud ServicesStatusService StatsMobile Users)—The number of Users you see in the global map might be different than the number that displays in the table when you select a region. A user that is logged in to more than one gateway or is connected with multiple devices might show up multiple times in the table.

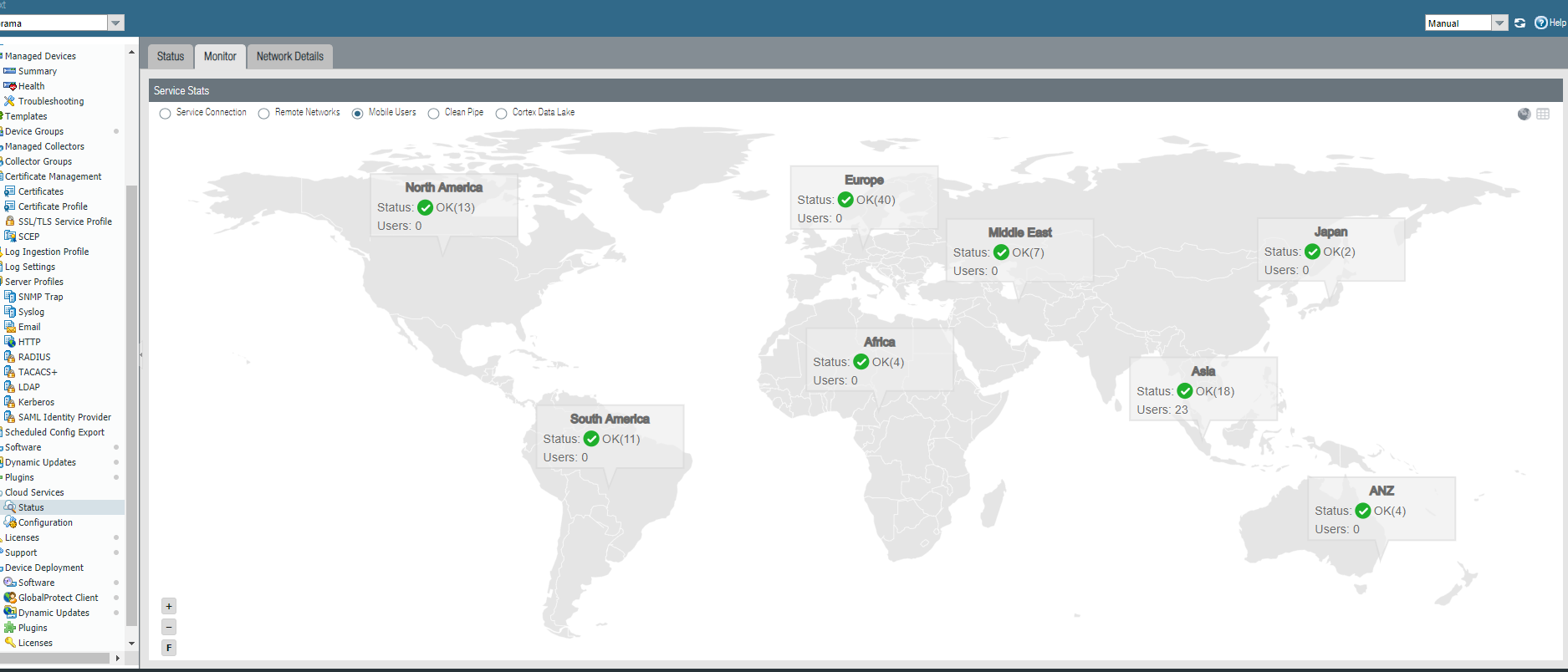

    The following screenshots provide an example. There are 23 unique users logged into the Asia region, as shown in the global map.
    If you select the Asia region, Prisma Access gives the number of unique users (23) on the top left of the region page. However, two users are connected via multiple devices in the South Korea location (for example, a smart phone and a computer). Because the users have two separate connections, Prisma Access counts them twice in the table, giving a total number count in the table of 25.
