Configure a Static Default Route

Configure a static default route to direct traffic from the Ethernet subinterfaces to the subnet router.
  1. Select NetworkVirtual Routers and click on the virtual router you created previously in this procedure.

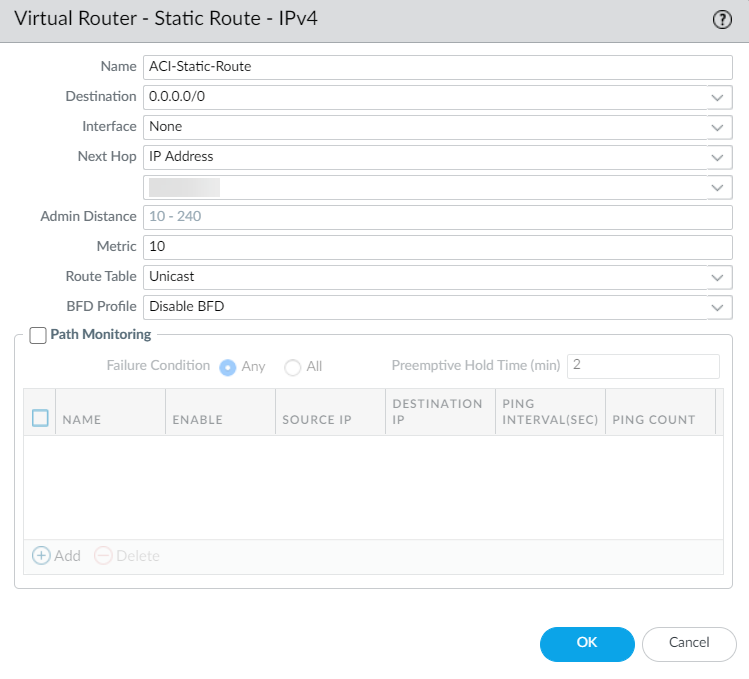

  2. Select Static RoutesIPv4 and click Add.
  3. Enter a descriptive Name.
  4. Enter 0.0.0.0/0 in the Destination field.
  5. From the Interface drop-down, select the aggregate Ethernet group you created previously in this procedure.
  6. Select IP Address from the Next Hop drop-down and enter the IP address of the next hop router.
  7. Click OK.
  8. Click OK again.
  9. Commit your changes.
